Plate Cutting Machine

Plate Cutting Machine
Supplier: Shanghai Yingxin World Machinery Co., Ltd.
Price: US $ 10000-20000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
Payments:
Paypal VISA master Discover union pay T/T
contact supplier Add to Cart

Product Specifications

Prod Model: QC12Y 6x2500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Cutting Thickness: 6mm-20mm
Max. Cutting Width: 2500mm-6000mm
Backgauge Range: 600-1000mm
Power: 380V/50Hz/3phase
Application: Machinery & Hardware
Automation: Semi-automatic
Type For Cutting Machine: Hydraulic Cutting Machine
Type: Shearing Machine

Product Description

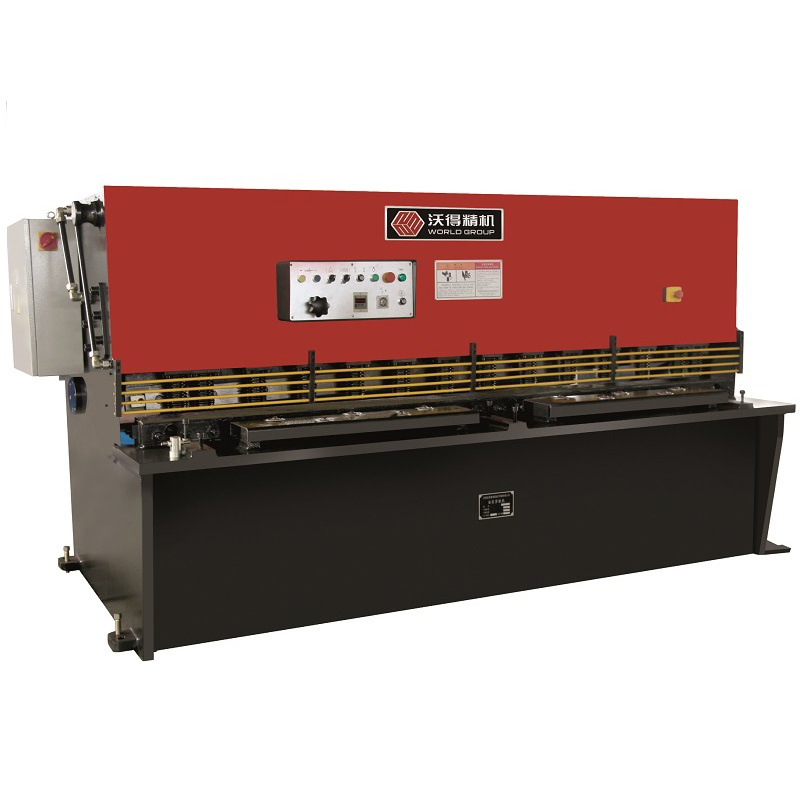

plate cutting machine

Features:

1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.

Details:

1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.
2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.
3-English control panel with counter, emergency stop button is equipped for safety.






Items
unit6x25006x32006x40008x25008x32008x4000
Max. cutting thicknessmm666888
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg1.51.51.51.51.51.5
Max. travel distance of backgaugemm600600600600600600
Main motorkW7.57.57.5111111
Overall dimension
( LxWxH)
mm313038404630320039004800
153016751850185018501950
160016201700185019001900
Weightkg520067008600700083009700
Itemsunit10x250010x320010x400012x250012x320012x4000
Max. cutting thicknessmm101010121212
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg1.51.51.51.51.51.5
Max. travel distance of backgaugemm600600600800800800
Main motorkW15151518.518.518.5
Overall dimension
( LxWxH)
mm320039004800322539254725
185018501950180018002000
185019001950194019402040
Weightkg70008300970086001080013200
Itemsunit16x250016x320016x400020x250020x320020x4000
Max. cutting thicknessmm161616202020
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg2222.52.52.5
Max. travel distance of backgaugemm800800800800800800
Main motorkW222222303737
Overall dimension
( LxWxH)
mm335040504850345042004900
200020502190228023002600
189021502250220023502400
Weightkg106001320017000135001820021000

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic power press, press brake and shear machines in China.

We can supply mechanical power press from 6.3Ton to 630Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
