Product Specifications
| Prod Model: |
XLB1500*1500*2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Total Pressure(Mn): |
8.0 |
| Plate Size(mm): |
1500*1500 |
| Daylight(mm): |
125 |
| Working Layer No.: |
2(4) |
| Piston Stroke(mm): |
250(500) |
| Plate Pressure(MPa): |
3.6 |
| Main Motor Power(Kw): |
11 |
| Overall Dimension(L*W*H)(mm): |
2600*1500*2600 |
| Weight(Kg): |
22000 |
| Type: |
General Rubber Machinery |
Product Description

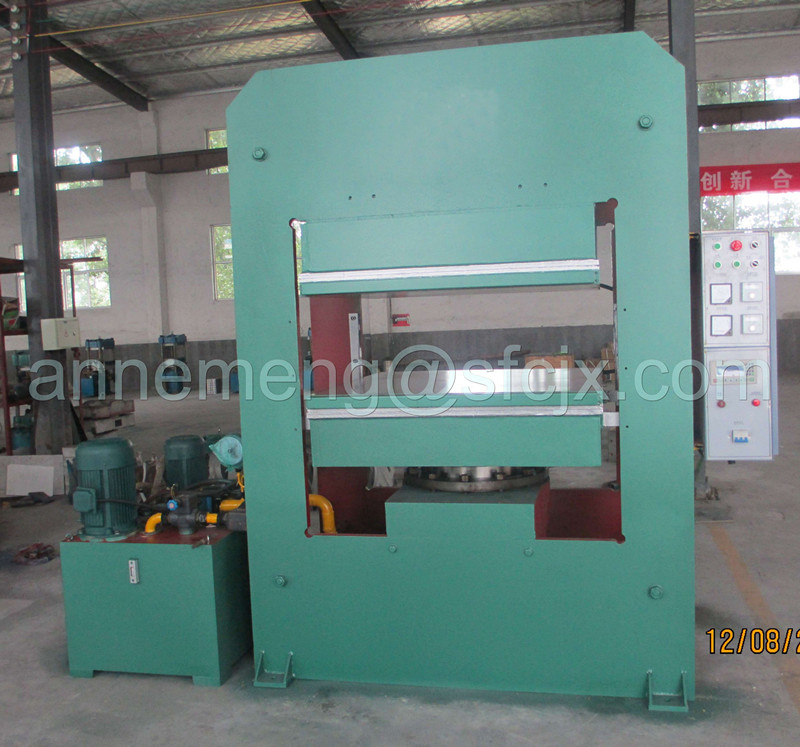

Plate Vulcanizing Machine, Vulcanizing Machine XLB1500*1500*2(4)
This vulcanizing machine is used for all kinds of vulcanizing mould,rubber and plastic mouldproducts,and non-mould products.
Being a column structure and downward pressing type,the heating plate opens by the self-weight of the heating plate,platform and plunger.The rising of the plunger makes the heating plate clsoe while the hydraulic oil provides the pressure.
This engine base is combined together with the cylinder and base frame,which is made of ductile iron to increase the cylinder intensity and brad ablility.The cylinder is fitted with the dealing washer made of the oil-resisting rubber for the dealing purpose.
By moving the operational handle of the control valve to the two different positions,the heating plate can open and close.
It uses the electric pipe for heating,thus makes the workshop clean with easy and reliable operation.
Note:
We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.
| Model | Total Pressure (MN) | Daylight (mm) | Working Layer | Piston Stroke (mm) | Main Motor Power (KW) | Overall Diameter (L x W x H) (mm) |
| XLB-350×350×2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200×580×1200 |
| XLB-400×400×2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400×500×1400 |
| XLB-600×600×2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880×820×1680 |
| XLB-750×850×4 | 1.60 | 125 | 4 | 500 | 3 | 1730×930×2460 |
| XLB-900×900×2 | 2.5 | 200 | 2 | 400 | 4 | 2345×960×1385 |
| XLB-1200×1200×1 | 3.15 | 300 | 1 | 300 | 4 | 2800×1300×2300 |
| XLB-1300×2000×1 | 5.60 | 400 | 1 | 400 | 8 | 2000×1860×2500 |
| XLB-1500×1500×1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200×2200×4300 |
| XLB-1500×2500×1 | 15.00 | 400 | 1 | 400 | 11 | 3000×2500×3300 |
| XLB-2000×2000×1 | 20.00 | 400 | 1 | 400 | 11 | 3600×3000×3300 |
Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
