Product Specifications
| Prod Model: |
PLC-320 |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Name: |
Sand Making Machine |
| Model: |
PLC-320 |
| Capacity: |
160-300t/H |
| Max Feed Size: |
60mm |
| Motor Power: |
264-320(Kw) |
| Place Of Origin: |
Yiwu, Zhejiang |
| Color: |
Red |
| Overall Dimensions: |
5600*2950*4000(Mm) |
| Rotor Speed: |
1200-2000(R/Min) |
| Weight: |
22000(Kg) |
Product Description

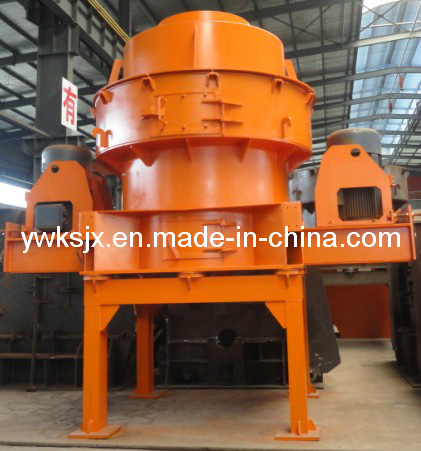

Production name: Sand making machine
Advantages:
1. Novel, resonable & simple structure, low cost.
2. High broken rate, energy saving.
3. Function of fine crushing and coarse milling.
4. Suit for hard & especially hard material.
5. The finished sand is fine cubic particles.
6. Convient to operation and maintain.
Introduction of the prodduct:
This product is widely applied for mine, fireproof material, artificial gravel and all kinds of metallurgical slag for fine crushing & coarse milling operation. It shows more excellent property than other types of crushers for meduim & especially hardness material, such as sic, diamond gravel, riverpebbles and quartz. This crusher is made of four cavities of feeding, materials dividing, crushing and discharging in general, also the parts of transmission and lubrication.
Working Principle:
Materials enter into the hopper through transportation equipment, then into impeller by feeding cavity, and evenly divided material from dividing cavity to guide plate (upper and lower retaining plate) in which the materials are throwed in high speed by centrifugal force. The other materials which are also from dividing cavity fall into the middle cavity in the shape of umbrella, striking and crushing together with the materials from impeller each other. At the same time, these 2 unit materials come into twice or more striking and crushing and squeezing each other, finally become the finished sand, because of the effect of inertia.
|
Model |
Max feed
size
(mm) |
Rotor Speed
(r/min) |
Capacity
(t/h) |
Motor
Power
(kw) |
Overall Dimensions
(mm) |
Weight
(kg) |
|
PLC-220 |
45 |
1300-2500 |
80-200 |
180-220 |
4660*2450*3660 |
16900 |
|
PLC-320 |
60 |
1200-2000 |
160-300 |
264-320 |
5600*2950*4000 |
22000 |
Yiwu B&W Mining Machinery Co., Ltd., founded in 1993, covers an area of 130000 square meters, professional produces full sets of crushing and screening equipments, and various wear resisting castings(material: High manganese, carbon steel, high-chromium iron).
The mining equipments include jaw crusher, impact crusher, cone crusher, sand making machine, vibrating screen, vibrating feeder, sand washing machine, belt conveyor, and so on.
The wear-resisting castings include jaw plate, toggle plate, hammer, blow bar, liner plate, cone parts and screen mesh. Most important is we can produce items according to customers' drawings or samples.
The products are widely used in mining, metallurgical, construction materials, road construction, airport tunnel, high speed railway construction industry, etc.
In addition to most cities of China, the products are sold to many foreign countries such as France, Central Africa, Gabon, Uganda, Congo, Nigeria, Outer Mongolia, Vietnam and Bangladesh.
Warmly welcome all customers from home and abroad to visit our company, for friendship and cooperation.
