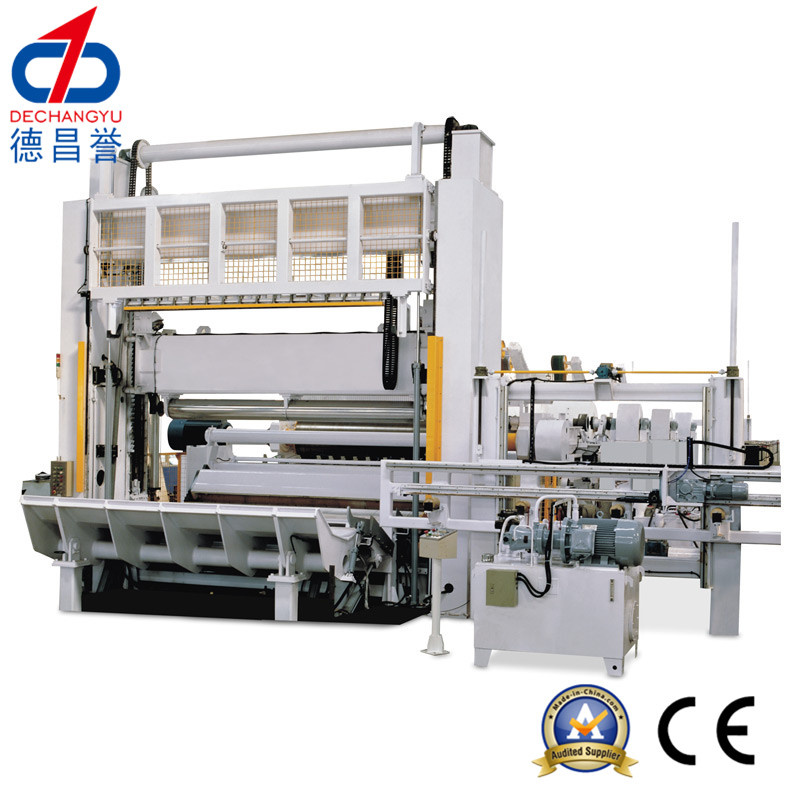

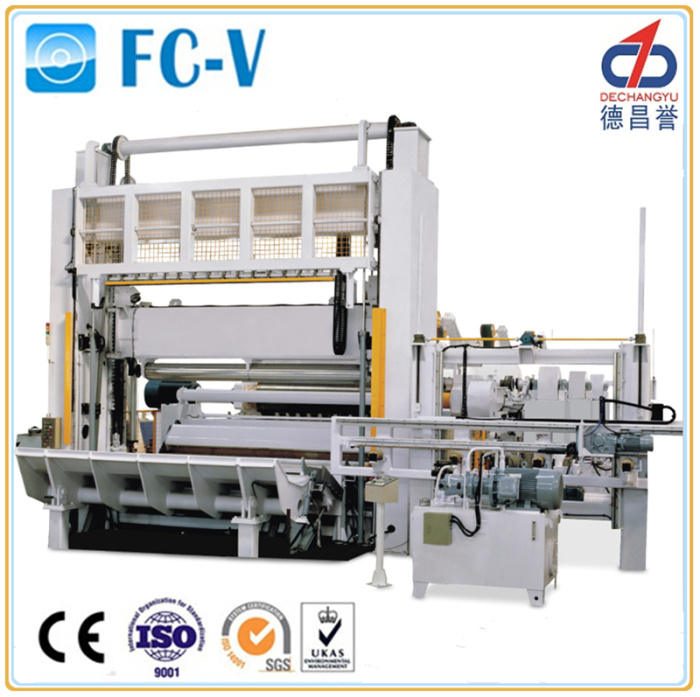

PLC Big Jumbo Reel Automatic High Speed Slitting and Rewinding Machine
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
FC-V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Process: |
Paper Machine |
Usage: |
Household Paper Machine |
Automatic Grade: |
Automatic |
Computerized: |
Yes |
Certification: |
CE |
Work Method: |
Flat Knife Slitting |
Type: |
Slitting Rewinder |
Packaging Type: |
Wooden Case/ Pallet |
Product Description
PLC big jumbo reel automatic high speed slitting and rewinding machineWhat is the details of this machine? 1.Rewinding control:Automatic pneumatic proportional valve controls linear slider rail lifting, hydraumatic servo system controls riding roller, pneumatic thimbles grasp core shaft;2.Slitting bottom blade: each bottom blade is driven by independent external rotor motor;3.Front&back rewinding rollers' speed differential and riding roller, control final product's tension and both ends' neatness; Slitting blade is precisely controlled, tolerance±0.1mm;4. Backstand: Could run both forward and reverse, easy to operate the machine; Independent driven guiding roller, and the web guide platform at the bottom, reduce the loss of elongation;5. Leading calender technology: Steel to steel calender, both two roller are made of chilled cast iron, are driven by two motor respectively; Use pneumatic tyre increase pressure; calender rollers' relative angle and gap size are both adjustable;6. Shield-blade does both tail trimming job, and guarding job (while machine is running);7. Automatic pull-plug system (optional): easy to operate the machine, improves efficiency;8. Spreading auxiliary roller (optional). Model | FC-V |
2900/3600/5600 |
Max width of raw paper | 2850/3500/5500mm |
Design speed | 1800m/min |
Guarantee operation speed | 1500m/min |
Max outer diameterof raw paper | 3000mm,others please specify |
Inner diameter of raw paper core | 3"(76.2mm),6",10",,others please specify |
Max outer diameter of finish product | 2200mm,others please specify |
Min slitting widtn | 200mm |
Rewinding type | 2 rewinding rollers+1 riding roller |
Slitting system | Shear type |
Slitting top blade | Adopts independent pneumatic controlled blade group (Italian) |
Roll-kicking unit | Hydraulic kicking roller |
Roll-unloading unit | Hydraulic dump |
Procedure control | Siemens S7-300 PLC |
Machine auto-stop type | diameter of finished product/Paper roll length |
Driver | Independent frequency driving system |
Parameter setting | HMI |
Unwinding type | press type belt unwinding system |
hydraumatic plunger, lift up type belt unwinding system |
Options |
*Backstand/Unwinding unit | 1-4 ply,shaft/shaftless,please specify. |
Forward/reverse turn,independent drive roller, paper guiding platform |
*Calendar | Each chilled cast iron roller is driven by independent motor,relative angle and gap size are adjustable,pneumatic type pressing |
*automatic pull/plug shaft system | fully automatic pull and plug shaft |
*Side-trimming | air absorb type,equip with collecting case/shredder&separators |
Further recognise this machine and us. Why choose us?1.We are Alibaba/Made-in-china assessed 13 years Gold Supplier.2.We are the famous science and technology professional enterprise specialized in researching, developing, manufacturing and selling of tissue paper converting machine,best production capability ,best quality control, best service .3.Approved the ISO9001-2000 Quality System Certification , CE Certification, SGS Certification, etc and owned many product patents.4.100% QC inspection and debugging Before Shippment.5.100% rest assured after-sales service. Our servicePre-Sale Services:According to your need of actual situation and budget, our perfessional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.) After-Sales Service:1.We also provide the door to door abroad installation, equipment debugging, technical training service; 2.Warranty:1 year quality assurance3.Building customer files, solving various technical problems for user;4.Our technical team give you 100% rest assured global presence service even over the warranty period. FAQQ1: What is the Warranty for the machine? A1: For the machine,we have 1 year warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost. Q2: How to operate and maintain the machine? A2: First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service. Q3: How to get raw material or auxiliary material for the machine? A3: Our company has more than 20 years experience in this industry, we have accumulated much more contact information of upstream & downstream firms, in the field of raw material, auxiliary material and package of tissue. We belive our professional team can give you best solution for your production configuration. Q4: How to find the matching accessories or wearing parts of the machine? A4: Actually, we will replace it for free when wear out in warranty period; Out of the warranty time, you can buy it from us with favorable price or from other place near you, most of our accessories and wearing parts are standard for you. How to Contact Us?Send your Inquiry Details in the Below for free, Click "Send" Now!
