Product Specifications
| Prod Model: |
SZ-ZK25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: |
3-19mm |
| Max. Glass Height: |
2500kg |
| Min. Glass Size: |
500*150mm |
| Weight: |
5000kg |
| Type: |
Glass Drilling Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

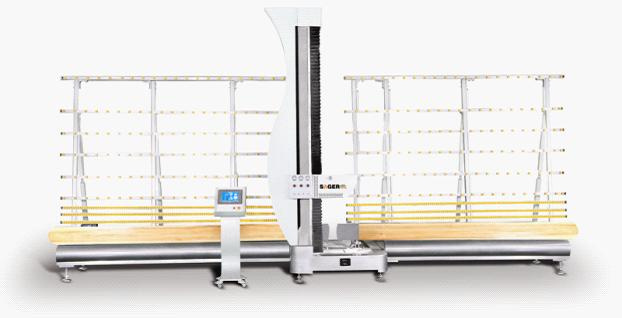

This glass vertical drilling machine is controlled by computer. In actual operation, Just put the glass on the transmission belt, input drilling position data, and press the start button the machine will automatically position itself and finish all drilling operation, and automatically stop when the work is completed. Featuring high drilling efficiency and accurate position, suitable for the processing of building glass and furniture glass.
| Glass Thickness | 3-19mm |
| Max. glass size | 2500mm |
| Diameter | Φ 4-60mm |
| Min. glass size | 500*150mm |
| X-axis speed | 1-5m/min |
| Z-axis speed | 1-5m/min |
| Power | 6.45KW |
| Air pressure | 0.6-0.8Mpa |
| Dimension | 7000*2020*3620mm |
Sager Tec., is a professional designer and manufacturer for machinery, which specialized in glass industry. At initially, Sager was dedicating to design and produce glass laminating equipment, as long as providing solution for laminating glass processing. The products have been sold to USA, Europe, Australia, South America etc., where more than dozens of countries in past few years, With a fast growing and developing, Sager was starting up the project for new glass processing machines in 2007, by optimized cooperation and source integration, we are ready and confident to provide you qualified machines basis on 10 million fixed capitals, 35 technicians and 396 employees. Now, the products range is increased, to which including competed PVBLaminating production line, EVA laminating furnace,
And materials, all the type of grinding machines, as long as washing machines and other glass processing equipment. Our business philosophy is " source integration, technology renovation, ensures quality and service clients" we promise only to what we can achieve. Beijing provide qualified and advanced products for our clients in glass industry is our mission.
