Product Specifications
Prod Model: |
YP-500-S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1610X1150X1650mm |
Material: |
SUS304 |
Control: |
PLC |
Capacity: |
400-800 Boxes/H |
Automatic Grade: |
Automatic |
Driven Type: |
Electric |
Packaging Material: |
Film |
Application: |
Fast Food |
Material Type: |
Food |
Packaging Type: |
Film |
Product Description

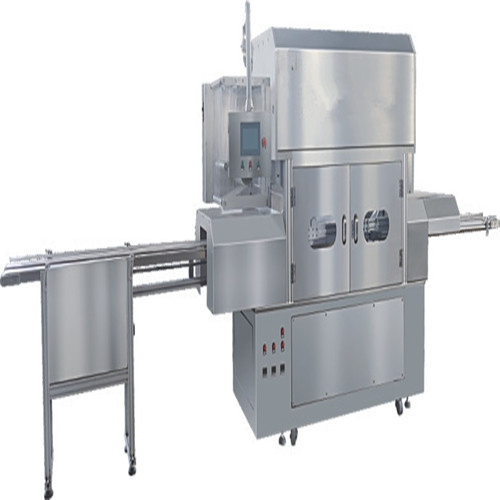

The specification of PLC control Modified Atmosphere Packaging Machinery
1 Fully automatic, with reliable performance and low failure rate. It comes with programmable controller, i.e. PLC touch screen, which provides man-machine interface and makes it easy to set parameters.
2. The modified atmosphere packaging machine offers high automation and high qualification rate.
3. All components of the packing machine are made of stainless steel to ensure food safety and sanitation. This is comliant with national food safety regulations.
4. The Moulds could customize according to the shapes of packing boxes and have a wide application scope.
5. The gases are mixed by N2,CO2 and O2 in appropriate proportion to meet standards of food preservation.
Overview of the PLC control Modified Atmosphere Packaging Machinery
The PLC control Modified Atmosphere Packaging Machinery can pack the food vacummized and fill the ratable air into the package(boxes/bags).
The process ensures the food fresh and delicious so as to satisfy the customers' taste.
What's more,the modified atmosphere packaging machine meet the demand of production line.
It also can be used to weigh the food,Barcode printing and adhibit label.
Characters of PLC control Modified Atmosphere Packaging Machinery
1.The control system applies PLC(Programmable Logic Controller) simplify the progress and reduce errors.
2.The material is stainless steel of SUS304 to create a clear product.
3.The air is full of the package so there is no need to add any preservative and additive.The product is more pollution-free.
4.Its wide application scope promise a suitable eating habit to all customers from different countries.
5.The performance price ratio is very high and the energyconsumption is very reasonable.It's quite environment-friendly.
6.The ratio of full package is very high ensuring a high quality output.
Application scope and shelf life:
Item Food | Atmosphere | Temperature | Duration days (day) |
Fruit and vegetable | O2, CO2,N2 | 0-4ºC | 10-30 |
Cooked food | CO2,N2 | 20ºC below | 5-10 |
CO2,N2 | 0-4ºC | 30-60 |
pasteurize | 80ºC | 60-90 |
Bakery food | CO2,N2 | normal | 15-60 |
CO2,N2 (dessert) | normal | 30-90 |
Fresh meat | CO2,O2 | 0-4ºC | 7-30 |
CO2,O2 | 0-4ºC | 15-30 |
Fish | O2, CO2,N2 | 0-4ºC | 15-30 |
Cure food | CO2,N2 | normal | 30-180 |
Technichal Parameter of PLC control Modified Atmosphere Packaging Machinery
Size | 3740*1630*1000mm |
Working voltage | 220V/2.3KW |
Working pressure | 0.6~0.8Mpa |
magnitude of current | 800NL/min |
Composite gas exchange rates | ≥98%(adjustable) |
Gas mixing accuracy | ≤2.0%( error rates between setting value and measured value occurred under the condition of dynamic state and proportion of mixer) |
The purity rate of air to fresh | ≥ 99.5%(air applied to food:N2,CO2,O2) |
Norm | One model including three boxes |
Pack speed | The modified machine:800-1200boxes/HR The normal machine:1200-1500boxes/HR |
|
|
After service:
The PLC control Modified Atmosphere Packaging Machinery's repairing service after saled will be available within one year.It also will be maintained for lifetime.
2.If there any thing wrong of the product,you can contact with us.
3.All above,we will meet our commitment during normal operation.
We will perform our duty to repair the PLC control Modified Atmosphere Packaging Machinery except the situation in the followings:
1.Act of man and natural disasters.
2.Improper handling.
3.Improper reconstructing,decomposability and assembling.
Our after-service theory:Pursuing the efficiency of solving problem,solving the problem thoroughly,taking up a full responsibility.
