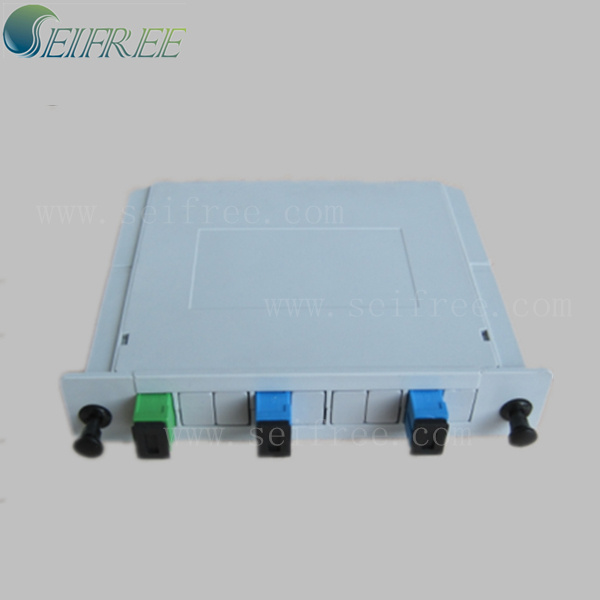

PLC Optical Fiber Splitter with Plug-in Cassette Box

PLC Optical Fiber Splitter with Plug-in Cassette Box
Supplier: Wuhan Seifree Technology Co., Ltd.
Price: US $ 33-75/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: Plastic Box
Certification: ISO
Condition: New

Product Description



Description
The Single Mode Planar Lightwave Circuits Splitter based on real time 6 DOF optical alignment monitoring and feedback technologies. The devices are designed and manufactured to meet Telcordia GR-1221-CORE requirements and ROHS compliant.
Applications                                                                                                      Features
Telecommunication system                                                                                    Low excess loss
Access network                                                                                                          Low PDL
FTTH                                                                                                                             High reliability
PON
CATV



Operating
Wavelength
1260~1650nmParameterUnitValue
Ports (N)1 (M)2 (M)Fiber Type/G652D/ G657A*
Insertion LossPDLUni.Insertion LossPDLUni.DirectivitydB>55
2≤4.30≤0.20≤0.50≤4.50≤0.20≤0.80Return LossdB>50
4≤7.40≤0.30≤0.80≤7.60≤0.30≤1.00Pigtail Dia.mm0.25/ 0.9 / 2 / 3
8≤10.7≤0.30≤1.00≤11.0≤0.30≤1.20Pigtail Lengthcm>50
16≤13.9≤0.30≤1.40≤14.8≤0.30≤1.50Operating Tem.ºC-40~ +85
32≤17.2≤0.30≤1.60≤17.8≤0.30≤1.80Storage Tem.ºC-40~ +85
64≤21.5≤0.50≤2.00≤21.5≤0.50≤2.00/


Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
