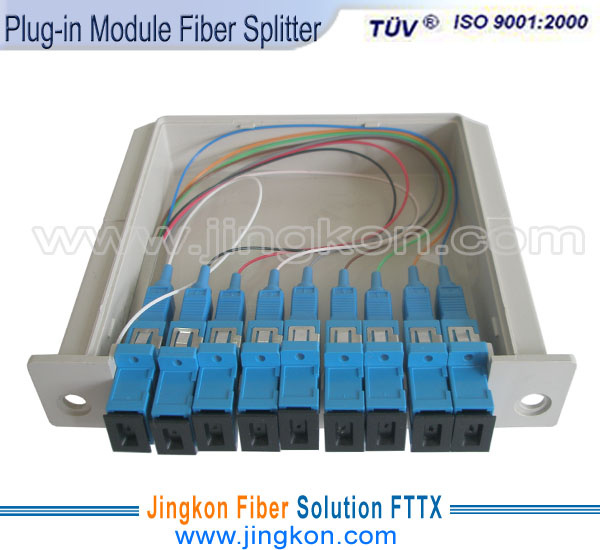

1*8 plug-in Cassette PLC Fiber Optic Splitter with SC/UPC SM connector
Description:
1. PLC Splitter with SC/UPC SM Connector
2. Corning Fiber-G. 657A
3. PVC Jacket
4. Wavelength: 1260-1650 nm
5. Loose tube Cable
6. Length: 1meter(can be customised)
Main Parameter:
|
Parameters |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Fiber type |
customer specified |
|
Operationg wavelength(nm) |
1260-1650 |
|
Insertion loss(dB) |
Max(P/A) |
3.8/4.0 |
7.2/7.4 |
10.5/10.7 |
13.5/13.7 |
16.5/16.9 |
21 |
|
Loss Uniformity(dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.7 |
2.5 |
|
Return loss(dB) |
Min(P/A) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50 |
|
PDL(dB) |
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity(dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent loss(dB) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
|
Tempperature Stability(-40 +85)(dB) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1 |
|
Operating Temperature |
-40 +85 |
|
Storerage Temperature |
-40 +85 |
