Product Specifications
| Prod Model: |
AF-20MT-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

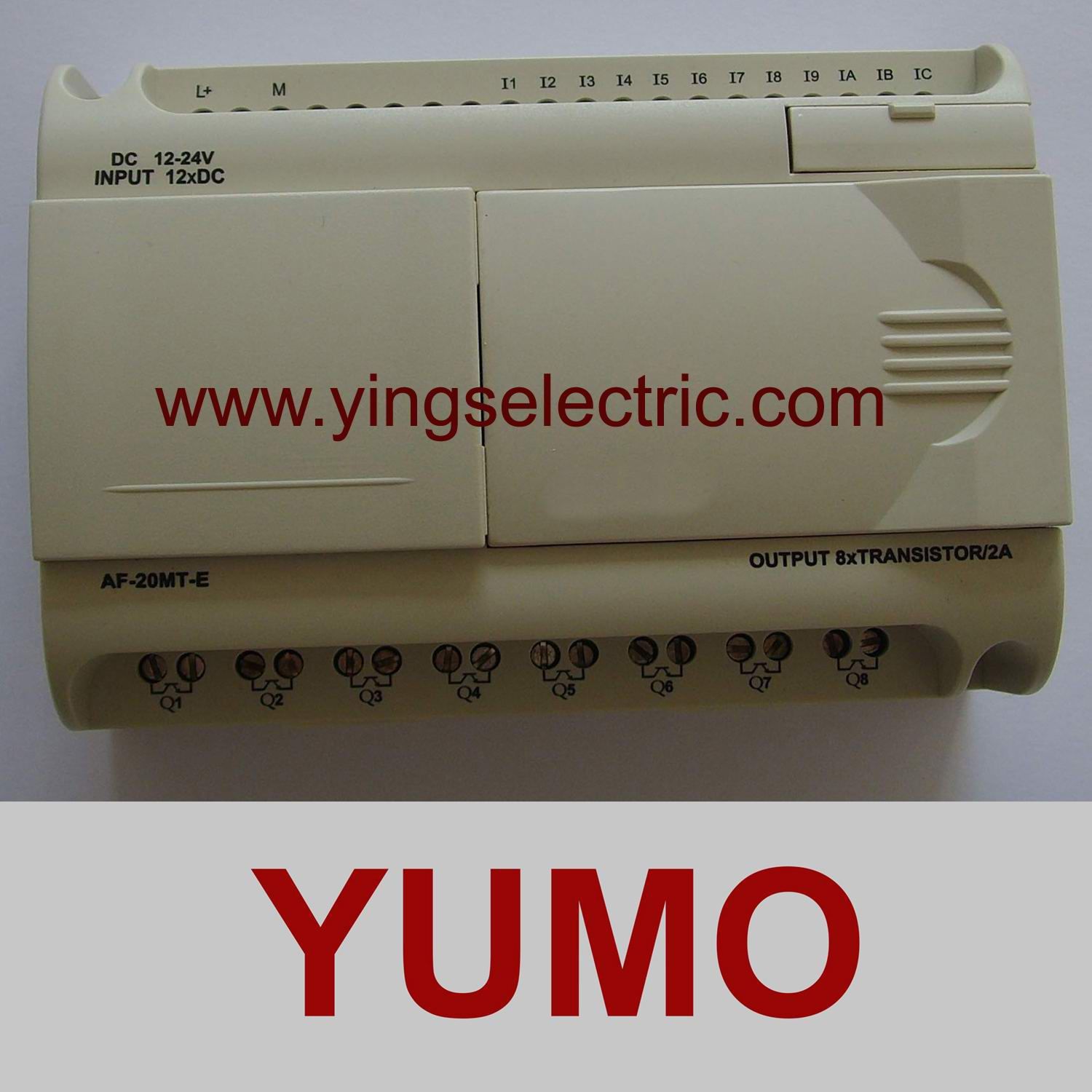

PLC --Programmable Logic Controller AF-20MT-E
AF-20MT-E DC12-24V 12 Point DC digital input 8 Points transistor output(equivalent NPN)
This model is a DC power supply, with digital input, 12 point DC input, 8 point transistor output
Exquisite and compact design
Multi-functional, easy operating, convenient, easy learning
Operation temperature -20-70 Timers 127
Storage/Transportation -40-70 Counters 127
ProtectionIP20
Function blocks: 127
Interference Regulation: EN55011(B Class) RTC time intervals127
RTC accuracy: MAX ± 5S/day
Storage capacity64K
CertificateCE
Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation Dimensions90*126*58Unitmm
Power supply
Rated voltageDC12/24V
Main voltage operation rangeDC10-28V
DC24V consumption Typical 80mA
(Output full-load)Typical 2W
Digital input
Signal 0DC 0-5V Input current<0.5mA
Signal 1DC 10-24V Input current<1mA
Digital output
Output type: Transistor output equivalent NPN
Output voltage≤ DC80V
Output current: MAX 2A
|
|
This model is a DC power supply, with digital input, 12 point DC input, 8 point transistor output |
|
|
|
|
Exquisite and compact design |
|
|
|
Multi-functional, easy operating, convenient, easy learning |
|
|
|
|
|
|
Operation temperature:-20C degree-70C degree |
|
Timers:127 |
|
|
Storage/Transportation -40C degree-70C degree |
|
Counters:127 |
|
|
|
Protection:IP20 |
|
Function blocks : 127 |
|
|
|
Interference Regulation: EN55011(B Class) |
|
RTC time intervals:127 |
|
|
|
RTC accuracy: MAX ±5S/day |
|
Storage capacity:64K |
|
|
|
Certificate:CE |
|
Insulation Intensity: IEC1131 |
|
|
|
Installation: Use a standard DIN rail or screw for installation |
|
Dimensions:90*126*58(Unit:mm) |
|
|
Power supply |
|
|
|
Rated voltage:DC12/24V |
Main voltage operation range:DC10-28V |
|
|
|
DC24V consumption: Typical 80mA |
(Output full-load):Typical 2W |
|
|
Digital input |
|
|
Signal 0:DC 0-5V |
Input current:<0.5mA |
|
|
Signal 1:DC 10-24V |
Input current:<1mA |
|
|
Digital output |
|
|
|
Output type: Transistor output (equivalent NPN) |
Output voltage:≤DC80V |
|
|
Output current: MAX 2A |
|
