Product Specifications
| Prod Model: |

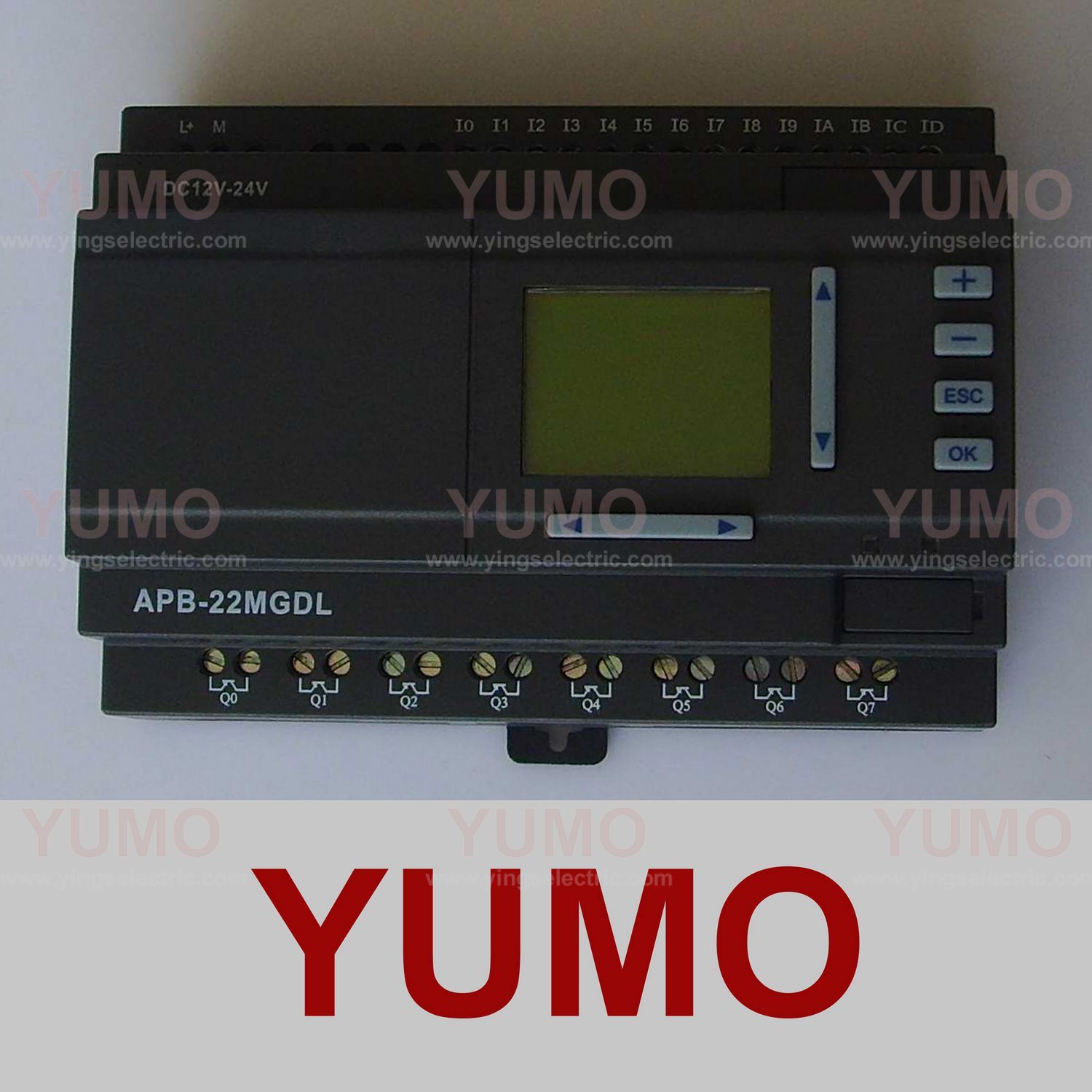

APB-22MGDL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
DC12V-24V 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports 8 points PNP transistor output Q2, Q3 can be high-speed output ports
Features:
Main module: 12\22\24 points; Extension module: 22 points; It Is flexible for extending, and the optimal configuration: 7 I/O Extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;
It is allowed to place a Li-ion battery to power the clock;
Under the circumstance of DC12-24V, the main machine at Most has 12 voltage analog inputs 0-10V, 2 current analog inputs 0/4-20mA and 2 analog outputs 0/4-20mA;
High-speed operation: At most 4 high-speed inputs 10KHz and 2 high-speed outputs 50KHz;
MODBUS protocol, and can be connected to SH-300 (Text Panel);
New function blocks: Pulse width modulation (PWM), pulse Output (PTO), ACC, SMS and analog calculation etc.;
Technical Parameters
Item
APB-12MRD(L)
APB-12MTD(L)
APB-12MGD(L)
APB-22MRA(L)
APB-24MRD
APB-22MRD(L) APB-22MTD(L) APB-22MGD(L)
Surge Immunity
2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing)
± 8kv(air discharge)/± 6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature
-10° C~+55° C
Storage Temperature
-40° C~+70° C
Ambient Humidity
5%~95%RH
Degree of Protection
IP20(Non-waterproof)
Installation
Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm)
71*99*90(12 points); 126*99*90(22 points); 126*99*90(24 points)
Programming Language
FBD
Points
12 points/22 points/24 points/can support 7 I/O extension modules
Memory Capacity
320 FBDs
Filtering Duration of Input Signal
It can be set to improve the stability of signal
Real-time Clock
160h, can place a Li-ion battery if it is necessary
Password Protection
Multiple passwords protection
High-speed Operation
At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 50KHz
Analog Operation
At most 12 voltage 0-10V and 2 current 0/4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection
Yes
Simulate Monitoring
Yes
Communication Interface
TTL interface; Besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate
9600bps
Communication Protocol
MODBUS RTU
Power Supply
Rated Voltage
DC12-24V
DC12-24V
DC12-24V
AC110-220V
DC12-24V
Permissible Range
DC11-28V
DC11-28V
DC11-28V
AC85V-265V
DC11-28V
Power Consumption
3.5W
Digital Input
Input Type
NPN/PNP
NPN/PNP
NPN/PNP
NPN/PNP
NPN/PNP
Input Signal 0
DC0-5V
DC0-5V
DC0-5V
AC0-70V
DC0-5V
Input Signal 1
DC8.5-28V
DC8.5-28V
DC8.5-28V
AC85-265V
DC8.5-28V
Isolation
Non-isolation
Non-isolation
Non-isolation
Photoelectric isolation
Non-isolation
