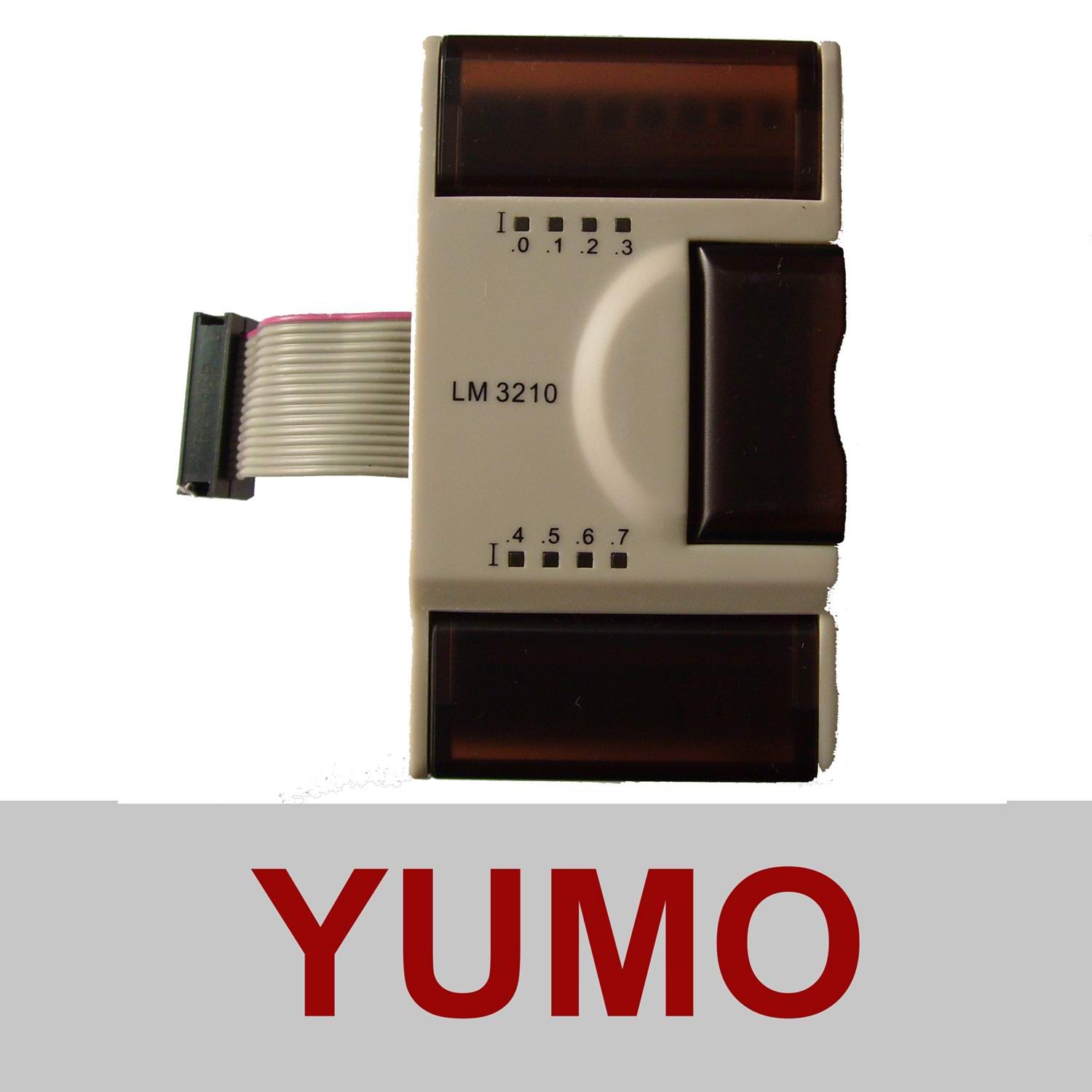

PLC - Programmable Logic Controller Di Module LM3210 (8CH DI)
Product Specifications
| Prod Model: |
LM3210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
DI Module LM3210 (8CH DI)
Input channel: 8
Rated Voltage: 24V DC
|
Input Features |
|
Input channel |
8 |
|
Input type |
Sink/Source |
|
Input voltage rated value |
24V DC |
|
Allowed range |
0V DC-30V DC |
|
Logic 1 signal |
15-30V DC, allowed minimum current 3mA |
|
Logic 0 signal |
0-5V DC, allowed maximum current 1mA |
|
Input delay time |
< 10ms (Rated input voltage) |
|
Isolation mode |
Photocoupler isolation |
|
Isolation group |
2groups |
|
Maximum Isolation Voltage |
1500VAC |
|
Physical Features |
|
Dimensions |
50mm(L)× 90mm(W)× 70mm (H) |
|
Weight |
< 200g |
Power
Consumption |
+24VDC (Provided by
expansion bus) |
0mA |
|
+24VDC (External supply) |
40mA |
+5VDC (Provided by
expansion bus) |
60mA |
