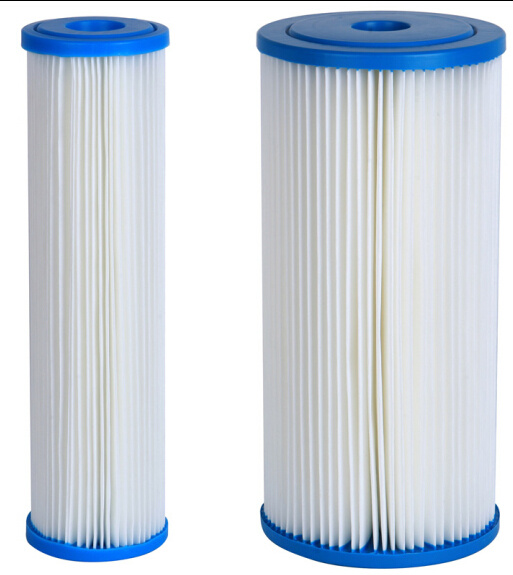

Pleated Paper Filter/Folding Filter Cartridge/Paper Cartridge Pool Filters for Water Treatment

Product Specifications

Prod Model:	10", 20", 30", 40"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	10", 20"30"40" or OEM
Od:	2.5", 4.5"
Material:	Polyester
Filtration Grade:	PRE Filter
Usage:	Liquid Filter
Type:	Polypropylene
Cartridge Filter:	Polypropylene

Product Description

High water flow filter cartridge, which is made of polythylene terephthalate(PET) nonwovens, has the speciality of durability. The core and the end caps of the filter elements are combined together as one-piece filter which can insure better closure. With the pleated design, it offers larger filtrating area, longer filtrating life and also reduces the turnover rate and the cost for filters.

Characteristic:
High water flow means less shells, low turnover rate and larger sewage capacity
High water flow accepts smaller out shell and less expenditure
The design of no-inner-core reduces the cost of noise treatment
It is much faster, easier and safer for renewal with the handmade design
O-ring insures the complete filteration
The filter element can be used in both aqueous and non-aqueous medium by using the material of PET
The large pleated area can reduce much pressure than other filter elements do and gain the longer woring life

Application:
DI&RO pretreatment, dringking water process, process water
Edible oil, lubricant, coolant
Cutting oil, solvent agent, chemicals

ITEM	MATERIAL	PRECISION	LENGTH	OD	CODE EG.
HWF	P:POLYESTER	01:1UM	10M:250+/-1.5MM	25:2.5"(63.5MM)	HWF-P-01-10M-25
		05:5UM	10I:10"(254+/-1.5MM)	45:4.5"(115MM)
		10:10UM	20M:500+/-1.5MM)
		20:20UM	20I:20"(508+/-1.5MM)
		30:30UM
		50:50UM
		75:75UM
		100:100UM
