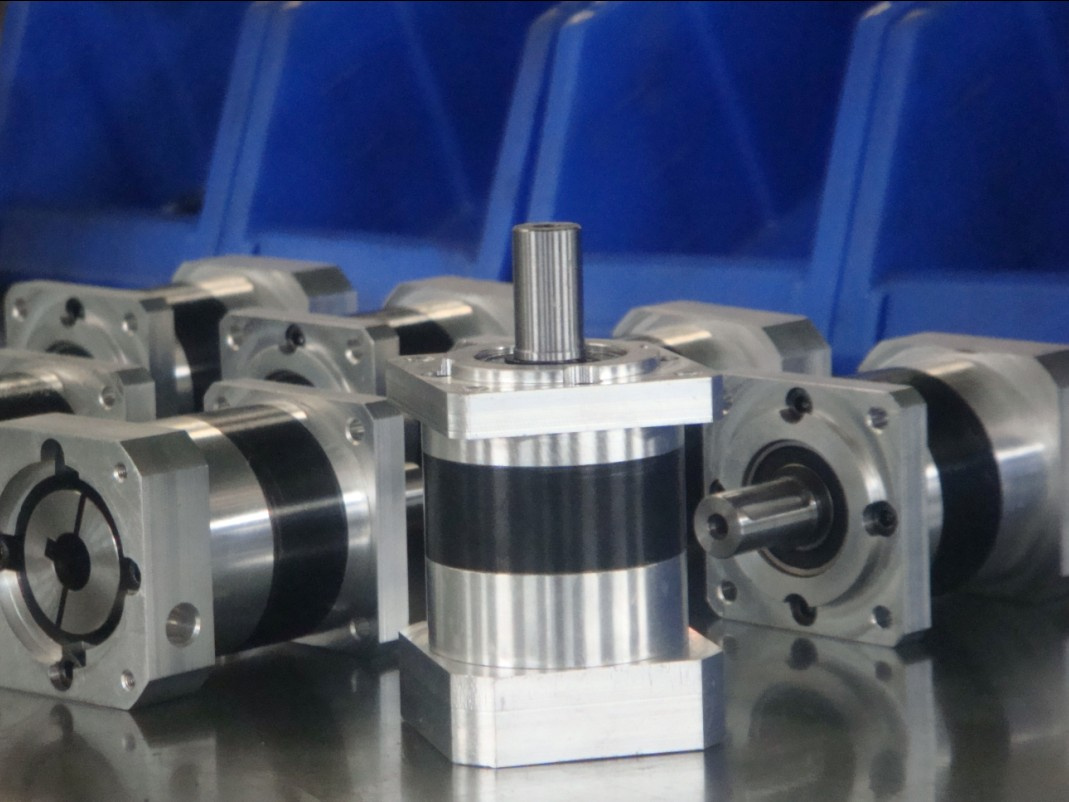

PLF Series Servo Motor Planetary Gearbox (PLF40\PLF60\PLF90\PLF120\PLF160\PLF200)

$PLF Series Servo Motor Planetary Gearbox (PLF40\PLF60\PLF90\PLF120\PLF160\PLF200)$

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1unit
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	PLF40\PLF60\PLF90\PLF120\PLF160\PLF200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. PLF series precision planetary gear speed reducer Model: PLF40, PLF60, PLF90, PLF120, PLF160, PLF200
2. The speed ratio: 3, 4, 5, 7, 9, 10, 15, 20, 25, 30, 35, 40, 50, 64, 70, 80, 100, 150, 200, 250, 350, 400, 500, 700, 1000
3. Stages: Three
Performance and features:
1. Planetary gear transmission interface using doesn't contain full needle needle bearing, and increase the contact area to improve structural rigidity and output torque;
2. PLFseries precision planetary gear reducer, with high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rising, beautiful appearance, structure, light weight, easy installation, accurate positioning, etc, and is suitable for AC servo motor, DC servo motor, stepper motor, hydraulic motor of growth and slow down transmission

Type		PLF-40	PLF-60	PLF-90	PLF-120	PLF-160	PLF-200	Ratio	Stages
T2N Rated output torque (Nm)		10	28	120	220	480	1230	3	1
		15	48	150	270	590	1450	4
		15	48	150	270	590	1450	5
		9	39	110	215	470	1130	7
		7	19	58	98	260	720	10
		10	28	120	220	480	1230	9	2
		15	48	150	270	590	1450	15
		15	48	150	270	590	1450	20
		15	48	150	270	590	1450	25
		15	48	150	270	590	1450	30
		15	48	150	270	590	1450	35
		15	48	150	270	590	1450	40
		15	48	150	270	590	1450	50
		9	39	110	215	470	1130	70
		7	19	58	98	260	720	100
		15	48	150	270	590	1450	64	3
		15	48	150	270	590	1450	80
		15	48	150	270	590	1450	100
		15	48	150	270	590	1450	150
		15	48	150	270	590	1450	200
		15	48	150	270	590	1450	250
		15	48	150	270	590	1450	350
		15	48	150	270	590	1450	400
		15	48	150	270	590	1450	500
		9	39	110	215	470	1130	700
		7	19	58	98	260	720	1000
emergency stop torque		T2not=2T2N
Rotational inertia (kgm2)		0.031	0.0135	0.77	2.63	12.14	15.6	3	1
		0.022	0.093	0.52	1.79	7.78	16.3	4
		0.019	0.078	0.45	1.53	6.07	15.4	5
		0.017	0.065	0.39	1.32	4.63	16.1	7
		0.016	0.065	0.39	1.32	4.63	15.2	10
		0.03	0.131	0.74	2.62	12.14	15.9	9	2
		0.023	0.077	0.71	2.53	12.35	15	15
		0.019	0.075	0.44	1.5	6.65	15.7	20
		0.019	0.075	0.44	1.49	5.81	15.3	25
		0.017	0.064	0.39	1.3	6.36	15.2	30
		0.016	0.064	0.39	1.3	5.28	16.1	35
		0.016	0.064	0.39	1.3	5.28	15.2	40
		0.016	0.064	0.39	1.3	4.5	15.2	50
		0.016	0.064	0.39	1.3	4.5	15.2	70
		0.016	0.058	0.31	1.12	3.53	15.2	100
		0.019	0.075	0.5	1.5	7.5	15.4	80	3
		0.019	0.075	0.44	1.49	7.4	15.4	100
		0.016	0.064	0.39	1.3	6.5	15.2	150
		0.016	0.064	0.39	1.3	6.2	15.2	200
		0.016	0.064	0.39	1.3	5.7	15.2	250
		0.016	0.064	0.39	1.3	5.4	15.2	350
		0.016	0.064	0.39	1.3	5.4	15.2	400
		0.016	0.064	0.39	1.3	5.2	15.2	500
		0.016	0.064	0.39	1.3	5.2	15.2	700
		0.016	0.064	0.39	1.3	5.2	15.2	1000
backslash (arcmin)	reduced	<5	<3	<3	<3	<5	<10		1
	standard	<10	<8	<8	<8	<10	<15		1
	reduced	<8	<5	<5	<5	<8	<15		2
	standard	<12	<10	<10	<10	<10	<18		2
	reduced	<10	<8	<8	<8	<10	<18		3
	standard	<15	<12	<12	<12	<15	<22		3
torsional rigidity (Nm/arcmin)		0.7	1.8	4.4	9.2	26.7	66.7
noise dB(A)		55	58	60	65	70	75
Max.input speed		10000	8000	6000	6000	5000	3500	1-min
Rated input speed		4500	4000	4000	3500	2000	1500	1-min
Max.Radialforce(N)		185	265	400	1240	3700	6700	Stages
Max.Axialforce(N)		150	200	420	1000	3500	3800	Stages
Full-load efficiency(%)		96						1
		94						2
		90						3
service life (H)		20000
Weight (Kg)		0.5	1	3	6.2	19	42	1
		0.8	1.5	4.2	8	24	50	2
		1.1	1.8	4.8	9.8	29	58	3
