Product Specifications
| Prod Model: |

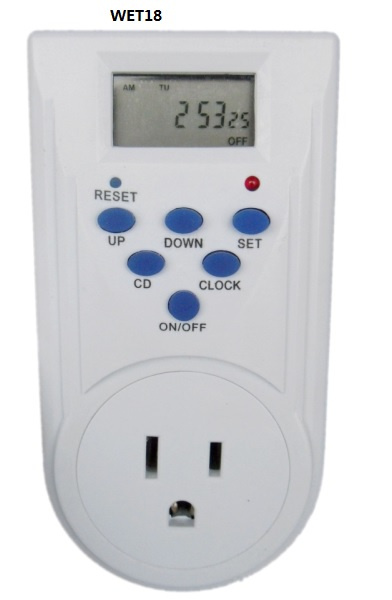

Plug DIGITAL Electronic Timer Socket American |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Digital |
| Usage: |
Universal Counter |
| Type: |
Mini |
| Function: |
Reversible Counter |
| Carry Mode: |
Synchronous Counter |
| Mechanism: |
Electronic |
Product Description
pecifications
electronic plug_in timer
1.indoor programmable timer
2.programmable plug-in timer
3.suitable indoor and outdoor
electronic plug_in timer
=============Features===============================
Time range:1Min~7daysx24hour or 15min~24hour
·Clock display in 12 or 24 hour format
·20 Programs for ON/OFF function
·Random Programmable Function
·Daylight Savings Time function
·To-the-second programmable countdown Timer
·Master/Individual override for preset programs
·Manual ON/OFF
·Battery back-up memory
=============Specification============================
·Power Supply: 230VAC, 50Hz
·Rating: 16A 3680W max
·Battery: 2 X 1.5V (LR44/AG13) button cells
F360 F362 F364 RCCB Circuit Breakerseries Residual current circuit breaker(without over-current protection) is suitable for the line of AC 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation. It is applicable to industrial site, commercial site, tall building and civil house.
FRAME CLASS 63A
RATED WORKING VOLTAGE 240/415V
RATED FREQUENCY 50/60HZ
RATED WORKING CURRENT 16, 20, 25, 32, 40, 50, 60A
RATED RESIDUAL OPERATING CURRENT 0.03, 0.1.0.3, 0.5A
RATED RESIDUAL UN-OPERATING CURRENT 0.015, 0.05, 0.15, 0.25A
SENSIBILITY A TYPE, AC TYPE
MAXIMUM OPERATING TIME I Δ N t≤ 0.1s, 5IΔ N t≤ 0.04s
RATED MAKING AND BREAKING CAPCAITY In≤ 50A 500A, In=63A 630A
LIMITING VALUE OF UN-OPERATING CURRENT 6In
RATED LIMITING SHORT-CIRCUIT CURRENT 3000A
POLE NUMBER 2, 4P
MECHANICAL LIFE 10000
ELECTRIC LIFE 4000
| FRAME CLASS | 63A |
| RATED WORKING VOLTAGE | 240/415V |
| RATED FREQUENCY | 50/60HZ |
| RATED WORKING CURRENT | 16,20,25,32,40,50,60A |
| RATED RESIDUAL OPERATING CURRENT | 0.03,0.1.0.3,0.5A |
| RATED RESIDUAL UN-OPERATING CURRENT | 0.015,0.05,0.15,0.25A |
| SENSIBILITY | A TYPE, AC TYPE |
| MAXIMUM OPERATING TIME | I Δn t≤0.1s, 5IΔn t≤0.04s |
| RATED MAKING AND BREAKING CAPCAITY | In≤50A 500A,In=63A 630A |
| LIMITING VALUE OF UN-OPERATING CURRENT | 6In |
| RATED LIMITING SHORT-CIRCUIT CURRENT | 3000A |
| POLE NUMBER | 2,4P |
| MECHANICAL LIFE | 10000 |
| ELECTRIC LIFE | 4000 |
