Product Specifications
| Prod Model: |
Ys-623 |
| Markets: |
North America,South America |
| Function: |
AC Plug |
| Shape: |
CP2 |
| Brand: |
Yysr |
| Standard: |
NBR Standard |
| Certification: |
NBR |
Product Description

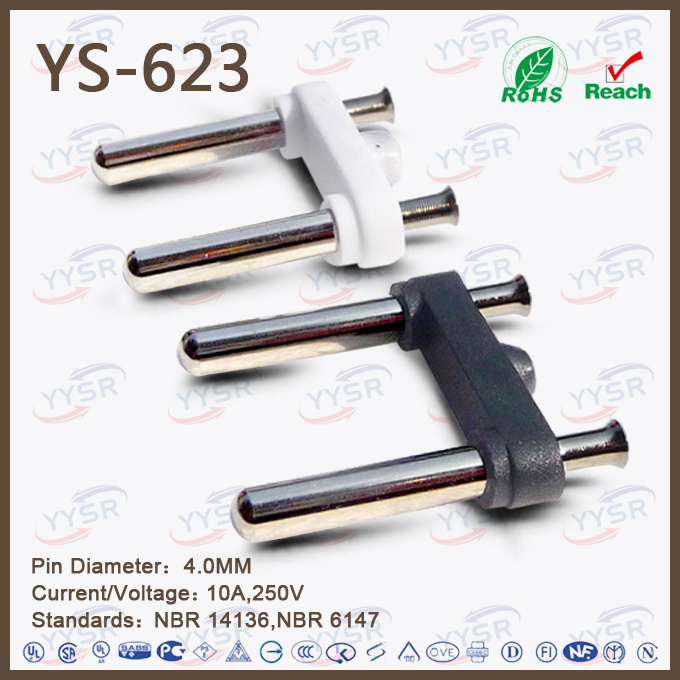

YS-623 Brazil NBR 14136 plug
Hollow and solid pin plug insert
Two Core , 10 amper , 4MM in diameter
Code: YS-623
Name: 10A Two Pin Brazilian Plug Insert Type N Plug
Appearance: Plug Insert
Color: White/Black
Finish: Nickel Plated
Product Show
Material
Brass: H62~H65 (lead free)
Plastic: PBT 30% glass-reinforced(with ROHS,REACH,PAHS,PHTHALATE)
Technical data
2 pins diameter: 4.0mm+/-0.06
2 pins length: 31+/-0.2mm
Applicable cables:0.75~2.0mm
Competitive Advantage
1) Iso/invention certified & RoHs
2) High grade materiel
3) Best quality product
4) Competitive price
5) Production capacity: 700,000PCS per day.
Recommend Product
YS-623 is all most same as YS-014. The YS-623 insert length of 2 PINS are 19+0.7mm . But the YS-014 insert length of 2 PINS are 19+/-0.2mm.
And YS-623 is similar with YS-623-X. The 2 PINS of YS-623 are 4.0mm. But the 2 PINS of YS-623-X are 4.8mm.
Another Brazil Plug Insert
YYSR has many kinds of Brazil plug insert, such as 4.0mm pin and 4.8mm pin or 3 pin and 2 pin plug.
|
Brand |
YYSR |
|
Code |
YS-623 |
|
Pin |
Hollow pin & Solid pin |
|
Type |
Crimping |
|
Description |
4.0mm 2 pin plug without insulation |
|
Color |
Black & White |
|
Current / Voltage |
10A, 250V |
|
Material |
Brass: H62~65 BRASS with Nickel-plating
Plastic: PBT 30% glass-reinforced |
|
Environmental Certifications |
ROHS,REACH,PAHS,PHTHALATE |
|
|
|
|
PACKING LIST |
|
|
Code |
YS-623 |
|
PE BAG |
1000PCS/bag |
|
CARTON |
4000PCS/ctn |
|
CARTON SIZE |
33*27*27.5CM |
