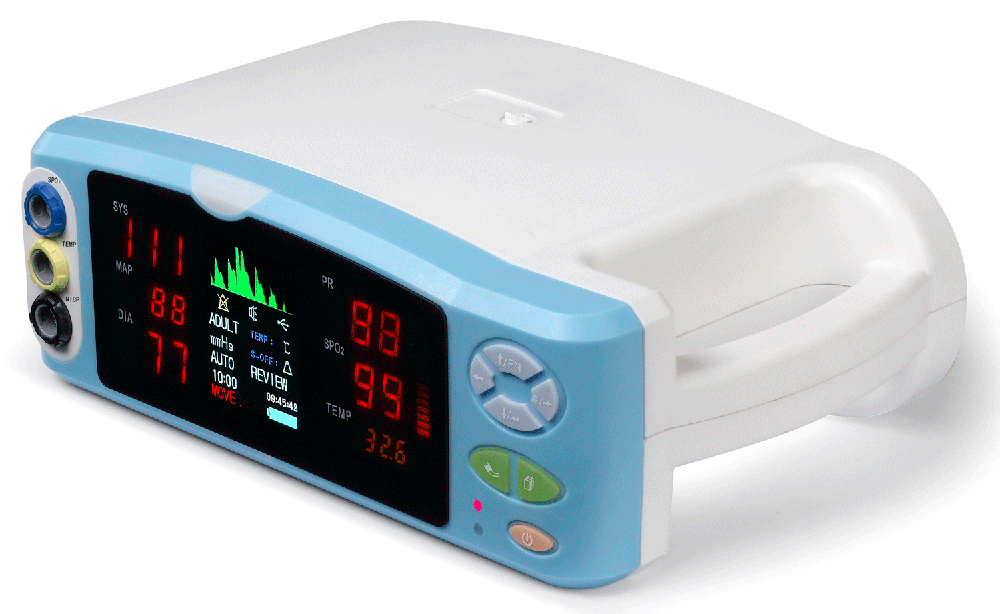

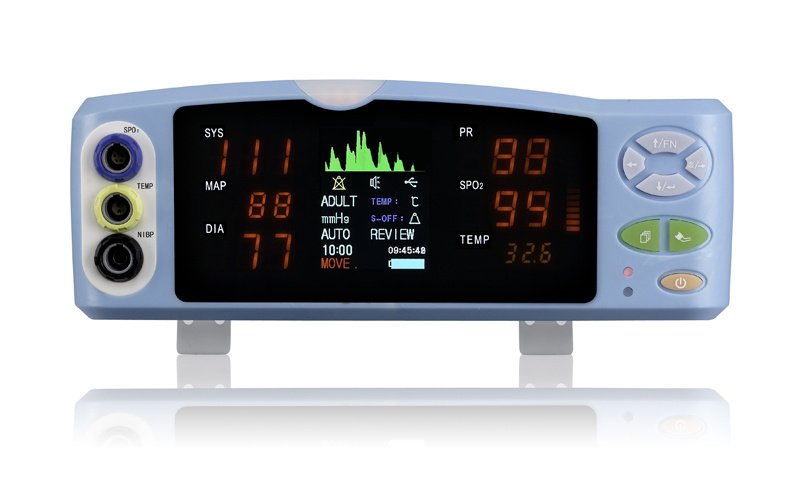

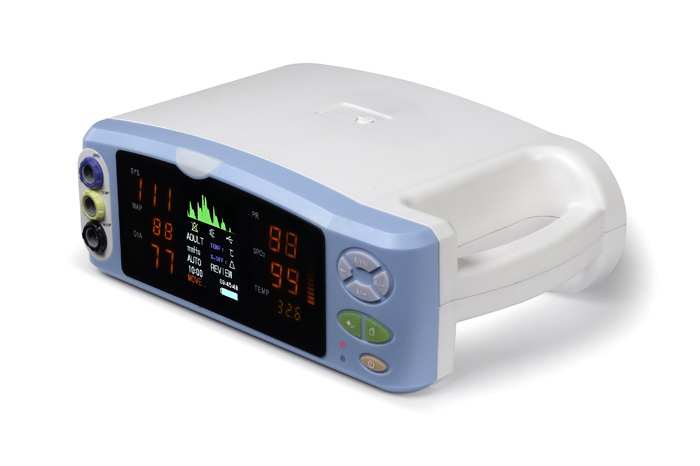

Pm-III NIBP & SpO2 Tabletop Patient Monitor Device (with sensors off function)
Product Specifications
| Prod Model: |
PM-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CE,FDA: |
Certificated |
| Group: |
Middle-aged and Old |
| Certification: |
ISO13485 |
| Type: |
Patient/Fetal/Maternal Monitor |
| Classification: |
Imaging Diagnostic Equipment |
Product Description
Pm-III NIBP & SpO2 Tabletop Patient Monitor device
(with sensors off function)
Parameters:
Four Parameters: NIBP,Pulse Rate,SPO2,TEMP.
Waveforms:
SPO2 waveform
Features:
* SpO2 waveform, PR strength display
* 2.8 inch color LCD with real time display
* Storage/Review trend data up to 3888 groups, data save time interval settable
* Audio and visual alarm when parameters exceeded and sensor-off
* Built-in rechargeable Li-ion battery, up to 4 hour running time
* Automatic shutdown for power saving, shutdown time interval settable
*Via USB to connect with the computer, unique software for telemonitoring by transmitting data synchronously via internet
* Battery capacity indicatior and prompt when battery low
Applications:
This model can be applied in the hospital's operation room, ICU, clinic section office, Out-patient department, sickroom and emergency treatment.
Standard Packing List:
NBIP/SPO2 Patient Monitor main unit 1pc
NIBP extension tube 1pc
Adult NIBP cuff 1pc
Adult SPO2 Sensor(include TEMP Probe) 1pc
AC power adaptor 1pc
Communication cable 1pc
The operator's manual 1pc
Selectable Accessory:
Pediatric NIBP cuff
Pediatric SPO2 sensor
Specifications:
NIBP:
Patient: Adult and Pediatric
Measurement method: Oscillometric
Range:Adult:30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
Measurement unite: mmHg/kPa selectable
Measurement mode: Manual, Auto, STAT
Measurement Type: SYS, DIA, MAP
Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60Min
Measuring period in STAT mode: 5 Min
Resolution:1mmHg
Over-pressure protection:Adult:300mmHg Pediatric:220mmHg
SPO2:
Patient: Adult, child
Range: 0 -100%
Resolution: 1 %
Accuracy: ±2 %(90~99%), ±3 %(70~89%),unspecified (<70%)
PR:
Range:30bpm~250bpm
Resolution:1bpm
Accuracy: ±2bpm
Temperature:
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Measurement Unit: °C/°F selectable
Range: 0~50ºC
Resolution: 0.1ºC
Accuracy: ±0.1ºC
Environment:
Temperature
Operation:0°C~45°C
Transportation and storage:-20°C~60°C
Humidity
Operation: 15%~95 %( non-condensing)
Transportation and storage: 10%~95% (non-condensing)
Altitude
Operation:86kPa ~106kPa
Transportation and storage:50kPa~106kPa
Power Requirements:
AC power adaptor
Input: AC 100~240V, 50/60Hz, 0.7A
Output: 5V,2.5A
Internal battery
Type:2.8A build-in Li-ion rechargeable battery
Operating Time: 5 hours of stand-by time with a full battery.
Recharge time: 8 hours
Dimension: 280mm×190mm×100mm
Net Weight : 1000g
