Product Specifications
| Prod Model: |

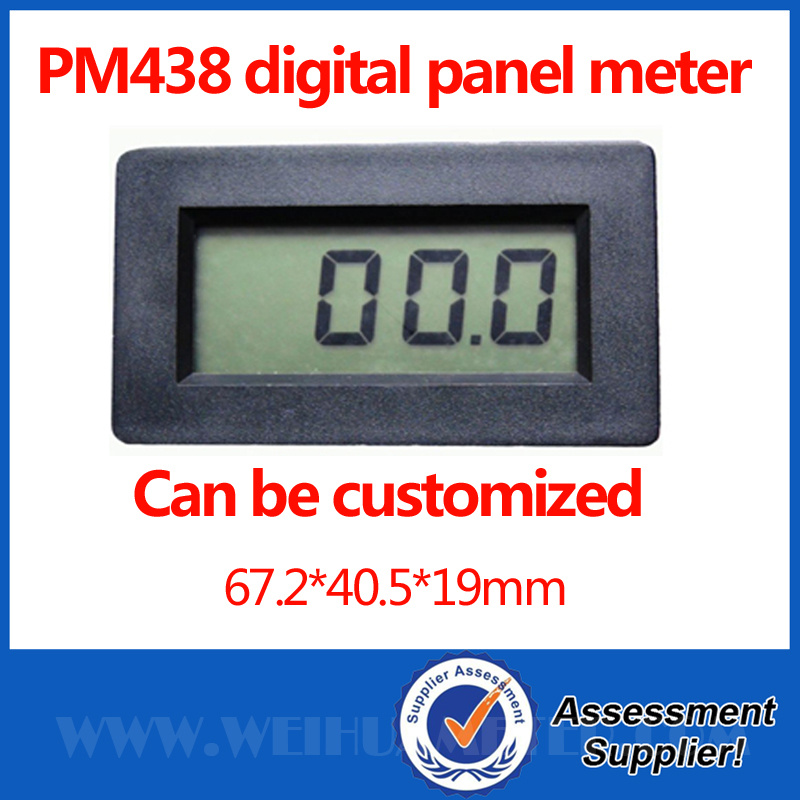

PM438 series Digital panel meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Display 3 1/2 digits LCD with a Max. Reading of 1999
Polarity Automatic, positive implied, negative polarity indication
Over Range (1) or (-1) is displayed
Measurement Rate 2 times per sec. Nominal
Operating Environment 0° C to 50° C at <70% relative humidity
Accuracy Stated accuracy at 23± 5° C <75% relative humidity
Applications Item No Range and resolution
DC Voltmeter PM438 0.1UV~500V
DC Current Meter PM438B 100uA~5A(no suit for testing 5A long-time)
Other Industrial & DIY Users Capacitance Meter* *conversion circuit not included
DB Meter*
PH Meter*
Watt Meter*
Lux Meter*
LCR Meter*
Dimension 67*40*13mm
Supply Voltage 8 - 12 VDC
|
Display |
3 1/2 digits LCD with a Max. Reading of 1999 |
|
Polarity |
Automatic, positive implied, negative polarity indication |
|
Over Range |
(1) or (-1) is displayed |
|
Measurement Rate |
2 times per sec. nominal |
|
Operating Environment |
0°C to 50°C at <70% relative humidity |
|
Accuracy |
Stated accuracy at 23±5°C <75% relative humidity |
|
Applications |
Item No |
Range and resolution |
|
DC Voltmeter |
PM438 |
0.1uV~500V |
|
DC Current Meter |
PM438B |
100uA~5A(no suit for testing 5A long-time) |
|
Other Industrial & DIY Users |
Capacitance Meter* |
*conversion circuit not included |
|
dB Meter* |
|
PH Meter* |
|
Watt Meter* |
|
Lux Meter* |
|
LCR Meter* |
|
Dimension |
67*40*13mm |
|
Supply Voltage |
8 - 12 VDC |
Zhangzhou Weihua Electronic Co., Ltd., is specialized in developing and producing electronic instruments. Our factory is located in Jinfeng Industrial Zone, Zhangzhou, China. We are striving to provide products with higher quality and cheaper price to our customers. With an efficient management team, we are able to provide prompt and timely delivery to our customers. The delivery time of most orders is within 10 days upon confirmation.
We have digital multimeters, digital clamp meter, capacitance meter and other digital meters. All our products are designed according to worldwide safety standards, most of our products have obtained CE approval. Our products are ideal instrument for using in the following field, laboratory, workshop, hobby, home and DIY funs user. And they are sold well at home and abroad. And we have been highly trusted and praised by our clients. We have been in business with customers from over 30 countries all over the word. We have been in business with customers from over 30 countries all over the word.
We had obtained the ISO9000: 2000 quality cortrol system certification, most of our products had gained the cetification of conformity in March of 2005, besides we have gained the quality licence for eligible export commodity in 2001.
Welcome all kinds of OEM or ODM cooperation. With the idea of being honest and keeping improving, we'd like to develop the techonology of measuring instruments with our old and new friends.
