Product Specifications
| Prod Model: |
B87C, B67C, B70, B90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
B87c,B67c,B70,B90 |
| Piston Diameter: |
57.15mm |
| Piston Stroke: |
146mm |
| Impact Frequency: |
1250 Minute/Time |
| Net Weight: |
30kg/60lbs |
| Total Length: |
660mm |
| Usage: |
Ore |
| Condition: |
New |
| Power Type: |
Pneumatic |
| Type: |
Hand-Held |
Product Description

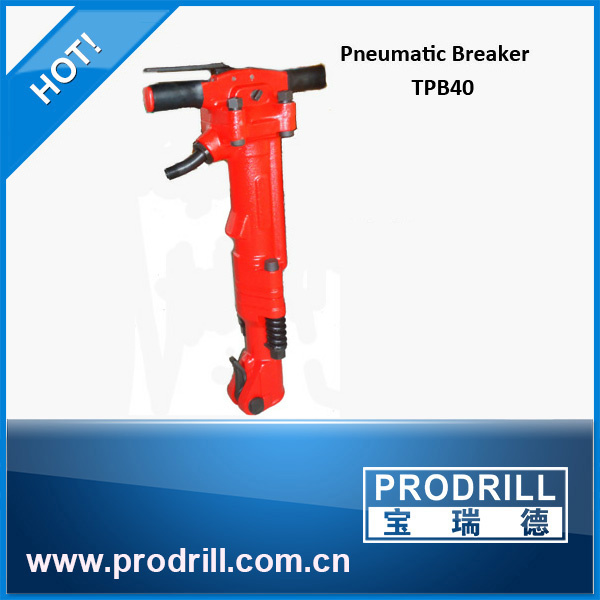

TPB 40/60/90 Pneumatic breakerare the power of the air demoltion tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!
All parts of machine are made of alloy steel, and have great durability.
Back head is fixed by four bolts, and can endure the extremely hard condition
Quick reblading-type gripper, easy changing chisel, Hex. Shank
It is used to break or excavate the asphalt.
Specification
Model: TPB60
Piston diameter: 57.15mm
Piston stroke: 146mm
Impact frequency: 1250 minute/Time
Net weight: 30kg/60lbs
Total length: 660mm
Air consumption: 2.0m3/minute
Hose size: 19mm(3/4inch)
Shank specifications: 1× 4-1/4 25X108
Inlet size: 3/4PT
Air pressure: 0.63Mpa
We supply many kinds of jack hammer, rock drill, welcome to inquiry ~
Jack hammer: RB777, RB777C, B77C, B87C, B67C, B47C, B70, TPB-40, TPB-60, TPB-90, G10, G20, TCA-7
Air leg rock drill: YT27, YT28, YT29A, YT24, YT23, YT23D, YO18, Y20, YSP45
Hand hold rock drill: Y19A, Y24, Y26, TY24C, Y6, Y10
| Model | TPB40 | TPB60 | TPB90 |
| Piston diameter | 44mm | 57.15mm | 66.67mm |
| Piston stroke | 100mm | 146mm | 152mm |
| Impact frequency | 900 minute/Time | 1250 minute/Time | 1400 minute/Time |
| Net weight | 18kg/39.6lbs | 30kg/60lbs | 42kg/92.4lbs |
| Total length | 660mm | 645mm | 723mm |
| Air consumption | 1.6m3/minute | 2.0m3/minute | 2.2m3/minute |
| Hose size | 19mm(3/4inch) | 19mm(3/4inch) | 19mm(3/4inch) |
| Shank specifications | 1×4-1/4 25X108 | 1×4-1/4 25X108 | 1×4-1/4 25X108 |
| Inlet size | 3/4pt | 3/4pt | 3/4pt |
| Air pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
