1. The proffessional factory of fittings.
2. The important manufacture of fittings in China.
3. High quality and better price.

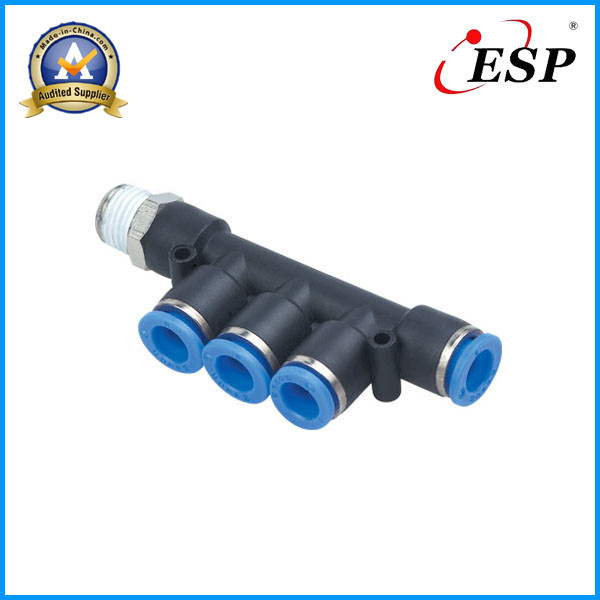

We are factory of pneumatic fittings.
The tube fitting comes in a wide variety of tube and thread sizes. Even after installation the direction of the tubing can be changed freely.
Sizes Available:
Tubing - Inch, Metric;
Thread - NPT, BSPT (R), Metric, Unified (UNF), BSPP (G)
NPT --- National (American) Pipe Tapered Thread
BSPT (R) ---British Standard Pipe Tapered Thread
BSPP (G) --- British Standard Pipe Parallel Thread
1: Quick installation.
2: Aesthetically pleasing nickel-plated metallic optional feature ensures anti-corrosion and anti-contamination properties of an extended product life.
3: Pre-applied sealant on all external threads eliminates the additional sealing requirement.
4: A wide variety of models available to meet customers' changing needs in pneumatic piping.
5: Simple and flexible. The direction of the tube can be changed freely even after installation.
6: Internal and external flat-to flat hexagonal configurations for both metric and inch
Specifications allow a proper tightening or directional orientation upon installation by using
L key or allen wrench for the applicable model types.
7: The color of sleeve button can be changed as your requests.
Property
1, Simple and smart, kinds of models, so it meets any stringing tube requirements.
2, some items, even if they are installed, plastic tube can rotate at random.
3, All taper pipe threads paints Teflon leakage-proof rubber, so seal property is good.
4, All PC type directly connects hexagonal socket hole of grading belt, so it is convenient to install in the narrow.
Caution
1, INSTALL TUBE:
1) The cut offside of the tube must be vertical. The outer surface of tube must not be scarred or be ellipse.
2) When fitting the tube, insure that it is inserted fully or leakage may occur.
3) After fitting, ensure that the tube cannot disengage.
2, INSTALL FITTINGS:
1) Ensure correct tools are used for fitting. A six-angled screwdriver must be used to lock the body.
2) When fastening joint thread, do not over tighten or fit too loose. This may result in damage or leakage.
3) The unit can be adjusted by twisting to adapt to the fittings.
3, JOINT DISASSEMBLE
1) Ensure correct tools are used for fittings. A six-angle screwdriver must be used to disassemble fittings.
2) Remove the sealing material after disassembling fittings, or may damage the other pneumatic components.
Packing method
Normal: Transparent plastic bag + white small box + netural carton + pallet
Also custom packaging are available, ESP brand packaging are available.
Shipping and handling
Item location: Ningbo, China
Shipping to: Worldwide
Shipping method: By sea, by air, by express
Estimated delivery dates depend on specific order list, shipping service selected and receipt of cleared payment. Delivery time may vary.
Samples policy
Usual samples within 20pcs, can offer for free, only the freight charges on buyer's side.
Return Policy:
We want you to be completely satisfied with your purchase. In the event you are unsatisfied, should be report the specific situation, the best solve method will be offered.
Contact Us
Should you have any questions, please feel free to contact us by sending an email to our friendly customer service team. We are more than happy to assist you.
| Tube Outer Dia | METRIC SIZE | INCH SIZE |
| code | 04 | 05 | 06 | 08 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
| Dia. | 4mm | 5mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 5/32inch | 3/16inch | 1/4inch | 5/16inch | 3/8inch | 1/2inch |
Zhejiang Yipu Pneumatic Technology Co., Ltd. Specializes in producing quick disconnect couplings of plastic pneumatic components, quick straight couplings of moulds, adjustable couplings of pneumatic components, dust blower and pneumatic tools direction control valve(solenoid, air-pilot, handle, pedal, mechanical), air conditioning unit(filter, regulator, lubricator)and pneumatic cylinder, etc. Products are applied very extensively, such as packing machinery, food machinery, printing machinery, textile machinery, purifying water and water treatment trade, automobile industry, mould industry and household use etc.
On the basis of introducing all kinds of talents, in the spirit of constant innovation and improving quality, with sincerity as our shield to meet the demands of clients, our factory controls quality in the process of design, production and delivery, providing good quality products for every client. Our products find good markets both at home and abroad, which are exported to the countries and regions of the United States, Germany, the Middle East, United Arab Earbuda, Sweden, Singapore, Viet Nam, Spain, Syria, Thailand, Turkey, Philippines, Argentina, Lebanon, Liberia, Malaysia, Nether lands, Iran, India, Canada and Taiwan etc.
We will keep "excellent quality, good reputation"continuously. Welcome the massive old and new clients at home and abroad to keep or establish lasting cooperative relationship, seek for good development in business together. Hope to receive precious ideas and suggestions from domestic and overseas' Friends. Let us create good achievements in this hot spot and go out for a nice tomorrow together.
