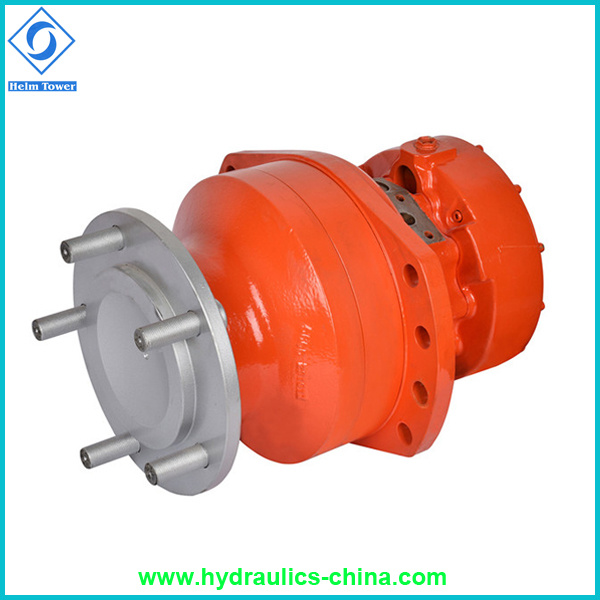

Poclain Ms11 Mse11 Hydraulic Piston Motor

Poclain Ms11 Mse11 Hydraulic Piston Motor
Supplier: Ningbo Helm Tower Noda Hydraulic Co., Ltd.
Price: US $ 1-2000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
Payments:
Paypal VISA master Discover union pay T/T
contact supplier Add to Cart

Product Specifications

Prod Model: MS11 series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Series: Poclain Ms11 Mse11 Series
Color: Yellow , Orange, Blue, Black, Gray
Place Of Original: China Mainland
Brand: Helm Tower
Performance: Large Torque with Low Speed
Type: Hydraulic Motor

Product Description

MS11 Hydraulic piston motor
Poclain hydraulic piston motor
Incurve Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control,

Application: As revolution mechanism of hydraulic system, used for forklift, skid steer loader,

Grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc.

Complete type example:
MS11-2-121-A11-2A50-0000
MS11-2-121-F11-2A50-0000
MS11-0-121-F12-1120-0000


MS11 Applications:
Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane
TypeHMS11-8HMS11-9HMS11-0HMS11-1HMS11-2
Displacement(ml/r)FullSemiFullSemiFullSemiFullSemiFullSemi
837418943471104852411475731259629
Max power(kw)44294429442944294429
Pressure discrepancy 10MPa Torque
(N. m)
12516131409391156676817148401882922
Rated torque(N. m)31273524391642864704
Rated pressure(MPa)2525252525
Max pressure(MPa)4040403535
Rated speed(r/min)6565656060
Speed range(r/min)0-1600-1600-1600-1500-150



Quick Details
Type: Hydraulic Motors
Model Number: MS11 MSE11
Brand Name: Helm Tower
Place of Origin: Zhejiang, China (Mainland)
Motor series: Poclain MS11 MSE11 replacement motor
Color: orang/yellow/blue/black optional
Performance: Low speed with large torque
Mounting: wheel type & shaft type
Brake: with brake & without brake optional
Speed: Single speed & duel (double ) speed
Displacement:730cc,837cc,943cc,1048cc,1147cc,1259cc,1263cc,404cc,1536cc,1687cc
Max. Pressure: 31.5 MPa
Max. Torque: 6800 N.m
Max. Power: 50 kW
Packaging & Delivery

Packaging Details:
Export Wooden Case
Delivery Detail:within 10 days after receive the payment


1. Hydraulic motor MS11 MSE11 features:

--  High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.
--  Low periph-eral speed
--  High efficient.
--  Long service life robust rolling bearing.
--  Drive shaft will support radial loads.
--  Low noise level.
--  High duty roller bearing for intermettent high pressure operation.
--  For continuous duty hydrostatic are availabe.
--  Excellent  starting characteristics.
--  High power density
--  Optional mounting position

2. Our MS11 MSE11 motor performance:
We can provide you MS02,MSE02,MS05,MSE05,MS08,MSE08,MS11,MSE11,MS18,MSE18,MS25,MS35,MS50,MS83, MS125 SERIES motor & related spare parts, repair parts, motor seal kits etc..
The perfomance of our motor as below:
Motor with brake & motor without brake.
Duel speed motor & single speed motor.
 Variable displacement motor.
Large torque with low speed.
3. Our advantages:

1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.
2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.
3).Reasonable price:our price system has been settled much lower than Poclain original motors.
4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.
5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge


Complete Model example for order :   MSE11-2-121-F12-1620-5780
Ningbo Helm Tower Noda Hydraulic Co., Ltd (Previously named Ningbo Wenkui Hydraulic Manufacturing Co., Ltd. ) is a subsidiary factory belongs to Wenkui Group Company. Which is a professional designer, manufacturer and exporter enterprise for MS hydraulic motor, MCR hydraulic motor, all kinds of hydraulic system and hydraulic spare parts. It obtained the Certificate of ISO9001: 2008 and ISO14001: 2004 Quality Management System, CCS certificate, Coal mine work safety License.

Our company is located in Ningbo High Technology Zone, Holding $5 million registered capital, covering area is over 10, 000 square meters. In the spirit of "concentration, profession, innovation" Ningbo Helm Tower Hydraulic Technology Co., Ltd. is dedicated to the research and development of hydraulic system and hydraulic components for long time, our products are widely used in marine, coal mine machinery and project machinery, metallurgy, agriculture, garden, environment protection synchronously and so on. We possesses over 100 high quality technology staff who consist of senior doctor, master, senior engineer, and assistant engineer work in the hydraulic industry for many years which can provide powerful technology and competitive advantage in product D&R, technology support and service, all of those lead to our MS hydraulic motor and MCR hydraulic motor can completely replace same type hydraulic motor of the oversea famous brand, our vane motor with three series of HVK, HVN, HVL total 10 size which can used in ship crane and port crane. Which can replace Japan IHI series vane motor. Due to the strong process capability, the quality of main parts processed by CNC can be guaranteed well. Not only the main parts of our products used high-grade alloy steel material like 20CrMnTi, 42CrMo, but also adopted advanced heat treatment technology including treatment of carbon penetration, quenching, salt bath and nitrogen treatment to promise the product quality, every single part is inspected and every product rigorously tested before it leaves our factory to ensure their unimpeachable standard and quality. After assembly, the whole machine will be tested on our test platform 100%.

The key parts such as screw cartridge valves, sealing, and screw bolts all were imported from USA, Germany, Italy, France and Taiwan.

We are a group manufacturing company owned more then 10 subsidiary factories. Consisting of head office, Ningbo Wenkui I/E Co., Ningbo Wenkui Hydraulic Manufacturing Co., Ningbo Helm Tower Hydraulic Motor Co., it's located in Ningbo, and other subsidiary factories which specializing in manufacturing orbit motors and piston pumps located in Shandong and Jiangsu province. With strict quality management system, advanced produce technical procedure, fine engineering, technical personnel and excellent after service, keeps the products are exported to Europe countries, USA, America, Australia, Middle East, part of Asia and other countries /region which win extremely praise and favor by the customers.

With competitive price, excellent performance and prompt delivery, holding the principle of "Exist by Quality, Develop by Credit", we sincerely welcome you to establish co-operative relationships with us in the near future.

Warmly welcome to contact us and visit our factories.
