Ningbo Fulong Synchronous Belt Co., Ltd. >> Poly V Belt, Multi V Belt, Power Transmission, Pj310

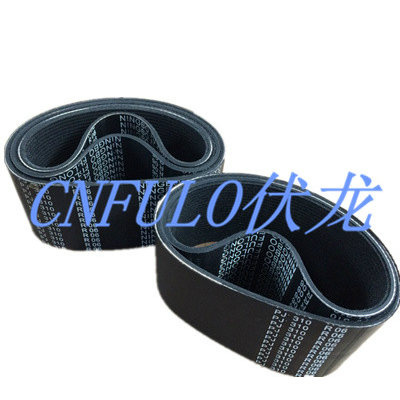

Poly V Belt, Multi V Belt, Power Transmission, Pj310

Name: Poly V Belt, Multi V Belt, Power Transmission, Pj310
Brand: china-manufacturer-directory.com
SKU: 763110575
Availability: InStock
Rating: 5 (87 reviews)

Supplier:	Ningbo Fulong Synchronous Belt Co., Ltd.
Price:	US $ 3.0-4.0/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PJ310
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Design as Requested
Type:	Rubber

Product Description

Poly V Belt, Multi V Belt, Power Transmission, Pj310

Raw materials:
Chloroprene rubber(CR) and Polyester cord

Advantages:
V-Ribbed Belt has certain cold and heat resistance, not only has good resistance of flexor flexible, anti-aging and the aging of ozone-resistant than ordinary unsaturated rubber , but aolso good oil resistance, solvent resistance and chemical stability, by adding short fiber reinforcement can withstand higher lateral pressure, wedge pressure with increasing performance, reducing stress after deformation.

Production:
Introducted foreign advanced technology and production equipment, and the main raw material (such as matrix materials, rubber, etc. ) are imported from foreign countries, sentinel procurement of leading professional production companies.

Note:
1.The belt pulley diameter should have suitable specifications to wedge slot type and the number of wedge belt.
2.V-Ribbed Belt belt in use piles of oil or water, should be promptly removed or wiped away;
3.V-Ribbed Belt packet angle too small to change the location of the back to increase the pulley kits angle;
4.V-Ribbed Belt belt tension is too small, should be appropriately increase the belt tension;

FAQ:
1.noise
V-Ribbed Belt as arising from slipping, the belt should be wiped away a timely manner;
V-Ribbed Belt wedge slot embedded foreign body should be set up for the belt running protective enclosures;
V-Ribbed Belt pulley is skewed, adjust pulley position;
V-Ribbed Belt in products used in a large vibration:
The tension of belt is too weak, should be appropriately increased tension;

2. wedge damage:
V-Ribbed Belt pulley and belt models do not match the specifications;
V-Ribbed Belt belt wedge solvents or other chemicals stained;
V-Ribbed Belt belt use ambient temperature is too high, should be improved cooling methods;
V-Ribbed Belt pulley process parameters do not meet standards or pulley rusty.

	(mm)		(mm)		(mm)		(mm)		(mm)		(mm)		(mm)
PJ356	356.00	PJ640	640.00	PJ886	886.00	PJ1089	1089.00	PJ1456	1456.00	PJ1960	1960.00	PJ3200	3200.00
PJ360	360.00	PJ646	646.00	PJ900	900.00	PJ1092	1092.00	PJ1460	1460.00	PJ1997	1997.00	PJ3416	3416.00
PJ366	366.00	PJ651	651.00	PJ906	906.00	PJ1098	1098.00	PJ1480	1480.00	PJ2000	2000.00	PJ3476	3476.00
PJ370	370.00	PJ656	656.00	PJ914	914.00	PJ1102	1102.00	PJ1488	1488.00	PJ2004	2004.00	PJ3572	3572.00
PJ376	376.00	PJ660	660.00	PJ917	917.00	PJ1106	1106.00	PJ1510	1510.00	PJ2016	2016.00	PJ3598	3598.00
PJ381	381.00	PJ666	666.00	PJ927	927.00	PJ1112	1112.00	PJ1511	1511.00	PJ2035	2035.00	PJ3686	3686.00
PJ390	390.00	PJ670	670.00	PJ931	931.00	PJ1117	1117.00	PJ1516	1516.00	PJ2040	2040.00	PJ4361	4361.00
PJ392	392.00	PJ674	674.00	PJ940	940.00	PJ1124	1124.00	PJ1523	1523.00	PJ2050	2050.00	PJ4456	4456.00
PJ401	401.00	PJ685	685.00	PJ942	942.00	PJ1130	1130.00	PJ1551	1551.00	PJ2060	2060.00	PJ4503	4503.00
PJ406	406.00	PJ690	690.00	PJ944	944.00	PJ1137	1137.00	PJ1570	1570.00	PJ2075	2075.00	PJ4646	4646.00
PJ411	411.00	PJ700	700.00	PJ952	952.00	PJ1144	1144.00	PJ1581	1581.00	PJ2096	2096.00	PJ4807	4807.00
PJ416	416.00	PJ711	711.00	PJ955	955.00	PJ1152	1152.00	PJ1593	1593.00	PJ2100	2100.00	PJ5377	5377.00
PJ431	431.00	PJ720	720.00	PJ958	958.00	PJ1156	1156.00	PJ1600	1600.00	PJ2110	2110.00	PJ5511	5511.00
PJ442	442.00	PJ736	736.00	PJ965	965.00	PJ1166	1166.00	PJ1635	1635.00	PJ2124	2124.00	PJ5926	5926.00
PJ446	446.00	PJ740	740.00	PJ966	966.00	PJ1168	1168.00	PJ1641	1641.00	PJ2140	2140.00	PJ6027	6027.00
PJ457	457.00	PJ752	752.00	PJ970	970.00	PJ1180	1180.00	PJ1636	1636.00	PJ2145	2145.00	PJ6196	6196.00
PJ477	477.00	PJ761	761.00	PJ978	978.00	PJ1185	1185.00	PJ1650	1650.00	PJ2210	2210.00	PJ6276	6276.00
PJ482	482.00	PJ766	766.00	PJ981	981.00	PJ1194	1194.00	PJ1655	1655.00	PJ2225	2225.00	PJ7056	7056.00
PJ498	498.00	PJ772	772.00	PJ986	986.00	PJ1216	1216.00	PJ1660	1660.00	PJ2256	2256.00	PJ7141	7141.00
PJ505	505.00	PJ776	776.00	PJ991	991.00	PJ1220	1220.00	PJ1696	1696.00	PJ2267	2267.00
PJ508	508.00	PJ787	787.00	PJ996	996.00	PJ1225	1225.00	PJ1712	1712.00	PJ2337	2337.00
PJ521	521.00	PJ796	796.00	PJ1003	1003.00	PJ1230	1230.00	PJ1725	1725.00	PJ2340	2340.00
PJ528	528.00	PJ801	801.00	PJ1008	1008.00	PJ1235	1235.00	PJ1730	1730.00	PJ2376	2367.00
PJ533	533.00	PJ806	806.00	PJ1014	1014.00	PJ1242	1242.00	PJ1735	1735.00	PJ2405	2405.00
PJ541	541.00	PJ810	810.00	PJ1016	1016.00	PJ1256	1256.00	PJ1740	1740.00	PJ2465	2465.00
PJ552	552.00	PJ813	813.00	PJ1020	1020.00	PJ1270	1270.00	PJ1751	1751.00	PJ2575	2575.00
PJ559	559.00	PJ816	816.00	PJ1022	1022.00	PJ1290	1290.00	PJ1766	1766.00	PJ2605	2605.00
PJ571	571.00	PJ822	822.00	PJ1028	1028.00	PJ1300	1300.00	PJ1783	1783.00	PJ2665	2665.00
PJ586	586.00	PJ827	827.00	PJ1032	1032.00	PJ1315	1315.00	PJ1790	1790.00	PJ2755	2755.00
PJ594	594.00	PJ830	830.00	PJ1036	1036.00	PJ1321	1321.00	PJ1812	1812.00	PJ2834	2834.00
PJ600	600.00	PJ838	838.00	PJ1041	1041.00	PJ1330	1330.00	PJ1855	1855.00	PJ2836	2836.00
PJ605	605.00	PJ841	841.00	PJ1046	1046.00	PJ1337	1337.00	PJ1861	1861.00	PJ2845	2845.00
PJ606	606.00	PJ846	846.00	PJ1054	1054.00	PJ1341	1341.00	PJ1876	1876.00	PJ2879	2879.00
PJ610	610.00	PJ851	851.00	PJ1060	1060.00	PJ1355	1355.00	PJ1880	1880.00	PJ2926	2926.00
PJ614	614.00	PJ856	856.00	PJ1067	1067.00	PJ1394	1394.00	PJ1892	1892.00	PJ2940	2940.00
PJ620	620.00	PJ864	864.00	PJ1072	1072.00	PJ1396	1396.00	PJ1900	1900.00	PJ2960	2960.00
PJ626	626.00	PJ870	870.00	PJ1078	1078.00	PJ1420	1420.00	PJ1920	1920.00	PJ3030	3030.00
PJ635	635.00	PJ876	876.00	PJ1080	1080.00	PJ1435	1435.00	PJ1941	1941.00	PJ3086	3086.00
PJ638	638.00	PJ880	880.00	PJ1087	1087.00	PJ1444	1444.00	PJ1950	1950.00	PJ3150	3150.00

Our company was founded in 1984. We have specialized in industrial rubber timing belts, automotive timing belts, variable-speed belts, poly-V belts,
Double-sided timing belts, cutting V-belts, flat belts and pulley with Fulong
Brand. And timing belt and pulley have passed national technical appraisal since 1987. It is currently specialized enterprise in manufacturing timing belt
Series with widest scope, most complete variety and best quality in China.
And yearly production capacity is 8 million all kinds of driving belts and 400 thousand pulley. The products are sold to 30 provinces and thousands of
Companies in domestic, and export to Southeast Asia, Middle East, America,
Japan and other regions. In order to extend our sales and open the marke,
Ningbo Fulong have opened the sales center at Shanghai (Shanghai Fulong Synchronous Belt Co., Ltd) and branched companies at Beijing & Guangzhou
City. We will use Shanghai big city visualize to meet different parts customers
The company covers an area of 45, 000 square meters and the fixed asset is RMB 120million. We have about 500 employee, included 80 technologies and 18 technical experts hired from abroad The company has advanced production equipments, some kinds of testing equipments and instruments. In recent years, we have invested 50 million RMB on a large scale of technical renovation, purchase a number of advanced production and testing equipments and all of
Our main materials are imported from abroad, in order to improve the production capacity, technical level and quality of products.
The company is the national medium-sized enterprise and wins provincial "High-tech Enterprise", "Excellent Enterprise of Technological Progress", "Spark Model Enterprise" and "Management Model Enterprise". Our measuring and archives management are Secondary to the nation, and our credit rating is AAA enterprise.
According to the customers' product technical requirements, our technologies,
On the premise to provide clients with high quality products, we have
Formed a set of perfect and controllable management system from raw materials to finished product output. In order to ensure product quality and long-term stability, we have done the follow works.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 469
Plant Area: 78000 Square Meters
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 11~20 People
Export Year: 1991-01-01
Export Percentage: 41%~50%
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Africa, Australia, Domestic
Export Mode: Have Own Export License
Factory Address: Longshan Town, Cixi, Ningbo, Zhejiang, China
R&D Capacity: OEM, Own Brand(CNFULO)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$10 Million - US$50 Million
