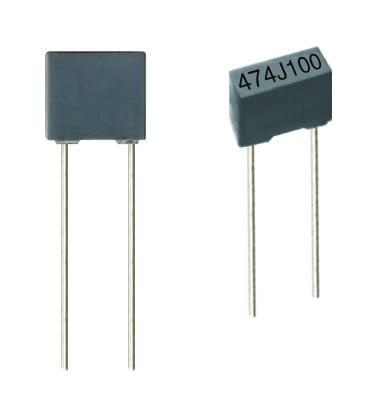

Box-type metallized polyester film capacitor (stacked version, P=5mm) CL71
1.Features and uses
This kind of capacitor applies stacked construction .It is sealed by the flame-retarded epoxy resin .It has good reliable , low loss , good electrical features , uniform dimension and self-healing effect . It is suitable for all kinds of radial taping and can be automatic assemble .It can be widely applied in all kinds of circuit of DC and pulse .
2.Specifications
| Reference standard | CB/T 15448-95(IEC384-19) |
| Climatic category | 55/100/56 |
| Rated voltae | 50,63,100VDC |
| Voltage proof | 1.6Ur |
| Capacitance range | 0.001~1.0uf |
| Capacitance tolerance | J:±5% K:±10% M:±20% |
| Dissipation factor | ≤0.01(1KHz ,20ºC) |
| Insulation resistance(IR) | Cr ≤0.33uF ≥15000MΩ |
| Cr > 0.33uF ≥5000S(20ºC,10V,1min) |
3.Dimensions(Unit:mm)
Capacitance
(uf) | 50/63V | 100V |
W
Max | H
Max | T
Max | P | d
±0.05 | W
Max | H
Max | T
Max | P | d
±0.05 |
| 0.001 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0015 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0022 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0033 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0047 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0056 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0068 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.0082 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.01 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.012 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.015 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.018 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.022 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.027 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.033 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.039 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.047 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.056 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.068 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 |
| 0.082 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 7.5 | 3.5 | 5.0 | 0.5 |
| 0.1 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 7.5 | 3.5 | 5.0 | 0.5 |
| 0.12 | 7.2 | 6.5 | 2.5 | 5.0 | 0.5 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 |
| 0.15 | 7.2 | 7.5 | 3.5 | 5.0 | 0.5 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 |
| 0.18 | 7.2 | 7.5 | 3.5 | 5.0 | 0.5 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 |
| 0.22 | 7.2 | 7.5 | 3.5 | 5.0 | 0.5 | 7.2 | 10 | 5 | 5.0 | 0.6 |
| 0.27 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 | 7.2 | 11 | 6 | 5.0 | 0.6 |
| 0.33 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 | 7.2 | 11 | 6 | 5.0 | 0.6 |
| 0.39 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 |
|
|
|
|
|
| 0.47 | 7.2 | 9.5 | 4.5 | 5.0 | 0.6 |
|
|
|
|
|
| 0.56 | 7.2 | 10 | 5 | 5.0 | 0.6 |
|
|
|
|
|
| 0.68 | 7.2 | 11 | 6 | 5.0 | 0.6 |
|
|
|
|
|
| 0.82 | 7.2 | 11 | 6 | 5.0 | 0.6 |
|
|
|
|
|
| 1.0 | 7.2 | 11 | 6 | 5.0 | 0.6 |
|
|
|
|
|
| Prod Model: |
cl71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Space: |
5mm |
| Rated Voltage: |
50VDC 63VDC 100VDC |
| Voltage Proof: |
1.6UR |
| Type: |
Polyester Film Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
0.001~1.0UF |
| Electrolyte: |
Box-Type Metallized Polyester Film Capacitor |
| Tuning: |
Metallized Polyester Film Capacitor (Stacked P=5) |
| Filter: |
Metallized Polyester Film Capacitor |
