Polypropylene Capacitor Cbb13

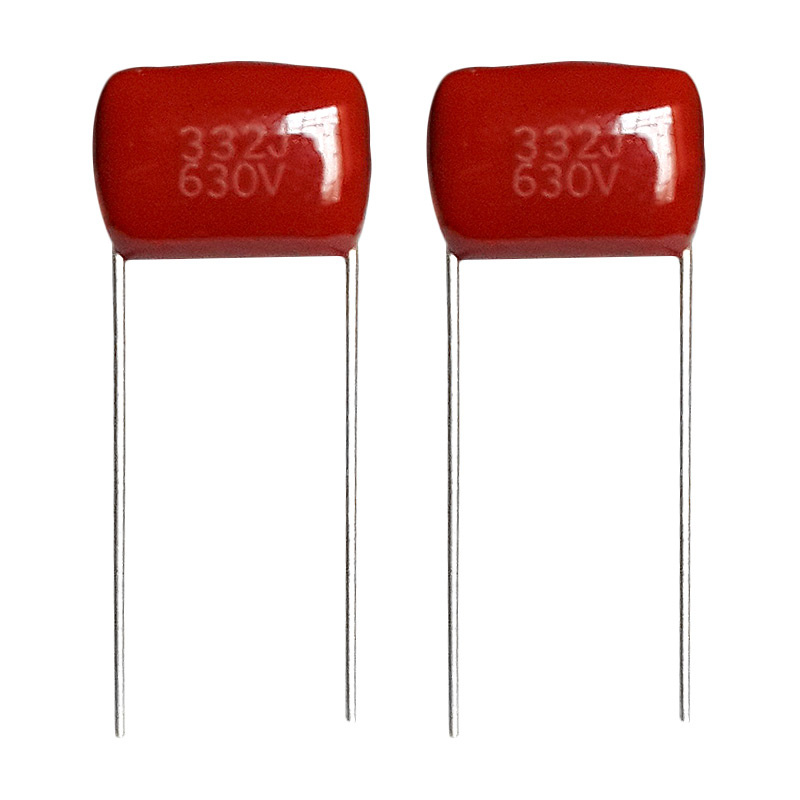

Name: Polypropylene Capacitor Cbb13
Brand: China-Manufacturer-Directory.com
SKU: 771666855
Availability: InStock
Rating: 4.4 (50 reviews)

Supplier:	Zhengli Group Company Limited
Price:	US $ 0.03/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CBB13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	3300PF
Electrolyte:	Polypropylene Film Capacitor
Tuning:	Polypropylene Film Capacitor
Filter:	Polypropylene Film Capacitor

Product Description

Polypropylene film capacitor CBB13 (PPN)

1.Features and uses
High insulation resistance and excellent moisture resistance because of epoxy resin coating , excellent frequency and temperature characteristic , very small loss even as high frequency ,most suitable for high frequency ,large current circuits and widely used in high frequency , DC,AC and pulse circuits .

2.specifications

Reference standard	GB10188(IEC60384-13)
Climate category	40/85/21
Rated voltage (Ur)	100,250,400,630,1000,1200VDC
Voltage proof	2Ur(5s)
Capacitance range	0.001~0.33uF
Capacitance tolerance	J:±5% K:±10% M:±20%
Dissipation factor	≤0.001(1KHz ,20ºC)
Insulation resistance	Cr ≤0.1uF ≥30000MΩ
Insulation resistance	Cr > 0.1uF ≥3000S(20ºC,1min)

3.Dimensions(unit :mm)

Capacitance (uf)	100V					250V					400V					630V					1000V					1600V
Capacitance (uf)	W max	H max	T max	P ±1	d ±0.05	W max	H max	T max	P ±1	d ±0.05	W max	H max	T max	P ±1	d ±0.05	W max	H max	T max	P ±1	d ±0.05	W max	H max	T max	P ±1	d ±0.05	W max	H max	T max	P ±1	d ±0.05
0.001	12	10	6	8	0.6	12	10	6.5	9	0.6	12	10	6.5	8	0.6	14	11	6.5	8	0.6	25	14	10	17	0.8	25	16	10	17	0.8
0'0012	12	10	6	8	0.6	12	10	6.5	9	0.6	12	10	6.5	8	0.6	14	11	6.5	8	0.6	25	14	10	17	0.8	25	16	10	17	0.8
0.0015	12	10	6	8	0.6	12	10	6.5	9	0.6	12	10	6.5	8	0.6	14	11	7	8	0.6	25	16	10	17	0.8	25	18	10	17	0.8
0.0018	12	10	6	8	0.6	12	10	6.5	9	0.6	12	10	6.5	8	0.6	15	12	7	10	0.6	25	16	11	17	0.8	25	18.5	11.5	22	0.8
0.0022	12	10	6	8	0.6	14	11	7	10	0.6	13	12	7	8	0.6	15	12	7.5	10	0.6	25	16	11	17	0.8	30	17	11	22	0.8
0.0027	12	10	6	8	0.6	14	11	7	10	0.6	13	12	8	8	0.6	15	12	8	10	0.6	25	16	11.5	17	0.8	30	19.5	11.5	22	0.8
0.0033	12	10	6.5	8	0.6	14	11	7	10	0.6	13	12	8	8	0.6	15	13	8.5	10	0.6	25	17.5	12	17	0.8	30	21	13	22	0.8
0.0039	12	10	6.5	8	0.6	14	11	7	10	0.6	13	12	8	8	0.6	15	13	8.5	10	0.6	25	17.5	13	17	0.8	30	21.5	14	22	0.8
0.0047	12	10	7	8	0.6	14	12	9	10	0.6	14	12	8	10	0.6	15	13	9	10	0.6	25	18.5	13	17	0.8	30	23	15	22	0.8
0.0056	12	10	7	8	0.6	14	12	9	10	0.6	14	12	9	10	0.6	19	12.5	8.5	14	0.6	25	19.5	13.5	17	0.8	30	24	17	22	0.8
0.0068	12	10	7	8	0.6	14	12	9	10	0.6	14	13	9.5	12	0.6	19	13	8.5	14	0.6	25	21.5	14	17	0.8	35	23	15	27	0.8
0.0082	12	10	7	8	0.6	14	13	10	10	0.6	16	13	9.5	12	0.6	19	13	8.5	14	0.6	30	16.5	10	22	0.8	35	24	16	27	0.8
0.01	14	11	7.5	8	0.6	14	13	10	10	0.6	16	14	10	12	0.6	19	15	9	14	0.8	30	19.5	13	22	0.8	35	26	18	27	0.8
0.012	14	11	7.5	10	0.6	19	13	9	14	0.6	19	14	9	14	0.6	19	16	9.5	14	0.8	30	21.5	14	22	0.8
0.015	14	11	7.5	10	0.6	19	13	9	14	0.6	19	14	9	14	0.8	19	16	9.5	14	0.8	30	23.5	15	22	0.8
0.018	14	12	7.5	10	0.6	19	14	9	14	0.6	19	14	10	14	0.8	24	15.5	9.5	17	0.8	35	23.5	13.5	27	0.8
0.022	14	12	8	10	0.6	19	14	10	14	0.8	19	17	11	14	0.8	24	17	10	17	0.8	35	25	15	27	0.8
0.027	14	13.5	8	10	0.6	19	16	10	14	0.8	24	17	9.5	17	0.8	24	19	10	17	0.8
0.033	17	13.5	8	10	0.6	19	16	10	14	0.8	24	17	10	17	0.8	24	19	11	17	0.8
0.039	17	13.5	8	10	0.6	19	17	11	14	0.8	24	19	10	17	0.8	24	21	12	17	0.8
0.047	17	14	8.5	10	0.6	24	17	11	17	0.8	24	19	10	17	0.8	24	21	12	17	0.8
0.056	17	14	8.5	10	0.6	24	18	11	17	0.8	24	19	10.5	17	0.8	29	21	12	22	0.8
0.068	20	14	8.5	14	0.6	24	18	11	17	0.8	29	19.5	12	22	0.8	29	22	13	22	0.8
0.082	20	15	9.5	14	0.8	24	19	12	17	0.8	29	19.5	12	22	0.8	29	23	15	22	0.8
0.1	20	15	9.5	14	0.8	24	19	12	17	0.8	29	22	13	22	0.8	29	24	15	22	0.8
0.12	20	16	10	14	0.8	24	20	13	17	0.8
0.15	24	16	10	17	0.8	29	20	13	22	0.8
0.18	24	17	10	17	0.8	29	23	14	22	0.8
0.22	24	18	12	17	0.8	29	23	14	22	0.8
0.27	24	18	12	17	0.8	29	27	16	22	0.8
0.33	30	20	13	22	0.8	29	27	19	22	0.8

Zhengli Group Co., Ltd. is a large group company, founded in 2006. It is dealing with capacitors and resistors, including disc ceramic capacitor (50V~15KV ), film capacitor, ZVR zinc oxide varistor, NTC thermistor, safety capacitor ( Y1, Y2, X1 ), safety capacitor (MKP-X2 ).

Offering Capacitors and Resistors for 9 Years

Founded in 2006, Zhengli group co Ltd holds an area of 10, 000 square meters and employs 300 staff, including 20 R&D engineers and 20 QC staff with 10 years' experience. Our main product categories are ceramic capacitor (50V-15KV), film capacitor, ZVR zinc oxide varistor, NTC thermistor, safety capacitor ( Y1, Y2, X1 ), safety capacitor (MKP-X2 ). Our products are widely used on electronic products, such as large or small household electric appliances, power supplies, chargers, communication equipment, computers and peripherals, and lighting appliances.

Large Monthly Capacity to Complete Volume Orders Rapidly

We own 17 automatic production lines and have developed a three-stage production line for AC ceramic capacitors (Y type) by ourselves. Our automatic production is ahead of most manufacturers in mainland China, producing 20 million AC ceramic capacitors (Y1/X1, Y2/X1), 5 million AC film capacitors (MKP-X2), 5 million metallized film capacitors, 5 million ZVR zinc oxide varistor & NTC thermistor and 5 million high-, medium- and low- dielectric ceramic capacitors each month. Because of our hard work, we have obtained three innovation patents and 13 utility patents.

Meeting International Standards like UL and VDE

We have a complete range of certifications regarding product safety, environmental protection and company management. For safety, we have UL, cUL, VDE, ENEC, CQC, SEV, SEMKO, NEMKO, DEMKO, and FIMKO approvals. Our company is also ISO 9001: 2008- and ISO 14001: 2004-certified. Based on QC 080000: 2005 regulations, we have established a Hazardous Substance Process Management System to restrict hazardous substances. All of our products are compliant with the RoHS and REACH Directives plus our ceramic capacitors are free of halogens, phthalates and polynuclear aromatic hydrocarbons. They have been approved by GB (China) and IEC as well.

Contact us now to see how Panasonic, Samsung, Vtech, TCL and Atech are benefiting from us.
