Polypropylene Geotextile Filter Fabric Price for Road Construction
Product Specifications
| Prod Model: |
geotextile fabric |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Qingdao |
| Weight: |
100-800G/M2 |
| Orgin: |
Shandong |
| Width: |
1-9m |
| Length: |
50m or as Request |
| Kind: |
Woven |
Product Description

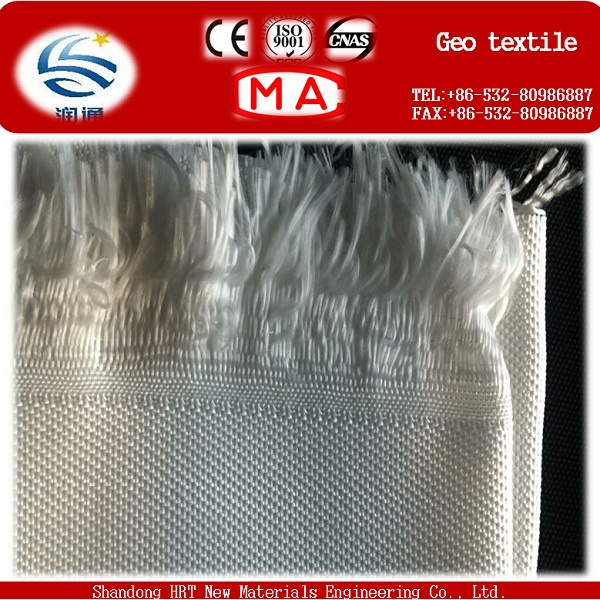

Polyprolylene Woven Geotextile for Road Construction
Packaging & Delivery
Packaging Detail:
Packed with plastic woven bag. Or Packed as customers' requests.
Delivery Detail: For 40HC, within 7~10 days after receipt of L/C or deposit
Geotextile Filter Fabric Price for Road Construction
Specifications
1. Plastic woven geotextile
2. Materials: PP
3. Tensile strength: 15~100kn/m
4. Unit weight: 100~400g/m2
5. Width: 1 ~6m
Application: Used in dam, tunnel, reservoir, channel and roofing for anti-leakage, It laso used in scrap yard protection.
Item
|
Index
|
20-15
|
30-22
|
40-28
|
50-35
|
60-42
|
80-56
|
100-70
|
Breaking strength at warp direction (kN/m) ≥
|
20
|
30
|
40
|
50
|
60
|
80
|
100
|
Breaking strength at
weft direction (kN/m) ≥
|
15
|
22
|
28
|
35
|
42
|
56
|
70
|
Elongation at break (%) ≤
|
28
|
Trapezoid tearing strength( warp direction ) (kN) ≥
|
0.3
|
0.45
|
0.5
|
0.6
|
0.75
|
1.0
|
1.2
|
Bursting strength (kN) ≥
|
1.6
|
2.4
|
3.2
|
4.0
|
4.8
|
6.0
|
7.5
|
Vertical permeability coefficient (cm/s)
|
10 -1 ~10 -4
|
Effective pore size O 95 , mm
|
0.08~0.5
|
Mass per unit area (g/m2 )
|
120
|
160
|
200
|
240
|
280
|
340
|
400
|
Mass error in unit area (%)
|
± 10
|
± 10
|
± 10
|
± 10
|
± 10
|
± 10
|
± 10
|
Shandong Hengruitong HRTNew Materials Engineering Co., Ltd. is a collection development, production, sales and after-sales service for the high-tech enterprise, founded in 2006, total assets of 180 million, covers an area of 180 acres, the existing staff 810 people, each class technical staff of 120 people. The company is located in the northwest of the famous historical city - Ling County, Texas. Close to the Beijing-Shanghai high-speed railway, Beijing-Fuzhou Expressway, 104 State Road, adjacent to Qingdao, Yantai, Tianjin three major waterway ports, with unique geographical conditions, transportation is very convenient.
Company products are three-dimensional composite drainage network, GCL, geomembrane, impermeable membrane, geotextile, Composite geomembrane, waterproof board, geogrid, geonet, geocell drainage series and so on. The main production equipment imported from Germany, USA, Italy, and Taiwan, the company has sophisticated detection equipment, advanced technology and strict quality control quality management system, through international IS9001-2000 quality system certification. All products produced using ISO and adopted by the Provincial Technical Supervision standard acceptance, stable and reliable quality, excellent reach the international level, the annual tons, second to none in the country. Products at reasonable prices, improve service, it is exported to Europe, America, Japan, China, Hong Kong and Southeast Asia. The company's products are widely used: Roads, railways, tunnels, underground pipeline construction, landfill engineering, reservoir engineering, and Salt Lake dam seepage construction.
Companies adhering to the "integrity-based, quality of survival, to species development plans" business principles. Rely on scientific and technological development, adhere to innovation, technology as the core, continue to provide users with high-quality products is our constant pursuit.
