Product Specifications
Prod Model: |
Elite |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
PP Polypropylene Reinforcing Micro Fiber |
Length: |
Times of 4mm/6mm with 1mm More or Less |
Raw Material: |
Polypropylene |
Fiber Diameter: |
20um-30um |
Tensile Strength: |
450MPa Min |
Crack Elongation: |
20+/-5% |
Density(g/cm3): |
0.91+/-0.01 |
Acid &Alkali Resistance: |
Strong |
Certificate 1: |
CE |
Certificate 2: |
ISO |
Usage: |
Concrete |
Material: |
100% Polypropylene |
Color: |
White |
Feature: |
Reinforcement |
Fiber Type: |
Monofilament |
Pattern: |
Monofilament |
Width: |
as Per Order |
Function: |
Reinforcement |
Structure: |
Micro Fiber |
Product Description

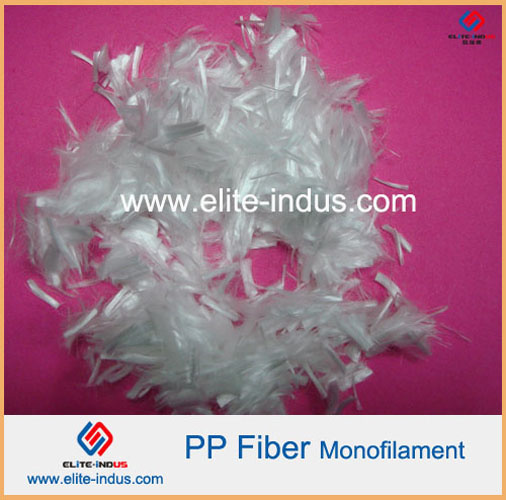

Polypropylene Reinforcing Fiber PP Microfiber
1,PP MicroFiber Description:
EltFiber-PPMN monofilament fiber was produced by referring foreign advanced technology for fiber spinning, modified by adding functional additive and special surface-treating. Mixing into cement concrete, it has many advantages such as good dispersing, better water affinity, strong linking force. It is suited to reinforce and crack-resist to every kinds of cement concrete and mortar, specially used in engineering of building surface, floor, wall etc.
2,PP MicroFiber Brief specification:
Raw Material : | Polypropylene | Crack Elongation: | 20+/-5% |
Fiber Type : | monofilament | Fiber Diameter: | 20um-30um |
Melting Point(C Deg.) : | 160 - 170 | Density(g/cm3) : | 0.91+/-0.01 |
Acid &Alkali Resistance : | Strong | Tensile Strength(MPa): | 450 min. |
Length: | 4,6,8,12,16,18,20,24,28,30mm times of 4mm or 6mm with 1mm more or less | water absorbency : | NO |
3,Typical physical properties:
(1 )PP MicroFiber Functions:
A.Resist to shrink & crack B.Increase seepage resistance
C.Increase friction resistance D.Increase freezing & thawing resistance
E.Improve tendons protection F.Replace steel net (using in plastering)
G. Prevent mortar split and crackle expansion
H.Increase impact resistance and peeling resistance
(2)PP MicroFiber Features:
A). No agglomeration and easily spread around in mortar or concrete. Guarantee the property of crack
resistance effectively
B). Apply conveniently. No need to change the proportion of mortar, and just put the fibers into the mortar
mixture and stir for a moment after adding water.
C). Has fine economic property. The equivalent dia. of polypropylene monofilament is only φ 0.02mm, so the
ratio of dia. And surface is high and on the basis of crack resistance, it can reduce the amount (0.6kg/m 3 ) and cut down the cost effectively.
D).Be better to plaster. Because a great number of thin fibers spread into mortar evenly, so the plastering
is much easier and this can improve the binding strength between surface and base.
E). The fiber has stable chemical property, strong acid &alkali resistance, and can be used in any
engineering projects.
4,PP microfiber Applications:
A). suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.
B). Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.
C). Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.
D). Suit for any mortar projects and common concrete projects.E). Highway, bridge and other roads.
5,PP Microfiber Applying Instruction:
A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar
Is enough, and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.
B). Stirring requirement: The proportion of cement, sand and aggregate is no
need to be changed. Put cement, aggregate, additive and fiber together, then stir after
adding enough water and time for stirring can be prolonged for 2~3 minutes in order to
make the compound mix completely. Also it can be mixed with cement and other
aggregates in advance, stirring by adding water at worksite before construction.
6, PP Microfiber packing:
1,600g or 900g or 1000g / pe film bag, 18kg or 20kg/ Plastic woven bag,8tons/1x20`gp,20tons/40"HQ
2,600g or 900g or 1000g / water soluble Paper bag,18kgs/carton,7.2tons/1x20`gp
3,Other packing can as per your request
