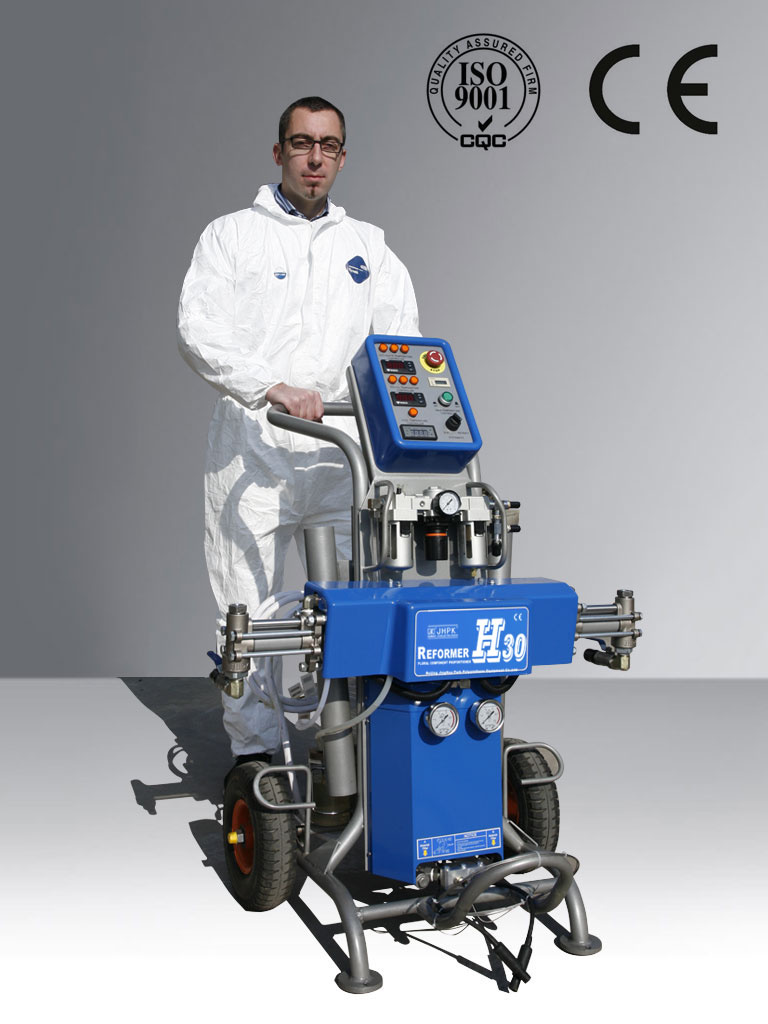

Product Specifications
| Prod Model: |
JHPK-H30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Air Spray Equipment |
| Certification: |
CE |
| Method Type: |
Automatic |
| Application: |
Hardware Spraying Equipment |
Product Description
Technical Parameter
Proportion of raw material: 1: 1standard fixed ratio
Viscosity range of raw material: 200~1000CPS
Output of raw material: 4-8KG
Heating device power for material: 3000W×2(or 4500 W×2)
Heating power for pipe heating: 3500W
Heating temperature range: 0c~88c
Electrical sourse: 380V(415V 208V...) 50Hz(60Hz) 14A×3+16A
Compressed air: 0.5~0.8Mpa 1m³/min
Output pressure of raw material per group: 5~13.8 Mpa
Shipping Parameter
Dimension: 800mm×900mm×1550mm
Net Weight: 125Kg
Beijing Jinghua Park Polyurethane Equipment Co. Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China. JHPK specializes in developing, manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system. With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
In order to meet the needs of our client we devote ourselves on continuous improvement on economy and innovation.
JHPK has been in possession of many new technology patents.
