Product Specifications
| Prod Model: |
FD-511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Custom |
| Heater Power: |
6-9kw/Side |
| Output: |
10-12kg/Min |
| Length Of Hose: |
15m |
| Max Length Of Hose: |
90m |
| Pressure: |
23MPa |
| Machine Type: |
Hydraulic |
| Weight: |
220kg |
| Type: |
High Pressure Airless Spray Equipment |
| Certification: |
SGS |
| Method Type: |
Automatic |
| Application: |
Porcelain Spraying Equipment |
Product Description

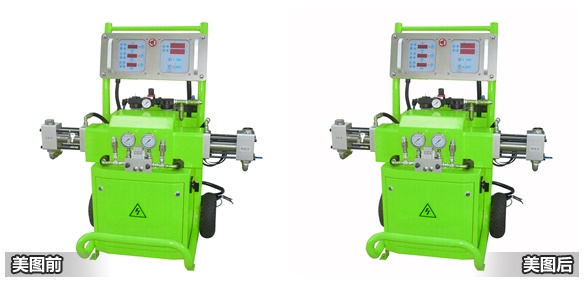

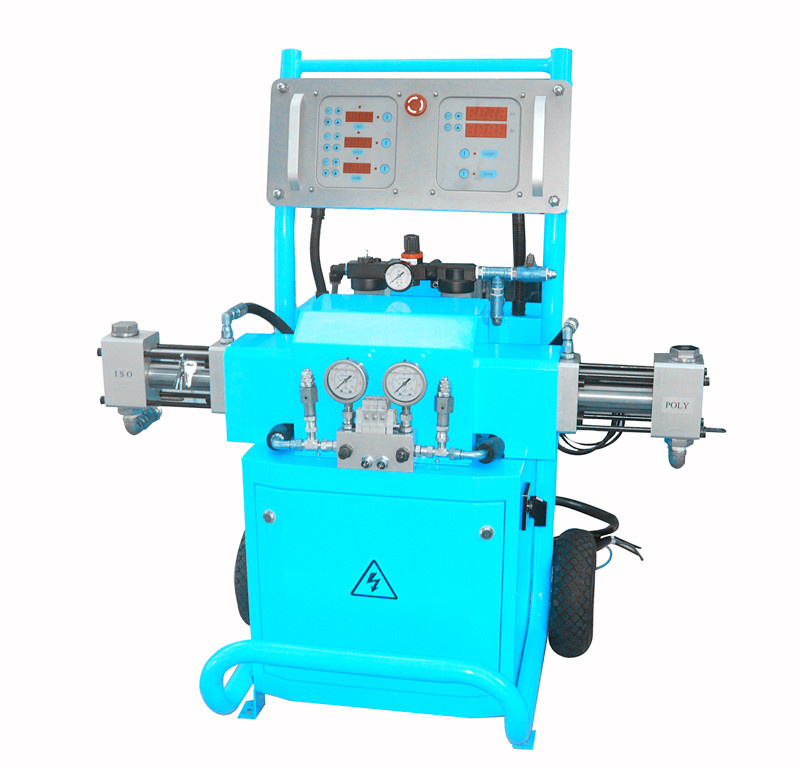

FD-511 Polyurethane and Polyurea spray foam machine
Application:
-Polyurethane/polyurea foaming
-Manufacture of polyurethane products
-Injection moulding
-Insulating homes
-Insulation of cold storage facilities, livestock buildings, hangars
-Insulation od basements, screeds, granaries, silos
-Sealing roofs, spraying vehicle chassis
-Other
Standard configuration
-Proportion Fixed Mainframe 1 set
-Self-cleaning foaming gun 1 set
-Feeding pump 2 sets

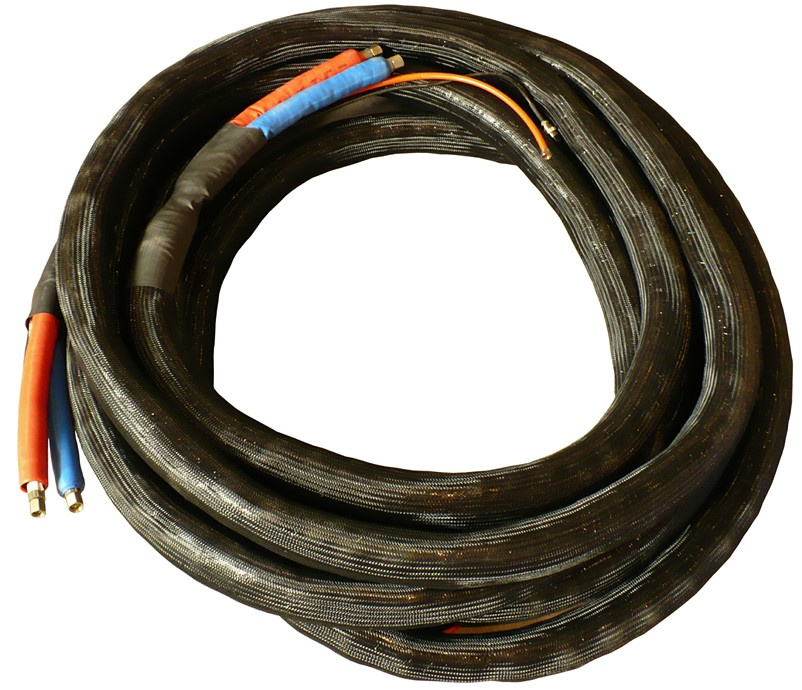

-Heating hose 49.2 feet (15m) Max can support 90m
-Connecting hose from feeding pump to machine 10 feet(3m)
-Connecting hose from heating hose to gun 5 feet(1.5m)
-Rings and Tools
Specifications:
-Ratio 1: 1
-The viscosity range of raw material 200-1000CPS (Under the operate temperature)
-Output 10-15kg/min
-Heater power 3kw/4.5kw/5kw/6kw(optional)
-Max pressure: 23.8Mpa(238bar)
-Max material temperature: 75
-Electricity supply: 3-phase/400V or 1-phase/220V
-Type of gun: Spray and injection
-CE certificate
-Advantage: Convenient, Stable, Effective
Jinan Saijun CNC Technology Co., Ltd is located in the advanced and new technology development district in the east of Jinan, Shandong, China.
The company devotes into the development, production and sales of mechanical and electrical products of laser engraving machine, laser cutting machine and high pressure foaming spray/injecting machine.
We have abundant technology power, professional and crack sale staff. There are sale agency and after-service center in most provinces of China. And we are marching into the international markets with our excellent products and after-sale services.
Our company has been devoting into the spending of intelligence. And several core technologies are researched and developed by ourselves. So the products are in with more priority than others. We also design and develop special facilities according to the customers' special orders.
If you are interested in our products, kindly contact us feel free! We will do our best for all of you!
