Product Specifications
| Prod Model: |
PD-IF-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
4.6kv |
| Max Temp: |
300 Centigrade |
| Tensile Strength: |
118mpa |
| Size: |
1000*2000mm |
| Materials: |
Phenolic Resin |
| Material: |
Resin |
| Application: |
Electrical Winding Insulation |
| Chemistry: |
Organic Insulation |
| Type: |
Solid |
| Thermal Rating: |
250 250 |
Product Description

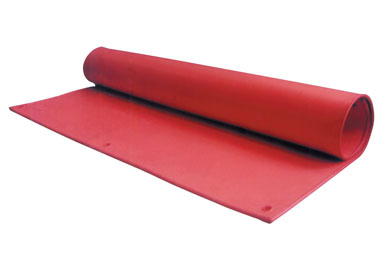

Elastomeric foam insulating sheet with PE foam(foam insulation board) FW-3025
It is similar as type FW-3025. But its some characteristics are lower than that of type FW-3025.
Properties: Excellent mechanical properties, high resistance to blows and vibrations, high resistance to friction, for general industrial applications.
Applications: Mechanized pieces of big size for mechanical applications such as ball bearing, silent gearing for modules superior to 2.5, ball bearing caps, pulleys. It also can be used as insulating construction parts in electrical equipment.
Sheet FW-3026
Properties: Excellent mechanical properties, high resistance to friction, low hygrometric degree, high resistance to splitting.
Applications: Mechanized pieces of big size for mechanical applications such as ball bearing, silent gearing for modules superior to 1.0, ball bearing caps, pulleys
|
NO. |
PROPERTIES 3025 |
UNIT |
STANDARD VALUE |
TESTING RESULT |
|
1 |
Flexural strength perpendicular to laminations |
MPa |
≥ 36 |
40 |
|
2 |
Impact strength parallel to laminations (Charpy) |
kJ/m 2 |
≥ 5 |
12 |
|
3 |
Dielectric strength perpendicular to lamination (in oil 90± 2° C) 1mm in thickness |
MV/m |
≥ 0.6 |
0.89 |
|
4 |
tensile strength |
Mpa |
≥ 34 |
37.5 |
|
5 |
Density |
g/cm 3 |
1.30-1.45 |
1.43 |
|
6 |
adhesive strength(> 10mm) |
|
|
|
