Product Specifications
| Prod Model: |
AOF500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pass Through Loss: |
< 1.5 Db |
| Accuracy *: |
±0.2 Db(Burst Signal:±0.5db) |
| Threshold Sets: |
10 |
| Data Storage: |
100 |
| Connector: |
SC/PC ( or Customize ) |
| Battery Charge: |
Yes |
| Manual Calibration: |
Yes |
| Operate Time: |
Above 36 Hours |
| Power Supply: |
3* AA Batteries or AC/DC Power Supply Adapter |
| Size(H*W*D): |
190mm *90mm * 40mm |
Product Description
Description :

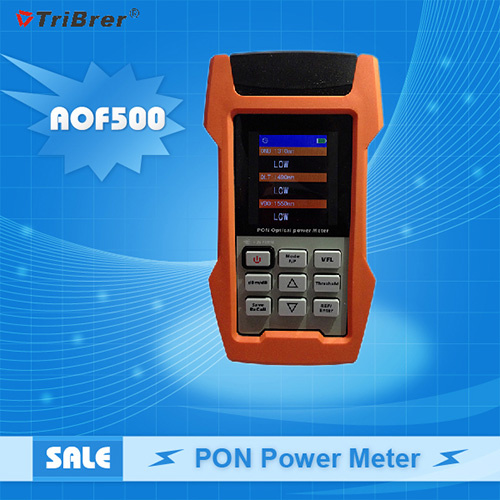

PON power meter is part of most essential tool for all technicians installing or maintaining PON networks. Tribrer PON power meters are well designed for all kinds of demanding applications on fiber measurement with different functions and parameters. With a rugged design, Tribrer EPN70 series PON power meters are built for top ruggedness and versatility, perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality.
Features:
Automated PASS/FAIL assessment
Quick and efficient visual inspection
Providing distinct power values for 1310nm,1490nm and 1550nm
Pass through measurement
Simultaneously measure and display the concurrent voice, data and video signals on different PON architectures
Manual calibration
One-year warranty and Three-year recommended calibration interval
| SPECIFICATIONS |
| Model | AOF500 |
| Measurement Range(dBm) | 1310 nm: +10 ~ - 40 dBm/1490 nm: +10 ~ - 50 dBm/1550 nm: +25 ~ - 50 dBm |
| Pass Through Loss | < 1.5 dB |
| Accuracy * | ±0.2 dB(burst signal:±0.5dB) |
| Threshold sets | 10 |
| Data Storage | 100 |
| Connector | SC/PC ( or customize ) |
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy |
| Battery Charge | Yes |
| Connect To PC | Optional function |
| Manual Calibration | Yes |
| Operate Time | Above 36 hours |
| Power Supply | 3* AA batteries or AC/DC power supply adapter |
* at 20±3ºC , with SC/PC connector, -10dBm
| GENERAL SPECIFICATIONS |
| Size(H*W*D) | 190mm *90mm * 40mm |
| Weight | about 450g |
| Storage Temperature | -20 -- +60ºC , < 90%RH |
| Operating Temperature | -10 -- +50ºC , < 90%RH |
| ACCESSORIES |
| Standard | Optional |
| Carrying bag*1 | AC/DC adapter*1 |
| Certificate of Calibration*1 | Hardware and Software of PC connectionr*1 |
| User's manual*1 |
|
Best Sun Communication (Shanghai) Co., Ltd., is the manufacturer which has 8 year experience in the field of optical fiber test equipments, our products are: OTDR, optical power meter, laser source, visual fault locator, pon power meter, fiber identifier, variable attenuator, E1 BER tester, optical talk set, fiber cleaver and many fiber tools.
