Kingto mainly specializes in manufacturing pond filtration equipment, landscape pond filter installation engineering
HBF Bio Filter for Ponds
Product description
The bio filter, combined with German advanced technology and independent R&D and made in China is patented. It is a very low maintenance filter using sponge and crystal bio to remove the waste and tiny particles in the water.
Working principle

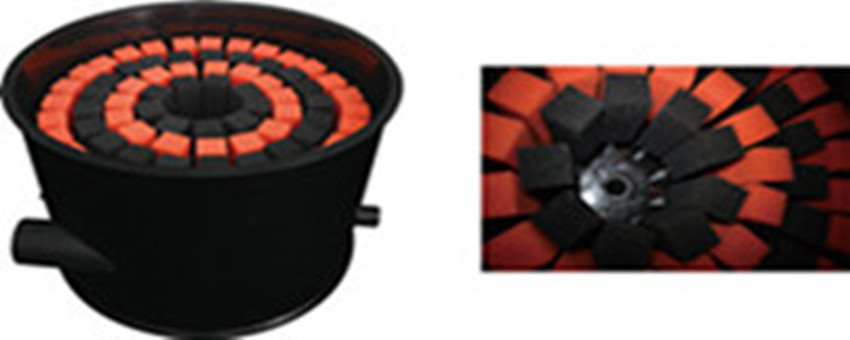

The bio filter equipped with sponges or sponge and Crystal Bio (HBF-7 to HPF-12) in the two floors of filter chambers. First, the polluted water input through bigger pipes below the sponges. Because of this Vortex-Effects, the big inlet pipe is tangential connected, making the water in the filter a slowly rotation that leads to a sinking of the bigger waste particles. Only the small, most biological particles are flowing through the sponges. So, the sponges don't get clogged too frequently. That also gives the sponges a very long life time.
The small particles as well as the dissolved organic substances can be cleared. Through nitrification and de-nitrification in deeper sponge layers the waste is transformed into nitrogen (N2) which discharges into the air. In the vertical lower filter chamber a second filter process can be implemented by using Crystal Bio filter media (HBF-7to HBF-12). The already well cleaned water can be additionally cleaned by De-Nitrification from biological waste to reach totally clear condition without any Nitrat.
With our Bio-Filter, there isn't the problem with algae in the pond!
The Bio-Filter of HDPE must prevent from sunshine. The UV-light can destroy the filter, also the heating of sunshine can lead to the filter instability!
Operation mode
Pump mode
Gravity mode
Product application scope
Ponds
Kingto Water Treatment Co., Ltd. is a Sino-German joint venture, has more than 20 years of professional experience in the pond filtration. Our filtration system is based on advanced water treatment technology and good quality equipment from Germany. We earn groups of customers by our strict working attitude and thoughtful after-sales service as most German companies do as always. Our products mainly apply to ponds and aquaculture water treatment, all our products are designed and manufactured by our own to ensure all of the product parts to meet German quality and standard.
Our automatic drum filter, system filter, Bio-filter and Air-Whirl filtration system are developed integrally features of German standards such as high-quality, high-performance, low-power, low-maintenance. In addition, mechanical power and bio-inorganic filtration system is currently the most efficient filtration technology for large flow-rate ponds. We expect our products and services can bring you a pool of crystal clear water!
We also serve professional design and consulting of fish ponds and aquaculture filtration system, as well as engineering installation and testing services.
