Porous Substrate Coated with Precious Metals

Name: Porous Substrate Coated with Precious Metals
Brand: china-manufacturer-directory.com
SKU: 700649812
Availability: InStock
Rating: 4.4 (98 reviews)

Supplier:	Wisdom Import & Export (Shanghai) Co., Ltd.
Price:	US $ 20/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WISDOM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Substrate:	Metal Substrate
Size:	More Size
Shape:	Can Be Customized to Your Requirement
Durability:	Above 120, 000 Kiometers
Warranty:	12 Months
Car Make:	Universal
MOQ:	1 Piece
Scope:	Apply to Auto/Motorcycle, Infrared Gas Stove, etc.
Place Of Origin:	Shanghai, China (Mainland)
Type:	Exhaust System
Material:	Ss/Fecral

Product Description

Product Description:

WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.

Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications .

Our product:

Brand	WISDOM
Body material	SS/FeCrAl
Size	more sizes and Spec. Can be customized to your engine
Shape	Round/ Racetrack/Oval or can be customized to your requirement "T" series(one hole)/ "S" series (Two holes)
Certification	ISO9001
MOQ	1 Piece
Packaging	all product package can be customized based on your requirements
Payment terms	L/C, T/T, Money Gram, Western Union
Conversion Rate	CO≥96,HC≥95,NO≥90
Coating losing rate	≤3
Scope	apply to Auto/Motorcycle, Infrared Gas Stove, etc.
Advantage	Low initiation temperature
	Low pressure drop
	High mechanical strength
	Excellent thermal and coking resistance
	Reliable braze welding intensity
	Durable heat-resisting impact performance
	Perfect catalyst coating binding force
	Good anti-shock
Service life	Above 120,000 KM
Usage	For exhaust system of general engine,off-road engine(gasoline engine and diesel engine), like garden machinery: Gasoline Chain Saw, Brush Cutter, Hedge Trimmer, Earth-Auger,
Price	The price is different in different specifications between USD1 and USD100.

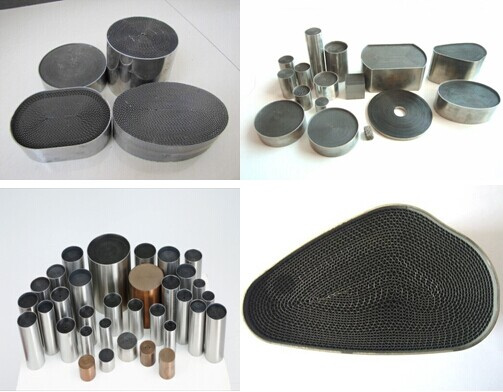

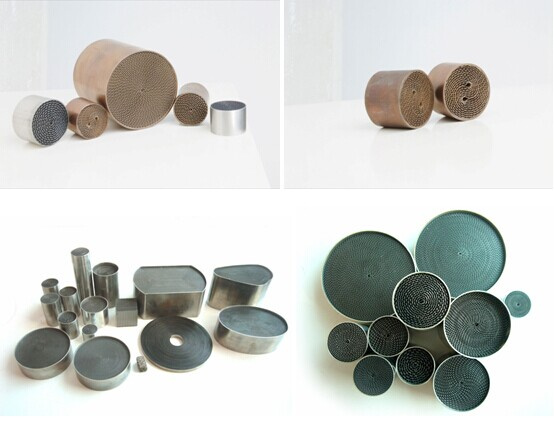

Honeycomb For Motorcycle

Honeycomb For Car
Honeycomb For Infrared Gas Stove
Un-standard Honeycomb

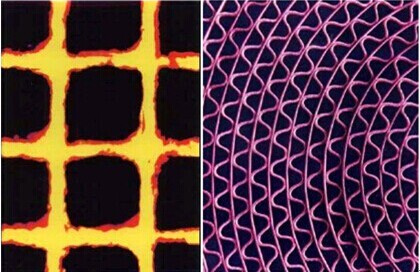

Why metallic?

Why metallic?
A metal-based monolith substrates offers many advantages in comparison with a ceramic one, for instance :

Shorter light off time

Less risk of overheating

Less back pressure

Larger effective area

Greater catalytic capacity

Smaller and more flexible design

Thinner walls

Higher mechanical strength

Better resistance to thermal shock

Specification
Material

Mantle	Matrix	Brazing
Ferritel (SUS444, SUS441, SUS430)	Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy Domestic FeCrAl(2073/216) Import FeCrAl(1.4725/1.4767)	Nickel base alloy
or Austenitic heat resistant stainless steel (SUS304)		Nickel base alloy

Dimension and Cell Densitities

Dimensions, mm	Cell densities,CPSI	Foil thickness,mm
round shape with diameter more than 10mm, length up to 800mm	50, 100, 200,250,300,400,500,600, 800,1000	0.03,0.04, 0.05,0.06,0.08,0.10
Oval shape
Others (Rectangle etc.)

Mark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.

Why did you choose us?
Quality Assurance. According to international standard, we introduce new techniques and new
processes, so we can keep improving product quality. There are strict processes and quality
manages to make sure the products keep updated, and be well received by users.

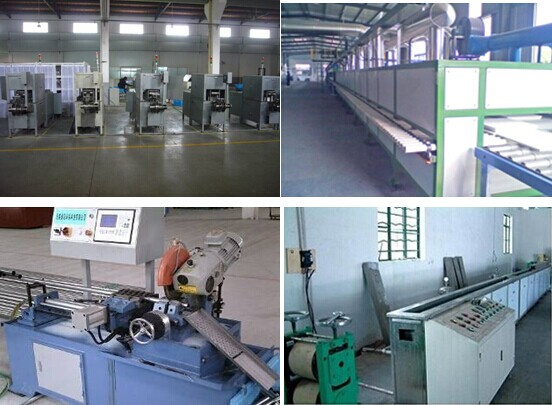

Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and
corrugated machine, foil wash machine,etc.

Principle. "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.
Welcome. We warmly welcome friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.

Price:The price is different in different specificatons between USD1 and USD100.

For more information on metal honeycomb, go to http://www.metalhoneycomb.com/about.html

Wisdom is a professional export-oriented company, which located in Shanghai, one largest commercial city in China. We mainly manage alloy products, winding machines, metallic substrates, construction products and other related products. Our company has been engaged in these fields for many years and has a sound reputation and credits among the foreign customers and suppliers with our great variety of first-rate quality products, novel design and good services. Our selling net-work has expanded to Middle East Area, European countries, America etc.

We warmly welcome friends of various circles to come to visit and talk about business with us. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
