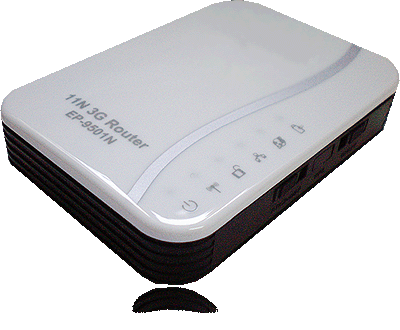

Portable 3G Wireless Router (OF-01-30-T1)

Product Specifications

Prod Model:	OF-01-30-T1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	90 X 70 X 30mm
Type:	Wireless
Network Site:	Border Router
Firewall:	Without Firewall
Transfer Rate:	54Mbps
Network:	HSDPA
Performance:	Line-Rate Router

Product Description

To share WiFi Internet connection via 3G connection. The Portable 3G Wireless Router is powered by re-chargable battery. It is compact in size so that it is easy to carry from place to place. To provide the Internet connection, either to plug in the 3G USB Modem to the USB Port of the device or plug in the wired internet access to the 10/100 Ethernet port of the device. The Portable 3G Wireless Router is complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3 and IEEE 802.3u Standard.

Features:
- IEEE 802.11N
Modulation: BPSK / QPSK / 16QAM / 64QAM
Data Transfer Rate:
6/9/12/18/24/36/48/54/300 Mbps
- IEEE 802.11G: OFDM
(Orthogonal Frequency Division Multiplexing)
Data Transfer Rate:
6/9/12/18/24/36/48/54Mbps
- IEEE 802.11B: DSSS
(Direct Sequence Spread Spectrum)
Modulation: DBPSK / DQPSK / CCK
Data Transfer Rate: 1/2/5.5/11Mbps
- Operation Mode: Adhoc, Infrastructure
(Access Points is needed)
- Tranmitter Power:
17dBm @11B, 14dBm @11G

Method of connection
- one USB port for 3G USB Modem
- one 10/100Mbps Auto-Negotiation Ethernet port

Encryption Method
- WPS (Wi-Fi Protected Setup)
- 64/128-bit WEP, WPA, WPA2, WPA&WPA2

Key Features
- Support 3 working modes:
Wireless Router, Wireless AP, Client
- Hardware Switch to control the working modes
- Support xDSL/Cable Modem, static and dynamic IP in community networking
- Support remote/local Web management
- Support Auto MDI/MDIX
- Support LAN access control over Internet connection
- Support WDS wireless network extension
