Dalian Huarui Heavy Industry Cnc Equipment Co., Ltd. >> Portable CNC Cutting Machine (HBST2005LCD-1200x2000)

Portable CNC Cutting Machine (HBST2005LCD-1200x2000)

Portable CNC Cutting Machine (HBST2005LCD-1200x2000)
Supplier: Dalian Huarui Heavy Industry Cnc Equipment Co., Ltd.
Price: US $ 3500/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF
contact supplier

Product Specifications

Prod Model: HBST2005LCD-1200x2000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Size: 1700x2500 mm
Effective Cutting Size: 1200X2000 mm
Control Mode: CNC, automatic
Nestsoftware: FastCAM Professional Edtion
Process Usage: Metal-Cutting CNC Machine Tools

Product Description

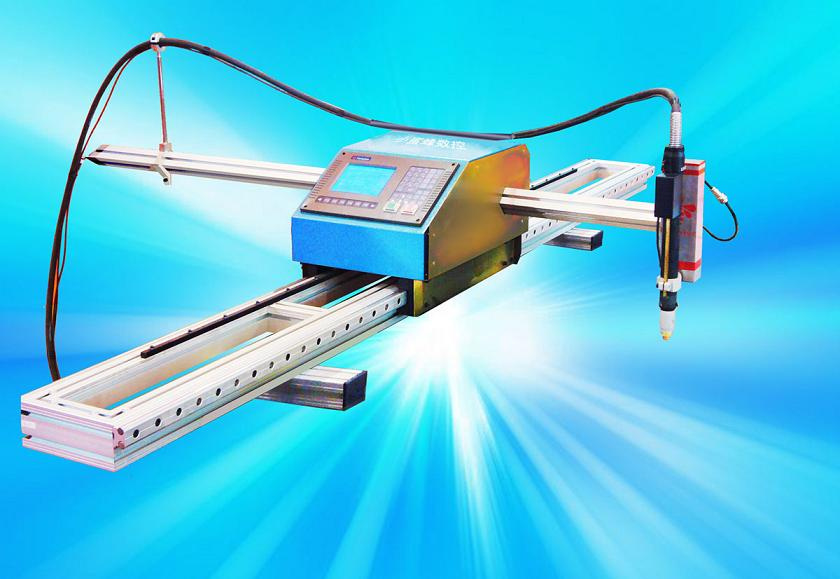

HONEYBEE portable CNC cutting machine can cut any complex profiles on metals, which reduces machining again and improves productivity. It supports both plasma cutter and oxy-fuel cutting torch With its USB port, the data transmission from a PC is as easy as downloading photos from a digital camera.

The compact design and lightweight, small size and easy to move. It is usable both indoors and outdoors. The FastCAM programming software is easily learned and supports both drawing and nesting.
Model HBST2005LCD-1200x2000D
Input Voltage 220V/110V
Power Supply Frequency 50HZ / 60HZ
Rated Power Supply 180W
LCD Display Dimension 7 Inches
Effective Cutting Width (X axis) 1200mm
Effective Cutting Length(Y axis) 2000mm
Cutting Speed 0-2500mm per minute
Oxy-fuel Cutting Thickness 6mm—150mm
Plasma Cutting Thickness 2mm—20mm
Cross Beam Length 1700mm
Longitudinal Rail Length 2500mm
Longitudinal Rail Width 196mm
Gas Pressure Max. 0.1Mpa
Oxygen Pressure Max. 1.0Mpa
Cutting Gas Oxygen+Acetylene / Propane / Methane / LPG
Plasma Power Source THERMADYNE Cutmaster A120
Plasma Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa

Dalian Huarui Heavy Industry CNC Equipment Co. Ltd is a subsidiary enterprice of DHI DCW Group Co., Ltd., integrating with scientific research, production and sales. Her scientific research and producing scale top Chinese CNC equipment manufacturers.

Our brand is HONEYBEE and main products: HONEYBEE portable CNC flame / plasma cutting machine, HONEYBEE gantry CNC flame / plasma cutting machine, HONEYBEE multi-head straight-line Band Flame CNC cutting machine, HONEYBEE bench Type CNC cutting machine, HONEYBEE zero groove cutting machine, HONEYBEE infinitely contour bevel plasma groove cutting machine. HONEYBEE Portable CNC Flame / plasma Cutting Machine is Patented product (patent No. ZL 2004 2 0113009.5 ) with advanced technology, which is uprecedented portable cutting mahcine in China.

HONEYBEE CNC cutting machines have been widely used in metal material cutting for the indurstries such as automobile, shipyard. Locomotive, petrochemical, aviation and aerospace boiler and pressure vessel. Machinery, decoration and large-size metallic signs etc.
