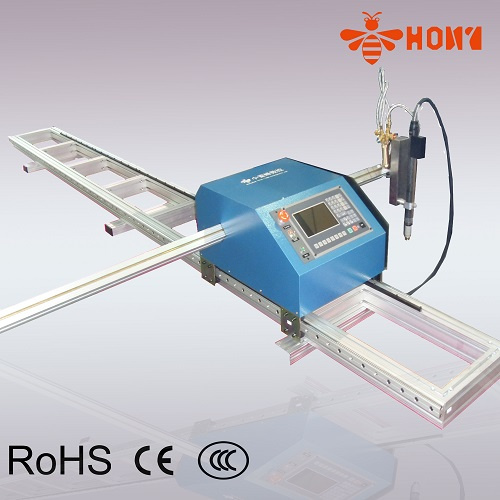

Product Specifications
| Prod Model: |
HB2008LCD-1600*3400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applications: |
Metal Cutting |
| Cutting Speed: |
0-3000mm/Min |
| Cutting Thickness: |
6-150mm |
| File Transfer: |
USB |
| LCD Screen Size: |
7 Inch |
| Programming Software: |
Fastcam |
| Cutting Mode: |
Plasma Only /Flame Only/Plasma and Flame |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description
Product features and advantge
1 Better performance ,more rigid and durable construction
2 Easy to operate,high precision.
3 Safe and save manpower
4 Flame cutting and plasma cutting ,equipped with international famous plasma power
5 Light weight and easy to move.
6 Widely applied in construction,steel structure,shipbuilding industries.
7 The machine is equiped with FastCAM programming software ,the software is easy to learn and operate .
Technical parameters:
Model |
HB2008LCD-1600*3400 |
Input power |
220v/110v |
Power frequency |
50Hz/60Hz |
Rated power |
180w |
LCD screen size |
7inch |
Host machine size |
600*449*350(L*W*H) |
X axis effective cutting |
1600mm |
Y axis effective cutting |
3400/5400mm |
Guide rail width |
345mm |
Cutting speed |
0-3000mm/min |
Cutting thickness (plasma) |
2-22mm(depend on plasma power source capacity) |
Complete machine weight |
95.5kg |
Program software |
FastCAM professional editiion |
Plasma power source |
Import plasma power source |
