Product Specifications
| Prod Model: |
RCS-700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Rcs-700 |
| Condition: |
Brandnew |
| Origin Of Place: |
Beijing, China |
| Weight: |
80kgs |
| Warranty: |
18 Months After Delivery Date |
| Delivery Time: |
Within 7 Days After Confirming The Payment |
| Certification: |
ISO13485 |
Product Description

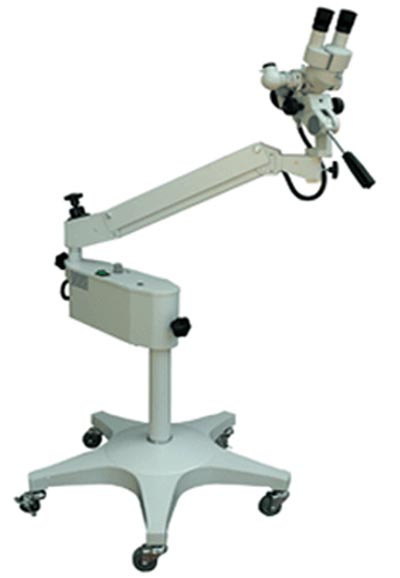

Product Name: Microscope Colposcope
Model: RCS-700
RCS-700 microscope colposcope is a precise optical instruments designed specially for the gynecologic examination and diagnosis. Because the magnification of the microscope colposcope, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly see with the instrument. The correctness of a diagnosis is enhanced significantly. RCS-700 is featured for sharp image, vide field of view, uniform illumination, adjustable brightness and easy operation. It is the essential instrument for gynecology examination.
Specifications:
Observation angle: 45 titled binocular observation unit
Magnification of eyepiece: 16X
Focus length of objective: F=230mm & F=280mm (connection screw: M58x0.75)
Working distance: 215mm & 260mm
Magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X, 5-step magnification change
Total magnification: 2.9X-21.7X
Linear field: 11mm-84mm
Beam splitter: 50: 50 beam splitter
Demonstrator: Optional, total magnification 2.1X-16.4X
TV adapter: C-mount 1/3'' CCD attachable
Photo adapter: Optional
Fine focus distance: 20mm
Balanced arm: Counterweight adjustable
Illumination system: Coaxial illumination with cold light source fiber-optic cable, 21V, 150W halogen lamp, brightness adjustable
Filter: Green filter with frame, fitted on the objective during using
Fiber-optic cable: 1300mm
Stand: Short column fitted on the 5-star foundation with 5 jaws
Table of Optical Characteristic for RCS-700A
|
| Item
| Mircoscope
| Objective focus
Length
| F=230mm
| F=280mm
| Magnification on handwheel
| 2.5X
| 1.5X
| 1X
| 0.66X
| 0.4X
| 2.5X
| 1.5X
| 1X
| 0.66X
| 0.4X
| Total magnification
| 21.7 X
| 13.2 X
| 8.7 X
| 5.7 X
| 3.5 X
| 17.8 X
| 10.8 X
| 7.1 X
| 4.7 X
| 2.9 X
| Linear field
| 11
| 18.2
| 27.6
| 42.1
| 69
| 13.4
| 22
| 33.6
| 51.1
| 84
| Resolution
| 86
| 68
| 52
| 35
| 27
| 80
| 63
| 42
| 31
| 22.3
|
|
|
|
| Item
| Demonstrator (Optional)
| Objective focus
Length
| F=230mm
| F=280mm
| Magnification on handwheel
| 2.5X
| 1.5X
| 1X
| 0.66X
| 0.4X
| 2.5X
| 1.5X
| 1X
| 0.66X
| 0.4X
| Total magnification
| 16.4X
| 10X
| 6.5X
| 4.3X
| 2.6X
| 13.4X
| 8.2X
| 5.4X
| 3.5X
| 2.1X
| Linear field
| 11.6
| 1 9
| 2 9
| 4 4.1
| 7 2.5
| 1 4.1
| 2 3.1
| 3 5.4
| 5 3.7
| 8 8.3
| Resolution
| 76
| 6 0
| 32.6
| 28
| 25
| 68.5
| 49
| 33
| 27
| 25
|
|
|
|
