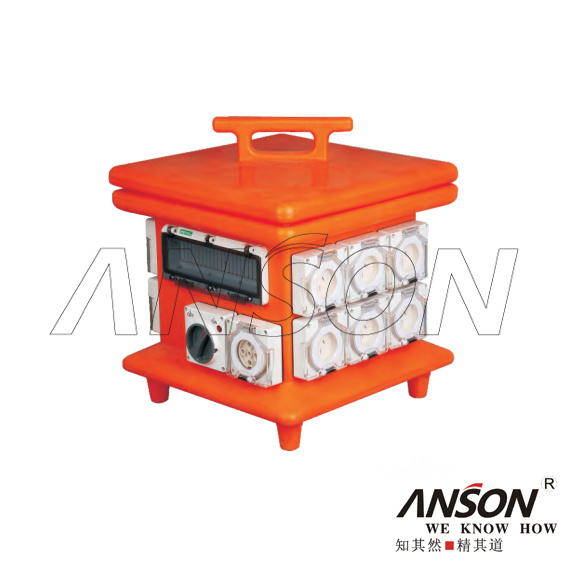

Portable Distribution Boxes Weatherproof Power Distribution Board (KLB01-32)
Product Specifications
| Prod Model: |
KLB01-32 Portable Distribution Boxes |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Klb01-32 |
| Nominal Voltage: |
220V~400V |
| Protect Rating: |
IP66 |
| Application: |
Industry |
| Pin Material: |
Brass |
| Export Markets: |
Global |
| Brand: |
Anson |
| Structure: |
Portable |
| Size: |
420*420*500 |
| Shell Material: |
PE |
| Operation Voltage: |
240V~380V |
| Shell Protection Grade: |
IP66 |
| Type: |
Power Distribution |
Product Description
Multistep Combination Socket Box :
Conform to European/International Standard EN/IEC60309-02
Qualifications And Honors:
SAA CE CB ISO9001
Confirm to EN/IEC60309-2
420*420*500
KLB01-32
Feature:
100% Safe
Economic Secure
Wide Application
Inspection:
Shanghai ANSON company have own laboratory. For avoid the quality we might have, all of ANSON product need to do the inspection before we make the product.
All of our industrial plug, industrial socket, panel mounted plug, panel mounted socket, wall mounted plug, wall mounted socket and the other product will accept the inspection such as Rainfall Test, CTI/PTI Test Temperature-Rise Test, High and Low Temperature Test, Glow Wire Test and so on. There are over 50 test programs in our laboratory to keep every Shanghai Anson product is reliable.
Application:
Petrochemical engineering, Electric power, Railway, Airport, Mine diggings, Construction site, Water treatment plant, Wharf, Hotel
Sold over the world:
Shanghai ANSON Industrial Plug and Socket are sold over the world.
Every day, we get the order from every country. Both of same company or big films all like order they need form our company. Once you have contact, we will be good friend forever, once you cooperation, we are good partner. Let's extend the marketing together, let's accelerate world's development together.

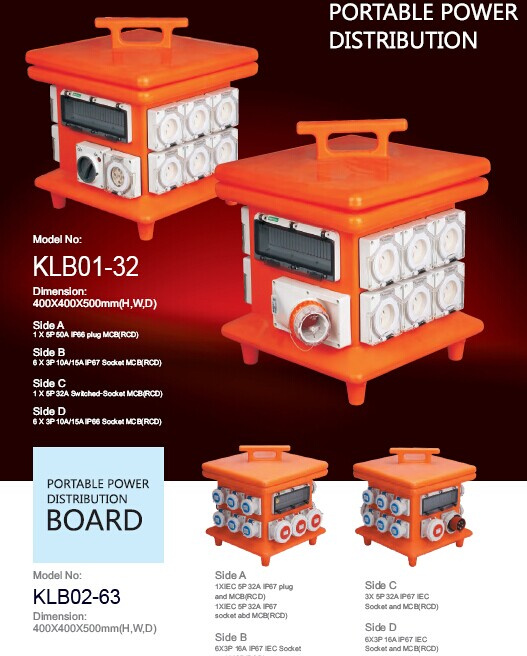

5P 32A/1pcs IP66 Waterproof Plug
5P 40A/1pcs IP66 Waterproof Plug
40A/3P/2pcs MCB RCD
Australian: 56AI 532 IP66 56SW 540 IP66
Side B:
3P 15A/6pcs IP66 Waterproof Socket
16A/1P/6pcs MCB RCD
Australian:56SO 310/315 IP66
Side C:
5P 32A/1pcs IP67 Plug
5P 40A/1pcs IP66 Waterproof Switch
63A/3P/1pcs MCB/RCD
40A/3P/1pcs MCB/RCD
Australian:56SW 540 IP66
DIN:IP67 32A
Side D:
3P 15A/6pcs IP66 Waterproof Socket
1P 16A/6pcs MCB/RCD
Australian:56SO 310/315 IP66
Can according to customer demand configuration installation:
Catalogue
Number | I the
(Amp) | U i
(Volt) | Number
of Pins | Cond. Term
Size in mm | IP
Rating | Matching
Extension
Socket | Matching Plug
Straight | | Min. | Max | | A66SO310 | 10A | 250V | 3Flat | 1.5 | 6 | IP 66 | A66P310 | A66PA310 | | A66SO315 | 15A | 250V | 3Flat | 1.5 | 6 | IP 66 | A66P315 | A66PA315 | | A66SO320 | 20A | 250V | 3Round | 2.5 | 6 | IP 66 | A66P320 | A66PA320 | | A66SO332 | 32A | 250V | 3Round | 6 | 16 | IP 66 | A66P332 | A66PA332 | | A66SO410 | 10A | 500V | 4Round | 1.5 | 6 | IP 66 | A66P410 | A66PA410 | | A66SO420 | 20A | 500V | 4Round | 2.5 | 6 | IP 66 | A66P420 | A66PA420 | | A66SO432 | 32A | 500V | 4Round | 6 | 16 | IP 66 | A66P432 | A66PA432 | | A66SO440 | 40A | 500V | 4Round | 10 | 16 | IP 66 | A66P440 | A66PA440 | | A66SO450 | 50A | 500V | 4Round | 10 | 16 | IP 66 | A66P450 | A66PA450 | | A66SO510 | 10A | 500V | 5Round | 1.5 | 6 | IP 66 | A66P510 | A66PA510 | | A66SO520 | 20A | 500V | 5Round | 2.5 | 6 | IP 66 | A66P520 | A66PA520 | | A66SO532 | 32A | 500V | 5Round | 6 | 16 | IP 66 | A66P532 | A66PA532 | | A66SO540 | 40A | 500V | 5Round | 10 | 16 | IP 66 | A66P540 | A66PA540 | | A66SO550 | 50A | 500V | 5Round | 10 | 16 | IP 66 | A66P550 | A66PA550 | | A66SO610 | 10A | 500V | 6Round | 6/1.5 | 6 | IP 66 | A66P610 | A66PA610 | | A66SO620 | 20A | 500V | 6Round | 6/2.5 | 6 | IP 66 | A66P620 | A66PA620 | | A66SO710 | 10A | 500V | 7Round | 6/1.5 | 6 | IP 66 | A66P710 | A66PA710 | | A66SO720 | 20A | 500V | 7Round | 6/2.5 | 6 | IP 66 | A66P720 | A66PA720 |
|
Shanghai Anson Electric Technology Co., Ltd, founded in 2003, after more than 10 years development, it has been grown to be a professional manufacturer & distributor of a wide variety of industrial control and protective devices, contactors, DC isolators for photovoltaic systems, weatherproof portable power distribution boards, switches and sockets, surface switches, combination switched sockets, power distribution boards, electrical enclosures, MCBs, MCCBs, AC contactors, relays and control components.
Anson enjoyed a very good reputation from our customers around the world by offering a variety of quality industrial control, protective and connectionproducts.
As a manufacturing company certified by ISO9001, our main products approved by CE, SAA, Anson electric regarded the quality, customer' S 100% satisfaction as our philosophy.
We guarantee you extremely high quality, reliability, safety, innovative drive, proximity and performance to the market and sustainability in our business are the qualities that single our brand out, this guarantee is one of the main reasons why our Anson brand is irreplaceable. We live our brand and are committed to it.
