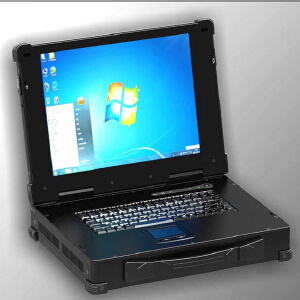

Portable Industrial Computer (CKS-1502)

Product Specifications

Prod Model:	CKS-1502
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	IPC
CPU Card Size:	Full-size Card
Screen Size:	11-15''
Case Type:	1U
Power Supply Type:	ATX
Hard Disk Rack Type:	Partition
Application:	Industrial
CPU Type:	Intel I3 3220
Touch Screen:	Optional
System Expansion Slot:	2
Installation:	Portable
Accessories:	-

Product Description

CKS-1502 is high performance price ratio product with two expansion PCI slots. Built with light aluminum alloy and integrated with all functionalities of a pc including embedded industrial motherboard. Portable, handy and extendable. Users can integrate other function modules accordingly.

small size, light & portable
embedded industrial motherboard
2 expansion PCI slots
15″high brightness LCD screen, resolution definition:1024X768
88-key keyboard, touch pad


motherboard	MINI-ITX:embedded motherboard structure
expansion slots	2 standard Half-length expansion slots(max size 230×110mm)
hardware on computer	CPU: Intel CORE 2 T7300 2.0GHz(ultimate support to T9500) memory: 2G DDRII hard disk: 500G
screen	size: 15″ TFT LCD resolution definition: 1366×768 brightness: 250cd/ visual angle: 160/120(H/V)
input devices	keyboard: slim 88-key keyboard touch pad: yes
interfaces	4 USB interfaces 2 COM 1 DVI interface 100M network interface Audio interface VGA interface
drivers	CD-ROM:- hard disk: 500G
power	input: DC13~20V output: ATX 90W
battery	-
other parameters	outer size: 400mm×300mm×80mm weight: 6Kg extended Temperature: customable (optional for -20 ºC )
verification	FCC CE
