Product Description
Interactive whiteboard
Convert any board into touch screen
Free size from 30" to 110"
CE, RoHS
Ultrasonic and infrared
Remolding a modern classroom for students! ! !
Our Eduboard interactive whiteboard is very portable, so breeze to transport. It does not have a "board", but can convert any board such as blackboard, whiteboard, wall, curtain, LCD, Plasma, rear-projection into touch screen.
Advantage:
1. Smaller, just pocket size, so for distributor and resellers, our EduBoard P-series products can help save delivery time, shipping cost, inventory;
2. Eduboard software provide you with four working modes including Mouse mode, Desktop Annotation mode, Office Annotation mode and unique D-rate book mode.
3. There is a button in stylus pen, it supports shows and hides the interactive tools palette as you want, so the teacher do not to move back and forth around the board.
4. Convert any board such as blackboard, whiteboard, wall, LCD, Plasma, rear-projection into touch screen
5. EduBoard software can capture all the details the teacher did on the board into video clips or disk files which can be shared through email or IM etc
6. Higher resolution
7. Easy embed into any frame of board and display
8. Software can support windows 7.
Specification:
1. Technology: Ultrasonic and infrared
2. Data transmitting rate: 100 points/second
3. Respond speed: 100 Hz
4. Resolution ratio: 1mm
5. Positional accuracy: 1mm
6. Pen operating time: 50h if pen works continuously
7. Communication: USB cable(available), wireless(come soon)
8. Working temperature: -10° C~50° C
9. Store temperature: -20° ~70
10. Size: Free size from 30" to 110"
Certificate: CE, RoHS
Warranty: 3 years
Interactive whiteboard
Education equipment
Convert any board into touch screen
|

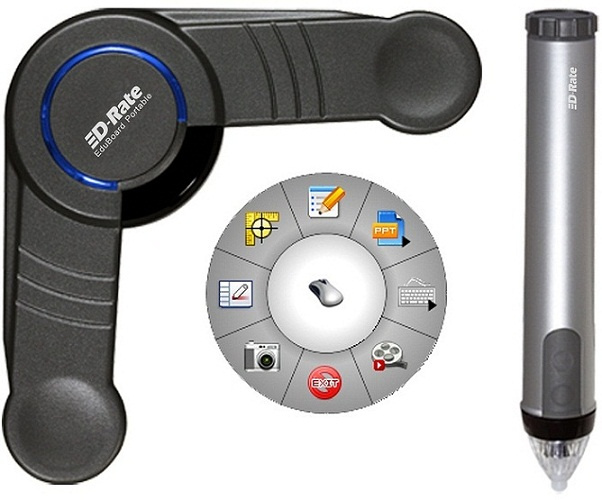

Receiver |
Receiver Fixing |
♦ Magnetic cup: Attaching the Mounting bracket with the magnetism.
♦ Suction cup: fasten the Receiver by suction cups.
♦ Command adhesive: To remove the suction cups and plaster stickup adhesive
♦ Screw: To permanently fasten the receiver |
|
Weight & Size |
Weight: 80g
Size30mm*130mm |
|
Power Supply |
Only USB Power supply and the LED indicator light to work |
|
Interactive stylus |
Mouse Function |
♦ Pen Tip: Left mouse function
♦ Button A: Right mouse function
♦ Button B: Interact Palette Tools |
|
Interactive Stylus Function |
By clicking B button to switch form the four different work mode; Mouse Mode, Blackboard Writing Mode,
Desktop Annotation Mode and PowerPoint Mode. |
|
Interact Palette Tools |
Can be shown, hidden, and dragged at any point any time. |
|
Power Supply |
One AA battery only. |
|
USB Cable |
Connect the EduBoard Receiver and computer. |
|
Capability |
Valid size |
Min: 20-inch; Max: 110-inch. ( diagonal) |
|
Surface compatible |
Normal whiteboard, Blackboard, LED Screen, Plasma, Rear Projection and even Wall. |
|
Software |
♦ Make annotation upon the interface of any other third party software, change color, thickness, width and shape.
♦ Save all the elements as the format of *PDF,*JPEG,*TIFF,*BMP,*HTML and print out on upload.
♦ Spotlight, Snapshot, Recorder, Handwriting Recognition, and PowerPoint annotation.
♦ Be compatible with Microsoft NetMeeting and Live Meeting. |
D-Rate (Beijing) Technology Co. Ltd is a global provider of seamless collaboration technologies and products for the education, distance learning, presentation, audio/visual conferencing, and office application markets. Founded by one former Intel R&D director and other experts in product development, manufacture, sales, business and finance, D-Rate has been recognized for its capability to solve complicated technical problems, bring innovative ideas into commercial quality products and focus on customer needs. Headquartered in China Silicon Valley -- Zhongguancun, D-Rate commits to offering home-grown innovations, leading-edge core technologies, reliable quality, competitive price and prompt after-sales service to world-wide customers.
With the break-through ultrasonic-infrared positioning technology, D-Rate mass produced its digital whiteboard products in 2007.
For education market, EduBoard™ Portable interactive whiteboard can upgrade, in conjunction with a digital projection, your existing flat surface into interactive whiteboard within few minutes.
ThinkBoard™ Is a brand of D-Rate's digital copy board products for corporate market, which can work with existing writing surfaces to capture meeting notes as they are created or real-time share with people all over the world.
Based on D-Rate's embedded components, OEM customers can assembly their own cost-effective embedded interactive or copy whiteboards with traditional whiteboard.
D-Rate is also looking for industry partners to incorporate the technology into compelling new interactive presentation and display products.
With customer orientation as one key corporate values, D-Rate offers 5-year warranty for all its products, quick response (within eight working hours), fast delivery (one week at most), effective custom clearance process and third party credit guaranty program.
