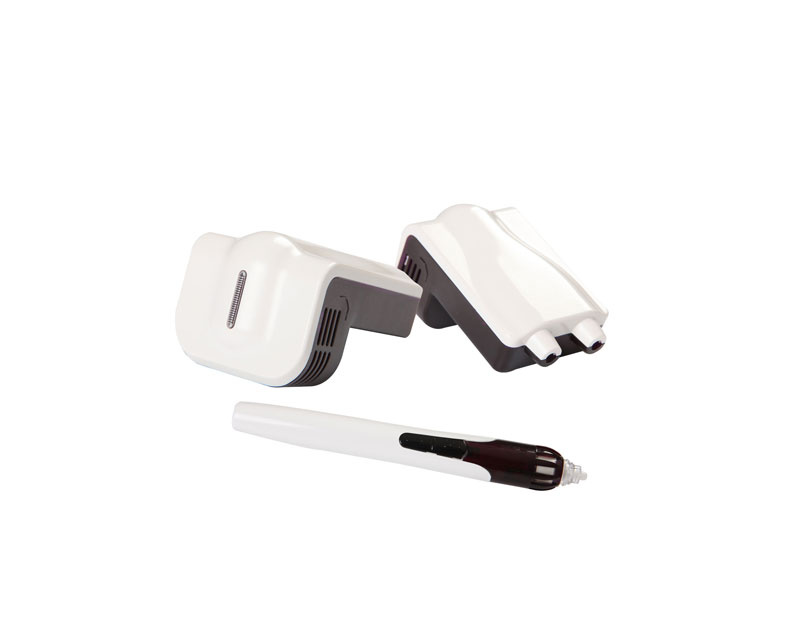

Product Specifications
| Prod Model: |
HT-WB10BX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Whiteboard |
Product Description
Ultrasonic and Infrared virtual pressure operation technology
Sampling Frequency: 60 KHz
Sensor: 2PCS (Left, Right)
Infrared Sensor: 1PCS (built in left sensor)
Power: USB 5V/100m A
Data acquisition chips (built in left senor)
Core CPU 32bit
64K Flash memory UDP (Ultrasonic digital processor)
2 OP-AMP adapters
Writing pen: Ultrasonic transmission sensor, 40KHz pressure film
With USB charging cable (70cm)
Size(HxDia): 130x15 mm
High Performance:
--Adopting dedicated ASIC chipset
--Fast response time
--High sensitivity for pen movement
--High resolution
--No jittering
Excellent writing quality:
--The smooth writing & touch feel
--Brush effects without programming
--Virtual pressure featur
--Minimizing eye-strain
--The state-of-art noise filtering
High Usability:
--100 inches working area
--The most cost-effective solution
--High durability
--Fully compatible with MS standard
--Bundled powerful board software
--Rechargeable pen
--Contents recording & playback
|
Part |
Item |
Description |
|
Receiver sensor |
Effective working area |
100 inches (Ideally 120 inches) |
|
Technology |
IR + Ultrasound technology |
|
USB Device Class |
Microsoft Standard pen device |
|
Sampling frequency |
70Khz |
|
No. of receiving sensors |
2 units |
|
IR receiving sensor |
1 unit |
|
Power |
USB 5 Volt / 100mA |
|
Digital pen |
Power |
3.7V / 180mAH |
|
Battery |
Rechargeable Ri-polymer battery |
|
Recharging terminal |
Earphone typed rechargeable jack |
|
Button |
2 buttons. Left button, eraser button |
|
Battery monitoring |
2 step LED Indicator |
|
Full recharging time |
1 hour |
|
Continuous pen operating time |
20 hours |
|
ower saving mode |
Automatic power saving mode after 30 sec idle time |
|
USB recharging cable |
USB + Earphone typed Jack (70cm) |
|
Dimension (Height x Diameter) |
130mm x 15mm |
|
Interface |
Computer |
IBM PC/AT or IBM PC compatible |
|
(with CD-ROM drive) |
|
CPU |
Intel Pentium or above or |
|
Intel CPU compatible TYPE |
|
Interface |
USB 2.0 full speed or USB 1,1 |
|
Operating system |
Windows XP/ VISTA / Windows 7 |
|
RAM |
512MB or more |
|
Environment |
Humidity |
0-90RH +35º C |
|
(Non condensing) |
|
Recommended operating temperature |
10º to +40º C |
|
PenOnPC |
Calibration SW |
|
Bundled SW |
Ink Note |
Window Journal |
|
(for Windows XP /Vist a / 7 Home Basic Edition ) |
|
Portable Board |
Board software |
|
Selection Pen type/ Line /Thickness / Eraser |
|
Drawing / Ruler / Background templates / Snapshot / Print |
|
Multi-page / windows navigation |
|
Curtain hiding / Magnify / Recording |
|
and many others |
