Product Specifications
| Prod Model: |
F-35L |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Description

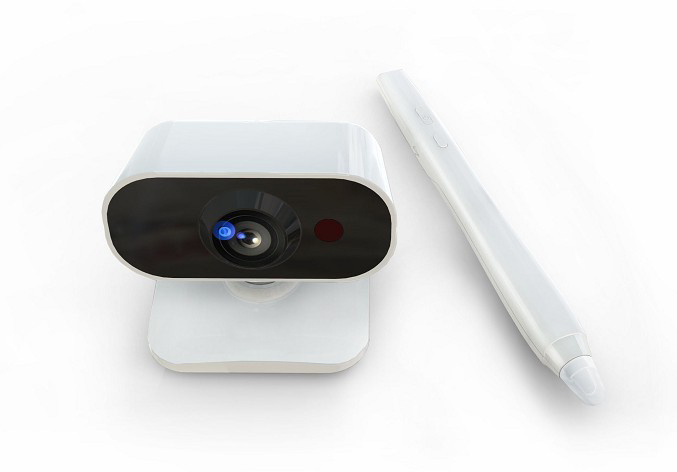

F-35L is the third generation of portable interactive whiteboard which almost integrates all the market's requirements. It's smaller and more beautiful with brand new appearance design. What's more, it breaks up the traditional installation method and can be fixed onto the projector with gum in the bottom of the base. With automatic calibration function, it will be easier to use.
Features
A. Multi-Users Writing
It can support 64 users writing simultaneously
B. Various features:
Strong adaptability
Easy installation
Supporting big screen to 150"
Intense light-resistant
C. Various installation ways:
Put on the desk or projectors
Ceiling-mount installation
Installed on the general tripod
D. USB Cable can be extended to 24M (MAX).
E. Modularization solution
Enables other products to integrate interactive function easily.
F. Quickly disassembled
The storage and maintenance are very easy.
G. High response speed
H. Plug and Play
USB interface
HID form of communications,
Direct USB Power Supply
Specification
| Signal Receiver |
| Movement Detection | CMOS Infrared Technology |
| Active Area (max projection size) | 150 inch diagonal |
| Active Area (horizontal angle) | 33 +/- 2 degrees |
| Active Area (vertical angle) | 0-30 degrees |
| Calibration Technology | Photoelectric Positioning |
| Active Distance (from projection screen) | 1.5-5m |
| Connectivity Interface | 1 x USB Cable (connection distance up to 24 m) |
| Power Requirement | 4.5 ¨C 9 W (from USB port) |
| Power Consumption | < 1.5 W |
| Net Weight | 81g |
| Extendable Pointer |
| Movement Detection Technology | LED Light |
| Power Requirement | 3 V CR12 3A x 2 |
| Trigger methods of pointer | Button |
| Pen Body Weight | 85g (with battery) |
| Pointer Extendable Length | 58cm (length) |
| Net Weight | 61g |
| E-Pen |
| Movement Detection Technology | LED Light |
| Power | Built-in Lithium Battery, Rechargeable |
| Pen Body Dimension | 17.5cm (length); 1.0-1.7cm (diameter) |
| Net Weight | 25g |
| System Requirements |
| OS Required | Microsoft Windows XP , Win7, Win8, Linux OS |
| Processor Type | Intel Pentium or above |
| RAM Size | 128 MB |
| Min Hard Drive Space | 30 MB |
| Detecting Size |
| Projection Size | Distance between Receiver and Projection Surface |
| 56 inch | 1600mm |
| 68 inch | 2100mm |
| 70 inch | 2300mm |
| 75 inch | 2500mm |
| 85 inch | 2800mm |
| 92 inch | 3200mm |
