Portable Leeb Hardness Tester (HARTIP3210)

Name: Portable Leeb Hardness Tester (HARTIP3210)
Brand: china-manufacturer-directory.com
SKU: 667152382
Availability: InStock
Rating: 4.9 (87 reviews)

Supplier:	Sino Age Development Technology
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HARTIP3210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Type:	Leeb Hardness Tester
Measuring Range:	HLD
Application:	Metal
Standard:	ISO

Product Description

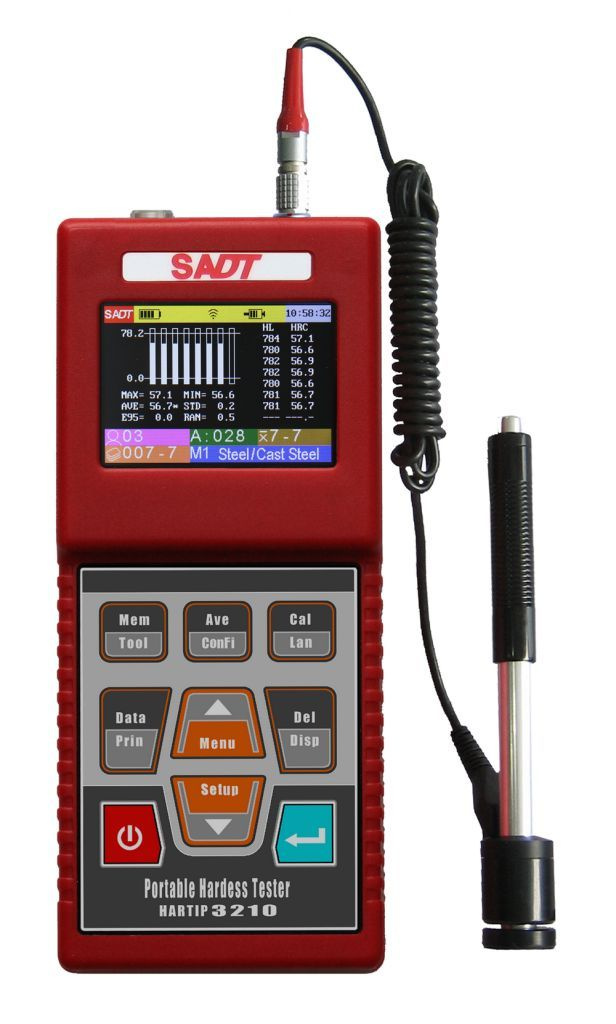

HARTIP 3210 is a new generation of Leeb hardness tester with more advanced technology and features.

The tester applies our new patent dual-coil sensor technology which makes the tester more accurate than old previous model. All impatct device (probe) are no need to setup impact direction. HARTIP 3210 can work with both analogy impact device and wireless RF probe.

The measuring values can be downloaded to PC and printer by wireless or by cable.

The HARTIP 3210 also can be powered by USB power supply without battery via PC cable.

Advantages:

Wireless digital / cable analogue compatible
No need to setup different impact direction
Higher accuracy with dual-coil technology
TFT large color LCD with pixel 320 x 240
Multi color style - fittable under sunshine
Multi display mode - statistics, bar graph, etc.
Multi save mode for data
Multi statistics calculation
Print online and screen copy printout
Sound reminder
Real date and time
Recalibration for unified or individual scale
Operator, part no., procedure no. record

Specifications:

SADT HARTIP 3210
Principle	Leeb hardness measurement
Accuracy	±0.3% @ HL=800, Repeatability: ±2HL
Display	2.8" 320 x 240 TFT color LCD - fittable under sunshine
Hardness scale	HL / HRC / HRB / HB / HV / HS / HRA /σb
Measuring range	HL170-960 / HRC1.3-78.2 / HRB1.2-139.7 / HB28-1027 / HV45-1221 / HS4.0-112.1 / HRA1.3-88.5 / σb(rm)118-3315N/mm2
Impact device	r/f wireless probe D / standard cable probe D DC / D+15 / C / G / E / DL (Optional)
r/f communication distance	10m in space
r/f frequency	2.4GHz
Impact direction	Universal angle type
Materials and curves	11 common metal materials, 60 conversion curves
Memory	25000 data
Statistics	Single group analysis -- mean, max., min., extreme deviation, standard deviation, coefficient of kurtosis, coefficient of skewness, percent of pass, column diagram, normality distribution test and uniform distribution test Double group analysis-- significant difference test for mean value, standard deviation, percent of pass and distribution
Re-calibration	Calibration for unified or individual scale
Indicator	Upper limit / Lower limit / low battery / buzzer warning / date and time
Communication interface	2.4G wireless / USB / RS232 / Bluetooth(optional)
Continous working time	>40 hours
Power supply	1.5V AA alkaline battery x 4 / 1.2V nickel-hydrogen rechargerable battery x 4 / 3.7VLi-ion rechargeable battery x 4 / USB power supply
Working environment	-10°c~+45°c
Dimension (mm)	195 x 84 x 38
Net weight (g)	550
Standards	Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
