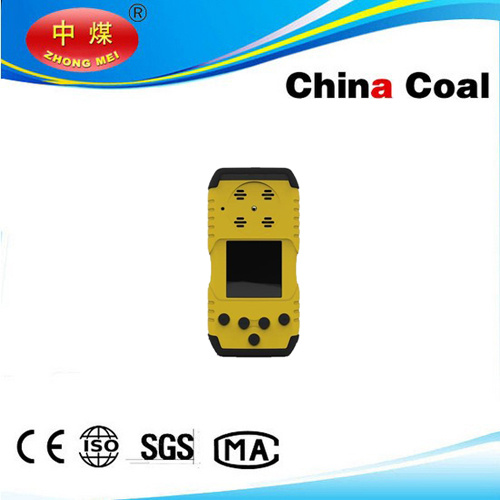

Portable Multi Gas Detector 4 in 1 Gas Analyzer

Name: Portable Multi Gas Detector 4 in 1 Gas Analyzer
Brand: china-manufacturer-directory.com
SKU: 699414252
Availability: InStock
Rating: 4.7 (117 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 100-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	126mm66mm33mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Gas:	Co,H2s,O2,Ex Any Four Gas Composite
Sampling Methods:	Diffusion Type
Range:	Co: 0~1000ppm H2s:0~100 Ppm O2: 0~30%Vol Combustib
Sensor:	O2 /H2s / Co: Plug-in Electrochemical Sensor Combu
Accuracy:	3%Fs
Response Time:	10s
Repeatability:	1%
Zero Drift:	1%
Display:	Alphanumeric Large LCD Displays The Real Time Gas
Dimensions:	126mm66mm33mm
Application:	Car/Motorcycle
Usage:	Auto
Certification:	CE

Product Description

Product Introduction
portable multi gas detector 4 in 1 gas analyzer
1) Used original imported sensor. The four sensors can be combined according to customer required gas type.
2) LCD dot matrix display, support both English and Chinese operating menu.
3) It is able to select gas concentration unit of ppm or mg/m3.
4) Adjustable preset two-stage alarm level.
5) Optional data storage and download function.
6) Powered by rechargeable battery with big capacity which can support a long working period.
7) With a clip in back makes it be easy to carry during working.
8) Packed by a safe and beautiful aluminum alloy box.
Main Parameter

Test gas	CO,H2S,O2,EX any four gas composite
Operating & Storage Environment	Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa
Sampling method	Diffusion type
Detecting Range	CO: 0~1000ppm H2S:0~100 PPM O2: 0~30%vol Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL
Sensor	O2 /H2S / CO: plug-in electrochemical sensor Combustible gas (LEL): plug-in catalytic combustion sensor
Alarm Type	low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Resolution--++	0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Accuracy	3% F.S
Response time	10s
Repeatability	1%
Zero drift	1%
Display	Alphanumeric large LCD displays the real time gas concentration and alarm stage
Backlight	Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
Self-checking Function	Self-checking Battery power, display, sensor, hardware failure
Explosion-proof	EXiaIICT4
Protection grade	IP65
Power Supply	Rechargeable lithium battery
Weight	211g
Dimensions	126mm66mm33mm
