Product Specifications
Prod Model: |
7HP115 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Type: |
AC |
Connection: |
Plug In |
Usage: |
Laptop |
Product Description

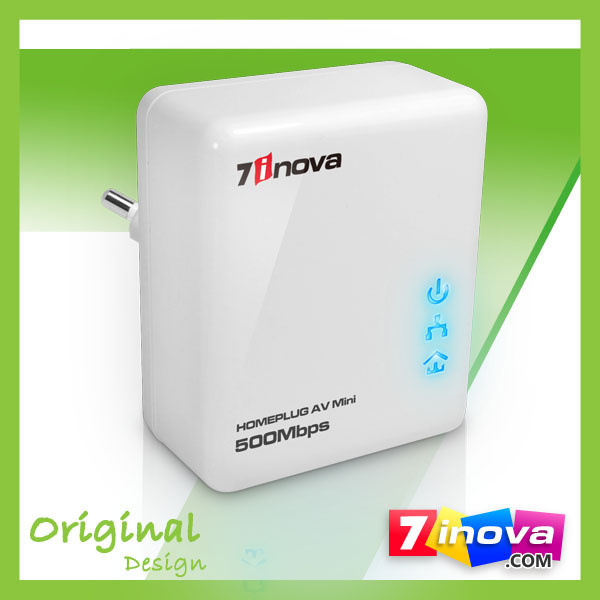

Portable Powerline/ Homeplug AV Ethernet Adapter with 500Mbps
Features:
1. Connect a computer, HDTV, VoIP or gaming console. Just plug it in and you're ready to go.
2. Plug 'n' Play: No new wires, no software installation, no configuration required
3. 500Mbps transfer speed & QoS, perfect for HD IPTV streaming
4. One button Reset/Security Press to secure your network
5. Instant indication of PLC network bandwidth through LED
6. Advanced encryption technology to ensure data security on your PLC netw
7. Energy saving technology, savings up to 60%
Technical Specifications:
Standards: Powerline: IEEE 1901/HomePlug AV
Ethernet: IEEE 802.3 10/100 Auto MDI/MDIX
Energy Saving: EuP Compliance
Protocol: TCP/IP, IGMP, QoS CSMA/CA
Modulation Technology: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and
ROBO Modulation Scheme
Data Transfer rate: Up to 500Mbps over powerline
Transmission Range: Up to 200m over powerline
Frequency band: 2MHz to 68MHz
Security & Protection: 128-bit AES encryption (enabled with Simple Connect button)
Power Requirement: AC 100 ~240V, 50~60Hz
Power Consumption: Normal: Less than3 Watt
Power save: Less than 1 Watt Average
Operating System: Windows 98SE/ME/2000/2003/XP/Vista, Windows7, Linux, Mac OS
Temperature: Operating: 0° To 40° C
Non-Operating: -25° To 70° C
Humidity: Operating: 10%~90%, Non-condensing
Non-Operating: 5%~90%, Non-condensing
Application:
Audio & Video transmission across the home for multiroom services
Multiple High Definition (HD) and Standard Definition (SD) video programs
PC files and applications sharing
Voice over IP calls
Printers, NAS and peripherals sharing
Remote diagnostic and management of inhome PLC network
High Speed Internet access sharing
Network connection of online gaming console
Network camera for distant home video surveillance
