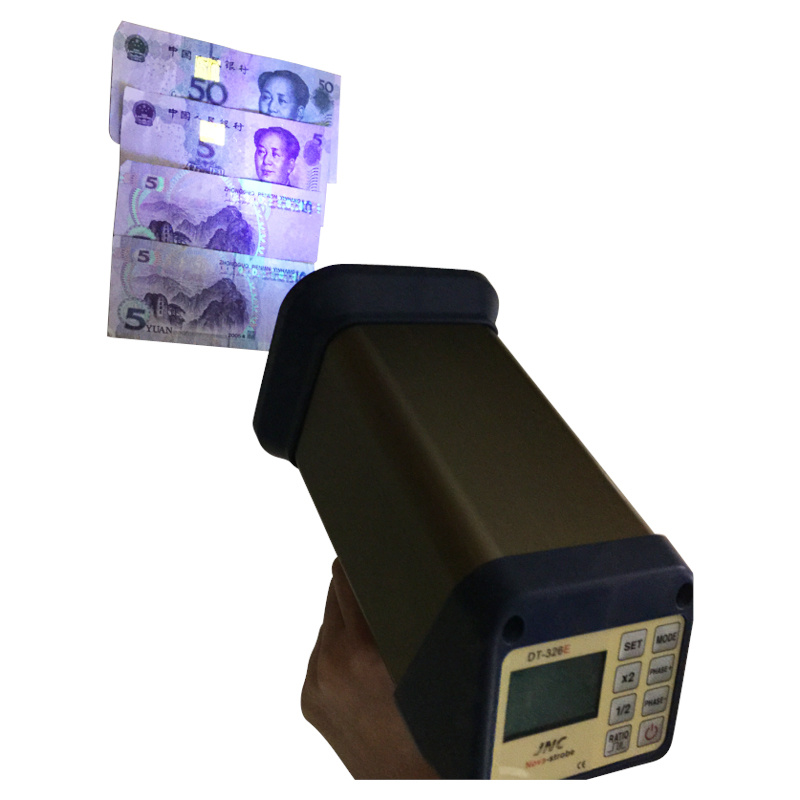

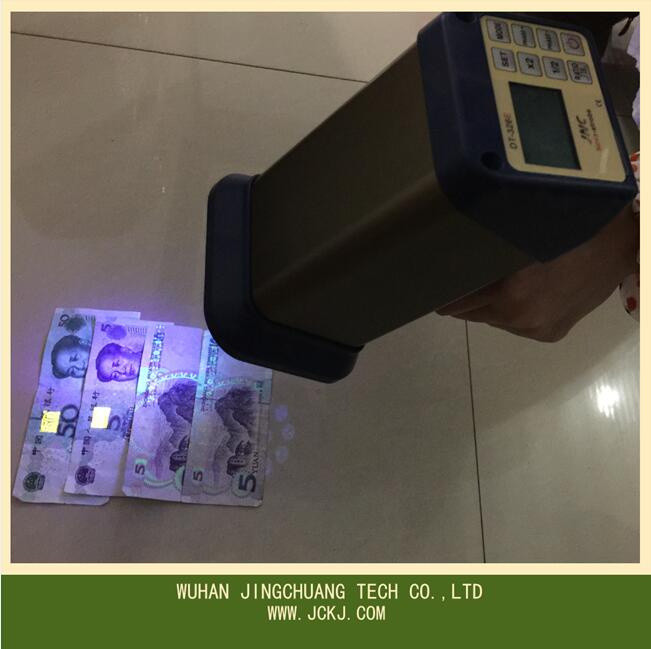

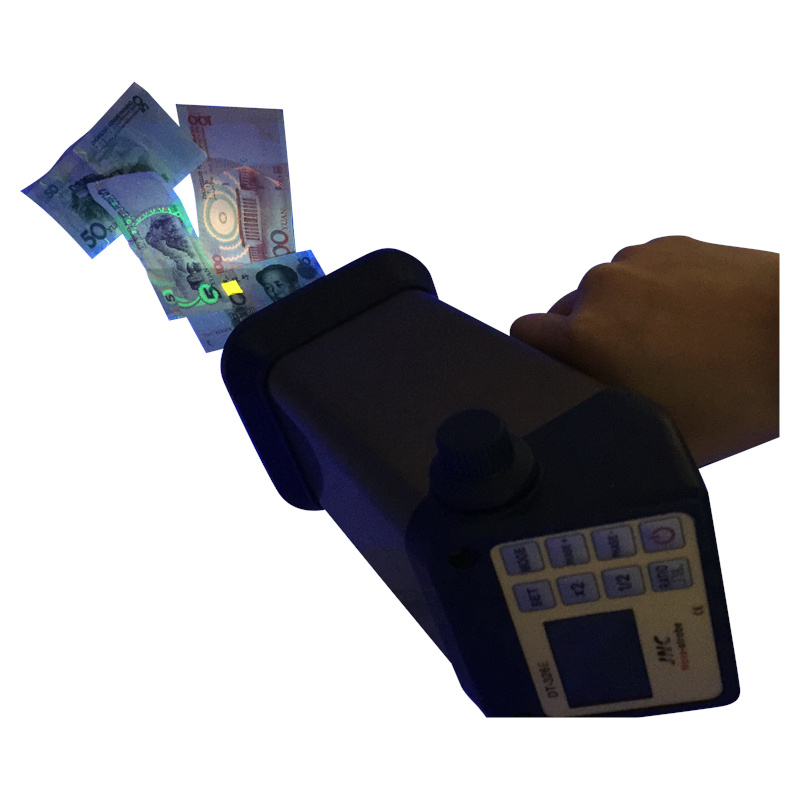

Portable Rechargeable UV LED Stroboscope for Printing Monitoring
Product Specifications
| Prod Model: |
DT326U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Printing, Commercial, Label, Packaging |
| Light Spec.: |
UV LED |
| Battery Spec.: |
3000mA |
| Battery Charging Time: |
5 Hours |
| Battery Operation Time: |
15 Hours |
| Warranty: |
Two Years |
Product Description
Features l Lightweight, easy for portabilityl Powered by rechargeable batteries, so can be used anywherel Ultra wide flash range 60-120,000 FPM/Min.l Highest accuracy and most stable flash ratel Accepts external trigger input and provides synchronizing pulse outputl Germany German OSRAM UV LEDl Wave length range: 365nm, 395nm, 420nml Easy-to-read LCD displayl Phase shift for best view and flash photographyl Easy-to-operate controls include flash rate adjustment, 2x, divide-2 and phase adjustl Instant double and half-rate flash selection for error-free readingl Two-Year Warranty Technical Parameters | Type | Portable and Rechargeable |
| Power Type | AC Powered or Rechargeable Battery |
| Battery Type | Lithium rechargeable Battery |
| Battery Spec. | DC16V, 3000MA |
| Battery Recharging Time | About 5 hours (have indicating light) |
| Working Time | 14 hours after each charging |
| Total Power | About 90W |
| Wave Length | 365nm, 395nm, 420nm |
| UV Light Spec. | German OSRAM UV LED (9 pcs) |
| Trigger Mode | Internal and External |
| Setting Accuracy ( Vibration) | 0.01%±1 digit |
| Resolution Setting (Vibration) | 60.0-12000FPM 0.1FPM |
| 12000.1-120,000FPM 1 FPM |
| 1-200HZ 0.01HZ |
| 200.1-2000HZ 0.012HZ |
| Flash Frequency Range | 60-120,000 FPM/min. |
| Product Size | 203mm*110mm*192mm |
| Net Weight | 900g |
| Packaging Size | 265mm*265mm*145mm |
| Gross Weight | 2.8KG |
Strobe as modern industrial field widely used a kind of testing instrument, its precision can achieve high speed movement under the control of online still, so as to help detect personnel to visual inspection, the production line of products is suitable for packaging and printing, textiles, machinery manufacturing, chemical, optical, medical and other industries.
Wuhan the jingchuang technology Co., Ltd is located in wuhan east lake development zone, is a concentration of strobe and image visual system research and development, production, sales for the integration of high-tech enterprises, has a complete stroboscopic production management system, the main products include xenon lamp strobe, LED strobe, stationary multigang strobe, UV anti-counterfeiting testing strobe, image analysis online detection system, etc.
As high and new technology enterprise, the jingchuang technology Co., Ltd.Wuhan sign industry-university-institute cooperation agreement with many universities, deepen the integration of production, study and development, continuous product research and development, highlight the transformation of scientific and technological achievements, and gradually forming enterprise core independent intellectual property rights, has obtained a patent for invention and utility model patents, exterior patent and computer software copyright.Which LED the new energy and ultraviolet security detection technology has reached the international leading level, the company the more countries such as Britain and Germany, well-known enterprises to establish long-term supply and demand.
In order to further enhance the influence of the products in the international market, wuhan the jingchuang technology Co., Ltd.Held at home and abroad to actively take part in a large international packing and printing machinery exhibition.At the same time, the company set up foreign trade platform, efforts to build international leading brand.
