Product Specifications
| Prod Model: |
02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range Of Elements: |
Mg to U |
| Testing Object: |
Solid, Liquid, Powder |
| Content Range: |
Ppm~99.99% |
| Analysis Method: |
Energy Dispersive X-ray Fluorescence Analysis |
| Testing Time: |
3-30 Seconds |
| Element: |
Computer Multi Element Analyzer |
Product Description

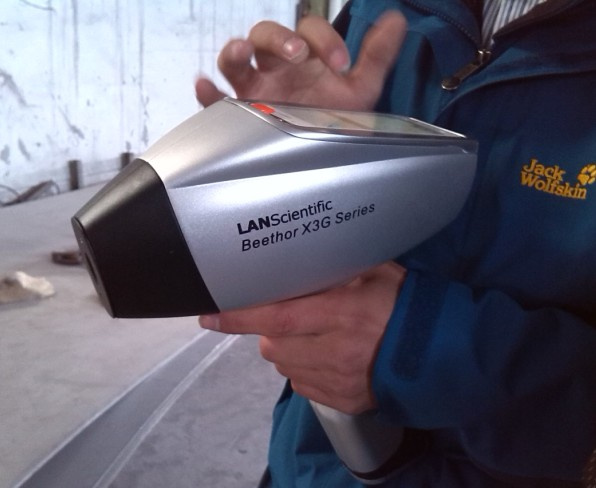

Offer Portable scientific instrument for mining content analysis(coltan ore analyzer, gold mineral tester, portable copper analyzer, portable mineral analyzer, spectroscopy instrument, elemental analyzer instrument, trace element analyzer)
Technical Parameters:
1. Model: The latest EDX analyzer-X3G XRF series.
2. Analysis method: Energy dispersive X-ray fluorescence analysis method.
3. Measuring range of elements: Mg to U.
4. Simultaneously detect elements: Simultaneously detect tens of elements.
5. Processor and RAM: CUP: 667MHz, RAM: 256M, Maximum expanded storage: 32G, Standard configuration: 2G, can store large amounts of data.
6. Content range: Ppm~99.99%.
7. Testing time: 3-30 seconds.
8. GPS, WiFi: Built-in system.
9. Battery time: Lithium battery, which can be charged, with maximum capacity of 7800mAh, can continuously work for 8 hours; Equiped with wide voltage(110V-220V) general adapter, can work under alternating current.
10. Testing object: Solid, liquid, powder.
11. Detector: 25mm2 0.3mil, SDD detector.
12. Detector resolution: Lowest resolution can be 139eV.
13. Excitation source: 40KV/100 microampere-AG anode window miniature X light tube and high voltage source.
14. Collimator and filter: Collimator of 4.0 or 2.0 diameter, automatic switch of 6 types filter groups. 12 kinds of groups, world's most compound mode, can satisfy various kinds of samples testing.
15. Video system: HD camera.
16. Screen: TFT-LCD touch screen, resolution 640*480.
17. Detection limit: Lowest detection limit accounts to ppm level.
18. Testing window: 12mm. 20. Safety: Self-contained password manager mode.
19. Gas charging system: Helium charging at ordinary pressure system.
20. Data transmission: Digital multi-channel technology, SPI data transmission, quick analysis, high counting rate, waterproof miniature USB, which can be connected to desktop computer.
21. Humidity: ≤ 90%.
22. Temperature: -20° C~+50° C.
23. Size: 236mm*300mm*97mm(L*H*W).
24. Weight: 1.8Kg(with battery), 1.5Kg(without battery).
Suzhou Lanscientific Instrument Co. Ltd.
Mobile: +86-18962124052
Suzhou Lanscientific Instrument Co., Ltd. is a high-tech enterprise specialized in research, manufacture and sales of handheld XRF spectrometers. It is located in High-Tech District, Suzhou City. And we not only possess first-rate XRF analyzers technical professionals at home and abroad, we also have abundant RD ability and advanced service concept and management model. We mainly produce handheld energy dispersive X-ray fluorescence analyzers. At the mean time, we keep close cooperation relationship with worldwide relative professional research institutes and enterprises to follow the cutting-edge technology and theory of international XRF analysis in real time.
Our company summarizes the experience and lessons in developing this instrument over years and conducts industrialized RD deeply to high technology products on the basis of absorbing international advanced technology, so that various technical performance index all can reach international similar products level. Beethor X3G Mining Analyzers can be applied in any industry needs to do content analysis of elements and chemical compound from Na (Sodium) to U (Uranium), such as building materials (cement, glasses, ceramics), metallurgy (steel, non-ferrous metals), oil (microelements like S, Pd and so on), chemical industry, geological mining, commodity inspection, QC and even human microelement inspection etc. So it is the reliable tool for macro and micro analysis.
