Portable Self-Centering Metabo Pipe Cutter

Product Specifications

Product Description

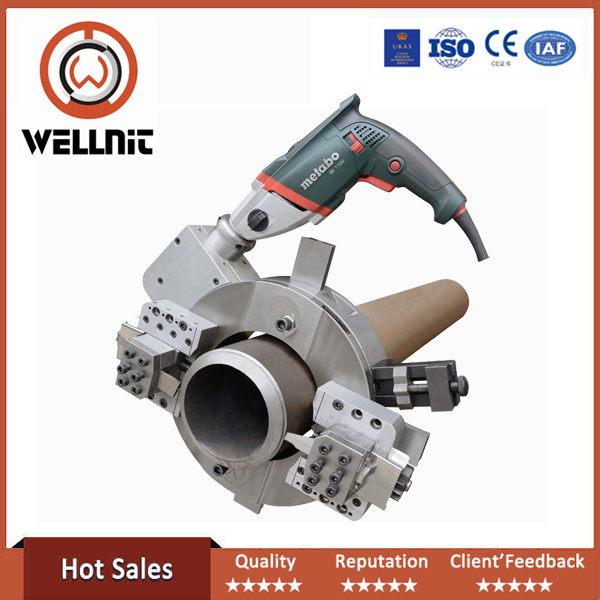

Portable Self-Centering METABO Pipe cutter

Product Show

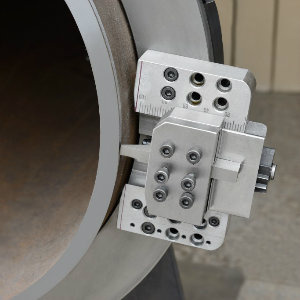

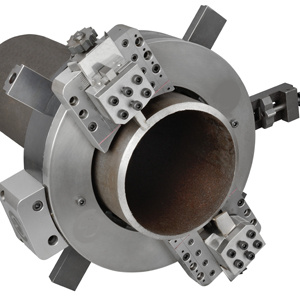

Portable Self-Centering METABO Pipe cutter

This series adopt high strength and precision split frame ring structure , apply for cut and bevel work for different pipe , especially for batch working of cutting and beveling , get the high efficiency.

There are the following advantages:

• Adjustable speed
• Self-centering , no need adjust the concentricity and perpendicularity manually.
• Easy set-up , operation and maintain
• Cutting and beveling finished at the same time , high working effective
• Cold working , no spark , won't make the material affected

• Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
  SOCE-89	Φ25-89	3/4''-3''	≤30mm	Adjusted
  SOCE-168	Φ50-168	2''-6''
  SOCE-230	Φ80-230	3''-8''
  SOCE-275	Φ125-275	5''-10''
  SOCE-305	Φ150-305	6''-10''
  SOCE-325	Φ168-325	6''-12''
  SOCE-377	Φ219-377	8''-14''
  SOCE-426	Φ273-426	10''-16''
  SOCE-457	Φ300-457	12''-18''
  SOCE-508	Φ355-508	14''-20''
  SOCE-610	Φ457-610	18''-24''

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)
