Supplier: | Gester Instruments Co., Ltd. |
---|---|
Price: | US $ 200-500/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | TES-1350A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: | Tes-1350A |

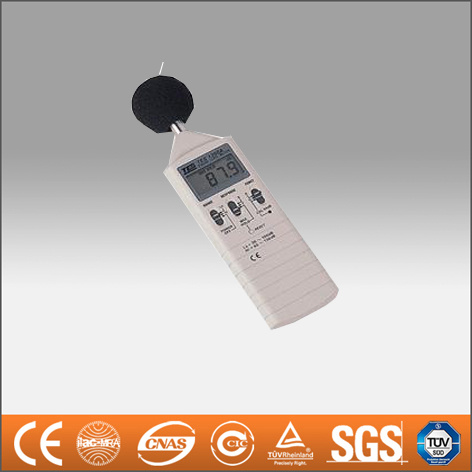

Product: | Sound Level Meter |
Sound Level Meter: | Portable Sound Level Meter Testing Equipment |
Standard applied | IEC 651 Type2 |
Range | A LO (Low) - Weighting: 35- 100dB A HI (High) - Weighting: 65-130dB C LO (Low) - Weighting: 35- 100dB C HI (High) - Weighting: 65-130dB |
Resolution | 0.1dB |
Frequency Range | 31.5Hz to 8KHz |
Accuracy | ±2dB |
Dynamic Range | 65dB |
Frequency Weighting | A, C |
Time Weighting | Slow & Fast |
Maximum Hold | Decay < 1dB/3min |
Microphone | Electret condenser microphone |
Calibration | Electrical calibration by using the internal oscillator (1KHz sine Wave at 94dB) |
Auxilitary Output | AC conditioned, 0.65Vrms corresponding to each range step, impedance: 600 W DC conditioned, 10mV/dB (nominally) |
Operating Condition | 0 to 40 < 80% R. H. |
Storage Condition | -10 to 60 < 70% R.H. |
Display | 3 1/2 digitals |
Power Supply | one 9V battery |
Size | 240mm(L)x68mm(W)x25mm(H) |
Weight | 210g |
Accessories | Instruction Manual, 9V Battery, Carrying Case, Screwdriver, Windscreen. |
