Portable Therminal Receipt Printer with Msr Track 1 2 3
Product Specifications
| Prod Model: |
HCC320M-0121 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Paper Supply Method: |
Easy Paper Loading |
| Printing: |
Direct Thermal Line Printing |
| Characters Per Line: |
Fonta:32CPL,Fontb:42CPL |
| Resolution: |
203dpi(8dots/Mm) |
| Cutter Type: |
Manual Tearing |
| Usage: |
Receipt Printer and Ticket Printer |
| Interface Type: |
Serial,USB,Bluetooth |
| Type: |
Thermal Printer |
| Max. Paper Size: |
58mm |
Product Description

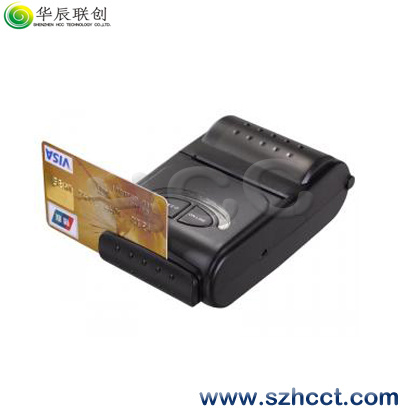

58MM Mobile Thermal Printer-- HCC320M
Feature
Small size, light weight, stable performance and easy using. 20 laser scan lines in 5 directions
Mobile printer can work outdoor.
Wide usage: Mobile police system, logistic system, mobile POSSelf-developed decoder chip & hardware decode
Easy-Loading paper
Printing speed up to 60mm/sec.
Lithium Rechargeable Batteries with High Capacity.
Mobile printer with MSR could read kinds of Stripe Card.
Mobile printer can work under many mobile equipments.
Small size, light weight, stable performance and easy using.
Mobile printer can work outdoor.
Wide usage: Mobile police systems, logistic system, mobile POS.
Serial, USB and Bluetooth interfaces.
Multiple languages receipt option
Error beeper.
Receipt head logo.
| Printing | Direct thermal line printing |
| Paper Supply Method | Easy Paper Loading |
| Characters Per Line | FontA:32CPL,FontB:42CPL |
| Characters Size | FontA:12×24,FontB:9×17 |
| Resolution | 203dpi(8dots/mm) |
| Print Width | 48mm |
| Printing Speed | 60mm/sec(MAX) |
| Cutter Type | Manual tearing |
| Paper | Paper Type: Thermal Paper
Paper Diameter: 40mm(MAX)
Paper Width: 58mm |
| Receive Buffer Size | 4KB |
| Interface | Serial,USB,Bluetooth |
| Barcodes | 1D:CODE39,CODE93,CODE128,EAN-8,EAN-13 |
| Battery | Type: Lithium-Ion
Output:DC7.4V/Capacity:1100mAh / 1300 mAh optional |
| Batter Charger | Input AC110~240V 1.0A
Output DC9V 1A |
| Operating Temperature | 0ºC~50ºC |
| Storage Temperature | -10ºC~60ºC |
| MCBF | Electric Life:100,000,000 pulses
Wear Life:Paper feed length Approximately 50 Km
Battery:500 Cycles Rechargeable |
| MSR | Auto 1/2/3 Track(Option) |
| Dimensions(W×D×H) | 78 x125 x 38 mm(No MSR)
78 x132 x 38 mm(With MSR) |
| Weight | 250g |
