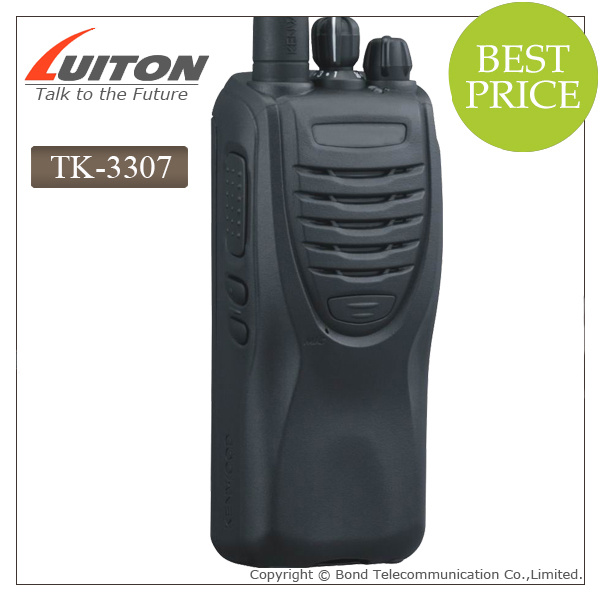

Bond Telecom Co., Ltd. >> Portable Two Way Radio Tk-2307/3307 Walkie Talkie

Portable Two Way Radio Tk-2307/3307 Walkie Talkie

Name: Portable Two Way Radio Tk-2307/3307 Walkie Talkie
Brand: china-manufacturer-directory.com
SKU: 694632612
Availability: InStock
Rating: 4.8 (45 reviews)

Supplier:	Bond Telecom Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	TK-2307/3307
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF/UHF
Channel Number:	16
Output Power:	4W
Dtmf:	with
Mdc-1200 Signalling:	with
Style:	Handheld
Talk Range:	8km Max
Type:	Handheld
Display:	Without Display
Usage:	Home, Commercial
Battery Type:	Li-ion Battery
Working Frequency Range:	VHF/UHF

Product Description

Portable two way radio TK-2307/3307 walkie talkie:

Features:
1. Frequency: 136-174MHz, 400-480MHz
2. Channel: 16 channel
3. Outpower: 4W
4. Built-in VOX function
5. Voice prompt(5 languages)
6. Built-in Voice Scrambler
7. FleetSync plus DTMF, QT and DQT signalling
8. MDC-1200 signalling compatible, including Stun/Revive and Radio
9. Time-OutTimer(TOT)
10. Busy Channel Lockout(BCLO)
11. Dimension: 54 x 122 x 33.8 mm (with the KNB-29N batteries)
12. Weight: About 360 g
13. Programmable function keys
14. Independent settings per channel (VOX, compander, scrambler)
15. Built-in voice-inversion scrambler
16. Enhanced audio quality
17. Compact design
18. Lone worker

General		TK-2307	TK-3307
Frequency coverage (Varies according to version)		136–174 MHz	400-440,440-480MHz
Number of channels		16 ch/16 banks
Channel spacing (Varies according to version)		25kHz / 12.5kHz	25kHz / 12.5kHz
Frequency Stability		±2.5ppm(-30~+60°C)
Weight	Radio only	160g
	With KNB-29N	360g
Dimensions(W×H×D)		54 x 122 x 33.8 mm (with the KNB-29N batteries)
Battery		1100/1300mAh (Li-ion Battery)
Operating Temperature Range		-30~+60°C -10°C ~ +60°C when KNB-29N in use
Antenna Impedance		50Ω

Transmitter	TK-2307	TK-3307
RF output power	5W/1W	4W/1W
Modulation Type	65dB
Modulation Wide/Narrow	16KØF3E/11KØF3
FM Noise Wide/Narrow	45/40dB
Microphone Impedance	2kΩ
Max Fr. Deviation	TIA≤5kHz
Audio Distortion	≤5%

Bond telecom Co., Ltd. is a sincere company which is specializedin producing & exporting two way radios, we have been developing analog & digital portable, vehicle, CB radios, repeaters & accessories.

We have been in this line from 2005 with rich experience. We attend professional electronics fairs all over the world, especially Hong Kong electronics fair spring & autumn editions by hktdc, Thailand, Indonesia, Russian & Brazil exhibitions.

We gained high reputation & orders from regular & new customers on the fairs; Our city is neighbouring to xiamen, nearly to shenzhen & Hong Kong airports, we have convenience transportation for land, sea & air shipping.

Specializes in producing and marketing professional FM radios, with VHF, UHF, marine, CB band, mobile and portable status. Some models are with CE, RoHS and FCC approval. We have been in this field more than ten years.

Our main markets are South America, Asia, Europe, North America and the Middle East. Our products have won a good reputation in those markets.

We can supply OEM and ODM services. Please feel free to contact us for further information.
