Product Specifications
| Prod Model: |
TDS-100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Size: |
Dn15-6000mm |
| Liquid Temperature: |
-40~160 Degree Celsuis |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Accuracy: |
≤±0.1% |
| Measuring Media: |
Liquid |
| Principle: |
Ultrasonic Wave |
Product Description

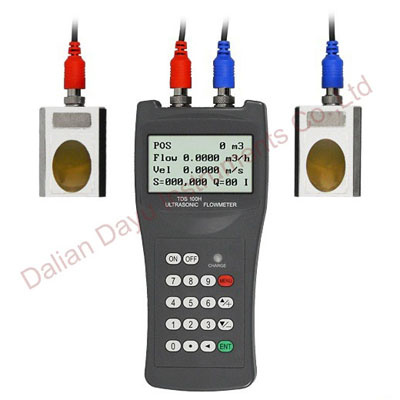

The portable ultrasonic flow meter is characterized by low cost, high portability, high accuracy and non-intrusive. Due to the non-intrusive nature of the clamp-on sensor, there is no pressure drop, no moving parts, no leaks, and no contamination.
1. Accuracy: 1.0%
2. Repeatability: 0.2%
3. Response Time: 0-999 seconds, user-configurable
4. Velocity: ± 0.03 ~ ± 105 ft/s (± 0.01 ~ ± 30 m/s), bi-directional
5. Pipe Size: 1/2" ~ 240" (DN15 ~ 6, 000mm)
6. Rate Units: Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
7. Totalizer: 7-digit totals for net, positive and negative flow
8. Liquid Types: Virtually all clean liquids
9. Liquid Temperature: -40~160 degre celsuis
10. Security: Setup lockout. Access code needed for unlocking
11. Display: 4X16 English letters
12. Communication Interface: RS-232.
13. Transducers: Clamp on type transducers.
14. Transducer Cable: Standard 2X30' (10m), optional 2X1, 500' (500m)
15. Power Supply: 3 AAA Ni-MH built-in batteries. When fully charged it will last over 10 hours of operation. 90-230VAC for the charger
16. Data Logger: Built-in data logger can store over 2, 000 lines of data
17. Manual Totalizer: 7-digit press-key-to-go totalizer for calibration
18. Housing Material: ABS. Aluminum alloy protective case
19. Case Size: 3.9"X2.6"X0.8" (100X66X20mm)
20. Handset Weight: 1.2 lbs (514G) with batteries
Accuracy:
|
better than 1%
|
Repeatability:
|
0.2%
|
Power Supply:
|
Ni-MH built-in Battery
|
Totaliser:
|
Positive/negative/net flow
|
Display:
|
4 Line LCD
|
Transducer:
|
Clamp on type
|
Output:
|
RS232
|
